Silicon Drift Detector (SDD) for Standard Applications 基础版SDD
Simplicity and high spectroscopic accuracy – that’s what you get with our Base SDDs for standard applications. A variety of detector modules with energy resolution values of 127 eV FWHM @ Mn-Kα and easy operation are available at excellent prices. They cover active areas ranging from 5 mm2 to 30 mm2.
简单性和高光谱精度——这就是我们的标准应用基础SDD所能提供的。各种探测器模块的能量分辨率值为127eVFWHM@Mn-Kα，操作简单，价格低廉。它们覆盖的有效面积范围从5平方毫米到30平方毫米。
Excellent Performance at Excellent Prices
High spectroscopic accuracy with energy resolution values down to 125 eV FWHM @ Mn-Kα

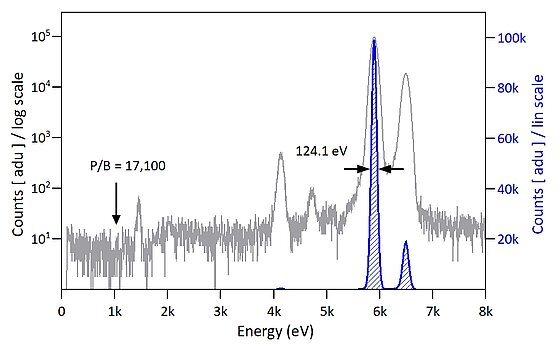

Low spectral background with P/B values up to 20 000 and P/V values up to 4 000

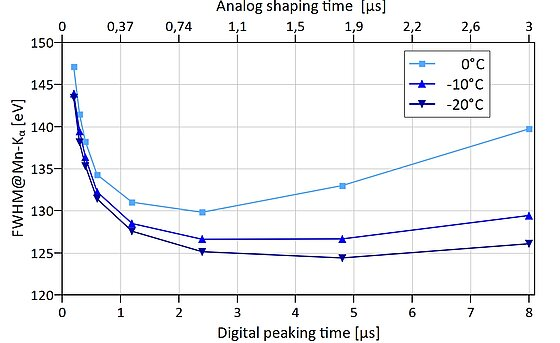

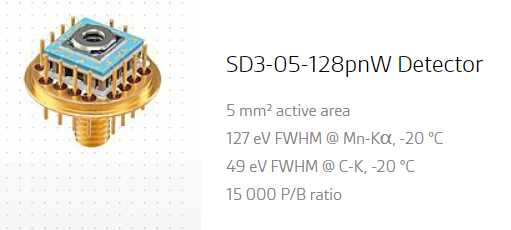

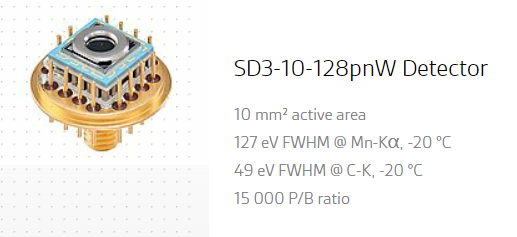

Very good energy resolution even at short processing times, especially for our droplet shaped SD3 detectors

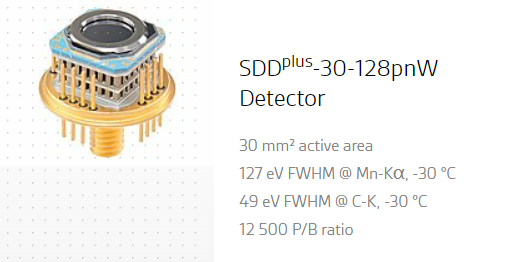

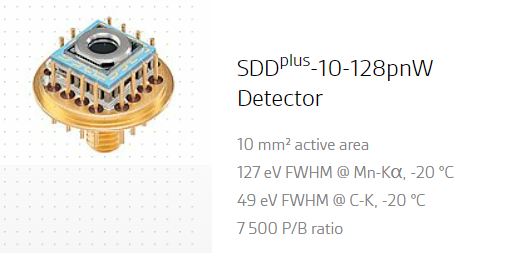

Our SDDplus detectors are also available with larger active areas
All detector modules are available with either Beryllium Window or Ultra Thin Polymer Window (UTW) and Planar Thin Window (PTW) for light element detection
物美价廉，性能卓越
能量分辨率高光谱精度值低至125 eV FWHM@Mn-Kα
低光谱背景下， P/B值高达20000，P/V值高达4000
即使在很短的处理时间内，也有很好的能量分辨率，尤其是对于我们的液滴形SD3探测器
我们的SDDplus探测器也可用于更大的活动区域
所有探测器模块均提供铍窗或超薄聚合物窗（UTW）和平面薄窗（PTW），用于光元件探测
