PAVE-Mate® II气密电气连接器，PAVE气密密封和双向密封可以在任意方向或两者方向上密封压力和真空。对于超过300 psi（20 bar）的压力，如果改变图纸上显示的压力方向，请与销售工程师联系。
PAVE-Mate® II气密电气连接器一侧预接线，满足客户要求，并为压力或真空隔板的另一侧提供配对的连接器插头。任意一侧都可以根据客户需求配置，具有多种气密连接器安装样式，包括VS或军规卡口螺母O形圈面密封、ISO QF KF NW DN CF ASA真空法兰、NPT、SO直螺纹/O形圈、活塞O形圈密封、激光焊接或定制法兰，用于低压和高压（+1k psi）及真空（高达10^-8 Torr），工作温度范围为-200℃至150℃，具体取决于所选的O形圈化合物。氦气泄漏率通常在10^-7cc/sec至10^-9cc/sec之间。特殊订购的26482连接器的配对插头在配对条件下也可以达到IP67或IP68等级。

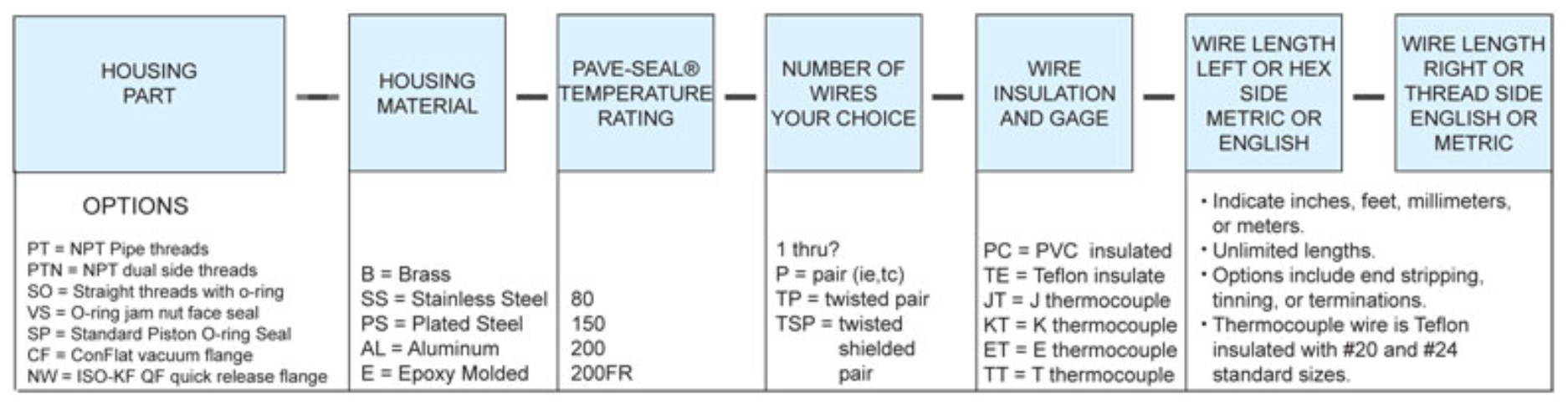

可以指定任何标准的商业或军规连接器版本，包括基于MIL-DTL-38999、-26482和-5015的所有接触安排，小型Glenair Mighty Mouse、Omnetics以及所有其他类型。所有气密贯通连接器都使用镀金或镀银铜合金接触点和绝缘镀层绞合铜导线，以实现最佳的电性能和电流等级。请参阅下方的当前设计图纸列表。
| 安装接口 | MIL-C-序列号 # Ref | 总针脚数/线数 | PAVE 描述代码, 外壳 & 线缆 | 线缆 1 | AWG # | Wires 2 | AWG # | 图纸号码 # |
|---|---|---|---|---|---|---|---|---|
| ¾” o-ring face seal | 38999 hermetic connector | 13 | VS12L-AL-150-13-TE22-27508P-48 See Quick Ship List | 13 | 22 | 1666 | ||
| 7/16″ straight thread | 26482 | 2 | SO7L-SS-150-2-TZ20-3112P-48 | 2 | 20 | 4005 | ||
| 13.61mm face seal | 2 | VS7-ZA-80-2-TZ26-BUTTON SWITCH-13.8 | 2 | 26 | 4155 | |||
| 13.61mm face seal | submersible | 2 | VS7-ZA-80-2-TZ26-BUTTON SWITCH-13.8 | 2 | 24 | 4094 | ||
| 13.61mm | 2 | VS7-ZA-80-2-TZ24-Button Switch-12 | 2 | 24 | 3206 | |||
| 29mm piston o-ring | Hummer transmission seal | 2 | SP23Y-E-150-2-TE16-COIL5-DIN72585 | 2 | 16 | 16 | 2416 | |
| 1-⅝” o-ring face seal | 5015 hermetic | 2 | VS22-SS-150-2-TEE4-3102P-12 | 2 | 4 | 3690 | ||
| 1 5/8″ o-ring face seal | 5015 | 2 | VS22-SS-150-2-TZ4-SS3102P-36 | 2 #4 | #2 | 5682 | ||
| 1 1/2″ o-ring face seal | 5015 | 2 | VS32-SS-150-2-TE2-3102P-40 | 2 | 2 | 5734 | ||
| KF25 NW25 | 26482 | 3 | NW25-SS-150-3-16-3112E12-3P-P | 3 | 16 | 1694 | ||
| ½” -20 UNF-2A SAE | 3 | SO8-SS-150-3-#20CONX-SC, solder cups | 3 | 20 | 4249 | |||
| ½” NPT | 26482 hermetic connector | 3 | PT8-SS-150-3-20-16SC-3112S | 3 | 20 | 1211 | ||
| 1½” o-ring face seal | 26482 | 3 | VS8L-SS-150-1TSP-TE20-3112P-60 | 3 | 20 | 5053 | ||
| 1¼” o-ring face seal | 5015 | 3 | VS18-SS-150-3-TE12-3102P-24 | 3 | 12 | 4883 | ||
| 1″ o-ring face seal | 5015 | 3 | VS15L-SS-150-1-PVC3C12-31029-9 | 3 | 12 | 4892 | ||
| 1″ o-ring face seal | 5015 hermetic connector | 3 | VS15L-SS-150-3-TEE12-3102P-48 | 3 | 12 | 1409 | ||
| 1-⅝” o-ring face seal | 5015 | 3 | VS22-SS-150-3-TEE12-3102S-48 | 3 | 12 | 5376 | ||
| 1⅜” o-ring face seal | glove box wall receptacle | 3 | VS22-E-150-3-15A power cord receptacle | 3 | 16 | 0267 | ||
| 1 7/8″ o-ring face seal | UL, cUL | 3 | VS26-E-150-3-20A NEMA 5-20R 20 amps | 3 | 12 | 5071 | ||
| 2.75″ Conflat flange | 4 | CF275/PT12-SS-150-4-TZZ10-TNM-360 | 4 | 10 | 5220 | |||
| 7/16″ -20 UNF-2A | 26482 | 4 | SO7L-SS-150-4-TE20-3112P-48 | 4 | 20 | 4406 | ||
| ½” piston o-ring | Nano connector | 4 | SP8M-E-150-4-HYT28-18-PLUG mates to 4970 | 4 | 28 | 4989 | ||
| ½” piston o-ring | Omnetics micro | 4 | SP8M-E-150-4-HYT28-18-RCPT | 4 | 28 | 4970 | ||
| 1⅝” face seal | 5015 hermetic | 4 | VS22-SS-150-4-TEE12-3102P-6 | 4 | 12 | 3562 | ||
| ¾” SAE, 5k psi | USB type B | 4 | VSO12L-SS-150-1-miniBF-USB cable-24 USB | 4 | USB | 3645 | ||
| ½” o-ring face seal | Fischer DG Series | 4 | VS8SX-SS-150-4-TZ24-6- QD | 4 | 24 | 3807 | ||
| ½” o-ring face seal | Fischer DG Series | 4 | VS8SX-SS-150-4-26-SC-QD | 4 | 26 | 2873 | ||
| 1.25″ o-ring face seal | 26482 | 4 | VS18-SS-150-4-HTTG14-3112P-240 | 4 | 14 | 5049 | ||
| Custom flange mount | Hirose hermetic | 6 | FL1741-SS-150-3TP-TE26-RM12BRD-15 | 6 | 26 | 1745 | ||
| NW25 flange | 26482 hermetic connector | 6 | NW25-SS-80-6-20-3112E10-6P-P | 6 | 20 | 1695 | ||
| ¼” NPT | 26482 hermetic connector | 6 | PT4S-SS-150-6-20-3112P(SOC) | 6 | 20 | 0949 | ||
| ½” SAE | custom submersible connector | 6 | SO8M-SS-150-6-24-QD-SC | 6 | 24 | 1922 | ||
| 9/16″-18 UNF-2A | 26482 | 6 | SO9X-AL-200-6-TZ22-3112P-24 | 6 | 22 | 5415 | ||
| ¾” o-ring face seal | 38999 hermetic connector | 6 | VS12-SS-200-6-TE22-27508P-24 | 6 | 22 | 4213 | ||
| ¾” o-ring face seal | 38999 hermetic connector | 6 | VS12-AL-150-6-TE22-27508P-8 | 6 | 22 | 2168 | ||
| 14,30 mm | Mighty Mouse | 7 | FL9-SS-150-7-TZ28-FLB-12 1500 psi | 7 | 28 | 5305 | ||
| 1″ o-ring face seal | 38999/4 hermetic connector | 7 | VS15L-SS-150-7-20-SC-40FB99PN | 7 | 20 | 1537 | ||
| Electron beam laser weld | 26482 | 8 | FL24-AL-200-8-TE12-3470LP-20 laser weld | 8 | 12 | 4889 | ||
| NW50 flange | 26482 hermetic connector | 8 | NW50-SS-150-4/1/3-TE12/14/16-72-771L18S | 5 | 12 | 3 | 16 | 3543 |
| ½” NPT | 38999/3 hermetic connector | 8 | PT8-SS-150-8-TE26-99920P-36 | 8 | 26 | 3168 | ||
| 1¼” o-ring face seal | 26482 hermetic connector | 8 | VS18-SS-150-8-PC16-3112P-24 | 8 | 16 | 3263 | ||
| 1¼” o-ring face seal | 26482 hermetic connector | 8 | VS18-SS-150-8-TEE16-3112P-24 | 8 | 16 | 2666 | ||
| 1⅝” o-ring face seal | 5015 hermetic connector | 8 | VS22-SS-200-8-TEE12-3102P-24 | 8 | 12 | 1335 | ||
| 1⅝” o-ring face seal | 38999/3 hermetic connector | 8 | VS22-SS-200-8-TEE8-99920P-300 & 265FJ8S-8-TEE8-120 | 8 | 8 | 2203 | ||
| ¾” o-ring face seal | custom submersible | 9 | VS12L-AL-150-3/6-18/26-RCPT-20 | 3 | 18 | 6 | 26 | 3575 |
| 1″ NPT | BIW connector | 10 | PT16-SS-150-10-EE16-126-BIW12# | 10 | 16 | 2934 | ||
| ¾” piston o-ring | MM | 10 | SPF12-AL-150-10-TE24-MMPPP-12, 1500 psi | 10 | 24 | 4250 | ||
| 1⅙” SAE | 26482 hermetic connector | 10 | SO16-SS-80-10-TE20-3112S-360(NP) | 10 | 20 | 2555 | ||
| 1″ o-ring face seal | 26482 hermetic connector | 10 | VS15L-SS-80-10-TE20-3112P-36 | 10 | 20 | 1585 | ||
| 2¾” Conflat flange | 38999/2 hermetic connector | 11 | CF275-SS-150-11-TE12-18-27508P(V) | 11 | 12 | 2432 | ||
| KF25 NW25 flange | Hirose | 11 | NNW25L-AL-150-9/2-TE28/26-116T-HR30 | 9 | 28 | 2 | 26 | 4993 |
| NW KF 25 flange | Hirose | 12 | NW25-AL-150-9/2-TE28/26-36-HR30 | 9 | 28 | 2 | 26 | 4551 |
| 22.2mm piston o-ring | Mighty Mouse | 12 | SPF14-AL-150-3/2/1-TSP22/PC14/USB-2M803-23/9/36 | 3 TSP #22, 2 #15, 1 USB2 | 5364 | |||
| NW25 flange | 38999/2 hermetic connector | 13 | NW25-SS-150-13-22 | 13 | 22 | 3283 | ||
| KF NW 50 flange | 38999 series 3 | 13 | NW50-SS-150-13-TZ22-99926P-8T/20S inline | 13 | 22 | 5526 | ||
| 1″ piston 0-ring | AMP plastic connector | 13 | SP16E-N-150-13-PC22-MOLEX-1 | 13 | 22 | 2865 | ||
| 1″ o-ring face seal | 38999/4 hermetic connector | 13 | VS15L-SS-150-13-40FB35PC-SC | 13 | 22 | 1542 | ||
| 1⅝” SAE | 5015 hermetic connector | 14 | SO22-PS-105-14-PC16-3102S-54 NP | 14 | 16 | 548 | ||
| ⅝” o-ring face seal | 38999/1 submersible | 16 | VS10-ss-150- | 15 | 24 | 1 | coax | 1456 |
| 38.3mm o-ring face seal | 38999/3 hermetic connector | 16 | D38999/23Y*-E-150-6/10-RG179/TZ24-P247PS1 | 16 | 20 | 2635 | ||
| 1⅝” o-ring fae seal | 38999/4 hermetic connector | 16 | VS22-SS-150-16-RG316-240-40FG1 | 16 | rg316 | 3199 | ||
| 1⅝” o-ring fae seal | 38999/4 hermetic connector | 16 | VS22-SS-150-16C-RG179-240-40FG | rg179 | 2887 | |||
| 66mm piston o-ring | 38999 Series 3 | 16 | SPF43-AL-150-16-TEE16-99920P-12 | 16 | 4000 | |||
| 1¼” piston o-ring | custom hermetic connector | 17 | SP20-E-150-16/1-COAX/TE24-#22P-18 | 16 | 1 | coax | 2948 | |
| 1¼” o-ring face seal | 26482 hermetic connector | 18 | VS18-SS-150-18-TE20-3112P-120NP | 18 | 20 | 1672 | ||
| 1¼” o-ring face seal | 26482 hermetic connector | 19 | VS18-SS-150-19-TE20-3112S-120NP | 19 | 20 | 1607 | ||
| 1″ o-ring face seal | Mighty Mouse | 19 | VS15L-SS-150-19-TEE22-72-2M803P | 22 | 5629 | |||
| NW50 flange | 26482 hermetic connector | 21 | NW50-SS-150-15/6-TE20/TE16-72-771L22S | 15 | 20 | 6 | 16 | 3542 |
| NW50 flange | 26482 hermetic connector | 21 | NW50-SS-150-21-TEE16-72-771L22S16 | 21 | 16 | 3544 | ||
| ¾” SAE | 38999/4 hermetic connector | 22 | SO12L-316SS-22-TE26-20KC35SN-40 | 22 | 26 | 1393 | ||
| 1″ o-ring face seal | 38999/4 hermetic connector | 22 | VS15L-SS-150-22-TE22-180-40FC35PN | 22 | 22 | 1539 | ||
| 1″ o-ring face seal | 38999/4 hermetic connector | 22 | VS15L-SS-150-22-TE22-180-40FC35SN | 22 | 22 | 1541 | ||
| 1¼” piston o-ring | Custom AMP solder cup | 26 | SPF20L-AL-150-26-20-PC01-SC | 26 | 20 | 2608 | ||
| 1.25″ o-ring face seal | 26482 | 26 | VS18-SS-150-26-20-3112P-SC | 26 | 20 | 5048 | ||
| 1¼” o-ring face seal | 26842 hermetic connector | 26 | VS18-SS-150-26-TEE20-3112P-36NP | 26 | 20 | 1876 | ||
| Epoxy bonded | 26483 hermetic connector | 27 | PCB 27 PINS NICOMATIC | 27 | 30 | 2506 | ||
| NW50 KF50 | 38999 Series II | 28 | NW50-SS-150-18/8/2-TE22/18/16-27466P-36 | 18 | 22 | 10 | 18 | 4952 |
| 2 1/2″ o-ring face seal | DVI dual link | 29 | VS32-SS-150-1-P562006-DVIDF-69DVIDM | 29 #28 | 28 | 5685 | ||
| NW50 KF50 | 38999 Series II | 31 | NW50-SS-150-31-TE24-27466S-36 | 31 | 24 | 4951 | ||
| ½” o-ring face sel | nano | 32 | C64-AL-150-32-32-C64-1 nano | 32 | 32 | 3831 | ||
| 1″ NPT | 26484 hermetic connector | 32 | PT16-SS-200-10TSP-TE20-3471P-96 | 32 | 20 | 1995 | ||
| 25.1mm piston o-ring | custom submersible connector | 37 | PLUG-E-150-18/1-COAX/TE16-#22P | 37 | 22 | 3298 | ||
| 1½” o-ring face seal | 5015 hermetic connector | 37 | VS32-SS-150-37-TEE16-36-3102P | 37 | 16 | 4815 | ||
| 2 1/2″ o-ring face seal | 5015 | 37 | VS32-SS-150-37-TEE16-36-3102S | 37 | 16 | 5032 | ||
| 1⅞” o-ring face seal | 26482 hermetic connector | 40 | VS26-SS-200-41-20TPS-3112P-300 & MS3475L2>0-20TPS-120 | 40 | 20 | 2206 | ||
| 1½” NPT | 26482 hermetic connector | 41 | PT24-PS-150-41-TE20-3112P-72 | 41 | 20 | 1751 | ||
| 1⅝” o-ring face seal | 26482 hermetic connector | 41 | VS22-SS-150-41-20-3112S-48 | 41 | 20 | 1769 | ||
| 2 1/2″ o-ring face seal | 5015 | 48 | VS32-SS-150-48-TEE16-3102S-24 1500 psi | 48 | 16 PTFE | 5663 | ||
| 1½” NPT | 26482 hermetic connector | 55 | PT24-PS-150-55-TE24-3112P-60 | 55 | 24 | 3114 | ||
| 41.40mm laser port | 26482 | 55 | FL30-AL-200-55-TE20-3112P-18 laser weld | 55 | 20 | 4913 | ||
| 1¼” o-ring face seal | 26482 hermetic connector | 55 | VS18-SS-150-55-TE22-180-40FE35 | 55 | 22 | 2882 | ||
| 1⅝” o-ring face seal | 26482 hermetic connector | 55 | VS22-SS-150-55-TEE20-3112P-24 | 55 | 20 | 2201 | ||
| 1⅝” o-ring face seal | 38999 series III | 66 | VS22-SS-150-66-TE22-180-99920P | 66 | 22 | 5759 | ||
| 1⅝” o-ring face seal | 38999/4 hermetic connector | 66 | VS22-SS-150-66-TE22-180-40FF35 | 66 | 22 | 2886 | ||
| 1⅝” o-ring face seal | 38999 series 3 | 79 | VS22-SS-150-79-TZ28-99920P-100 | 79 | 28 | 4447 | ||
| 1.64″ | D38999 series 3 | 145 | D38999/23-AL-150-145-30-PCB PINS | 145 | 30 | 4734 | ||
| 1⅞” o-ring face seal | 38999 series 3 | 126 | VS26-SS-150-40-330FTE-900-9992 Vishay strain gage cables | 126 | 26 | 4506 | ||
| 1⅝” o-ring face seal | 38999/2 hermetic connector | 79 | VS22-SS-150-79-TE22-27508<10 | 79 | 22 | 1953 | ||
| 1⅝” o-ring face seal | 38999 Series # | 79 | VS22-SS-150-79-TZ28-99920P-100 | 79 | 28 | 4447 |
