HPM80 120 VAC Servo Motor
伺服电机
用于伺服应用的80毫米、1.25千瓦可定制电机
- 钕铁硼磁体
- 平稳、低齿槽运动
- 功率范围:1.25千瓦
- IP65防护等级
- 行业标准反馈
- 符合CE和RoHS标准
选型：
| MODEL | ||
| PARAMETER | UNITS | HPM80-04-120-01 |
| Rated Power | W | 1250 |
| Rated Voltage | V | 120 (AC) |
| Continous Stall Torque | Nm | 4.77 |
| Max Torque | Nm | 14.31 |
| Rated Speed/ Max.Speed | rpm | 2500/3000 |
| Rated Current | A(peak) | 11.25 |
| Max. Current | A(peak) | 33.75 |
| Back EMF Constant, Ke | V(peak)/Krpm | 43.8 |
| Torque Constant, Kt | Nm/A(peak) | 0.42 (1±10%) |
| Moment Of Inertia | x10-4 kg*m2 | 1.48 |
| Number of Poles | # | 8 |
| Mass | kg | 3.1 |
| Feedback Options | Optical encoder (2500 line) | |
| Operating Environment | Temperature: 0 to 40° C; Humidity ≤95% RH, Non-condensing | |
| Storage Environment | Temperature: -20 to 65° C; Humidity ≤95% RH, Non-condensing | |
| Insulation Rating | Class F (155°C Winding Temperature) | |
| Protection Class | IP65 | |
| Duty Cycle | Continuous | |

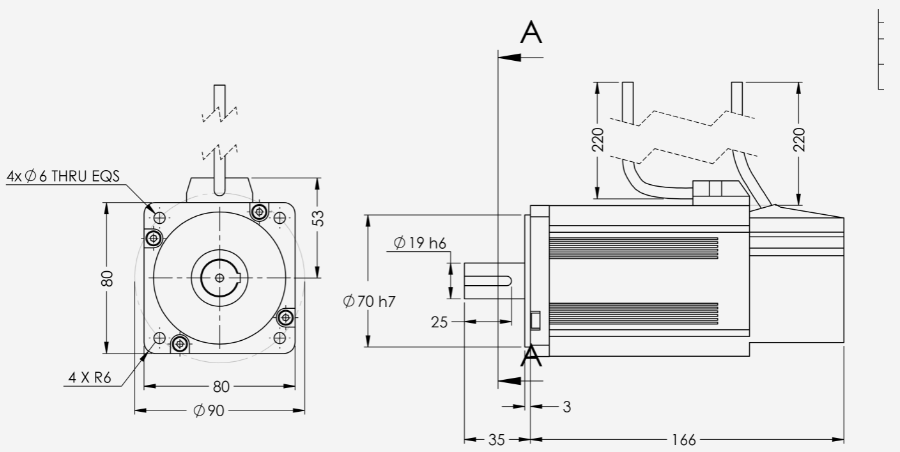

图纸：
Orbex提供各种可定制的功能，以提高电机效率，满足定制电压要求并减小封装尺寸。
自定义选项
- 线圈
- 抱闸
- 反馈选项
- 齿轮减速器
- 连接器
- 轴和安装
