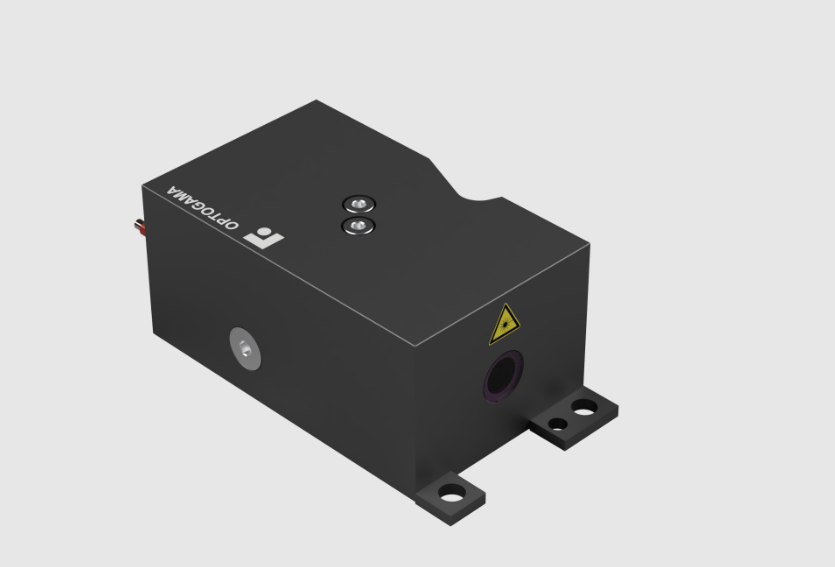

OPTOGAMA: “Eye-safe” 1,5 μm lasers “KAUKAS CW” 激光器
“KAUKAS CW” 系列二极管泵浦固态激光型号，可在多个 1.5 微米波长下提供高达 400 毫瓦的连续波功率。这些基于掺铒增益介质的经济实惠型主动风冷激光器，集高性能、超长使用寿命和卓越可靠性于一身。“KAUKAS CW” “eye-safe” 激光器可提供衍射极限的 TEM00 输出光束、出色的功率稳定性和窄带光谱。
技术参数：
| Wavelength | 1,5 μm |
| Wavelength tolerance | ±1 nm |
| Laser operating mode | CW |
| Average output power | Up to 500 mW |
| Power stability | <2 % |
| Polarization contrast | >100:1 |
| Beam diameter at exit window | <1 mm |
| Beam divergence | <5 mRad |
| Beam quality | M2 < 2 |
| Beam profile | TEM00 |
| Laser module dimensions | 175 x 78 x 86 mm (L x W x H) |
| Laser driver dimensions | 164 x 105 x 44 mm (L x W x H) |
| Pump current | 5-10 A |
| Electric | 100-240 V AC, 50/60 Hz, 1,4 A |
| Working temperature | 15-25 °C |
| Cooling | TEC element + active air cooling |
