ASE光源 ASE-CL0-RS-20-2-FCA
ASE光源型号:ASE-CL0-RS-20-2-FCA
ASE光源产品代码:1102
微处理器控制
放大自发发射源
ASE光源 ASE-CL0-RS-20-2-FCA产品规格
| Parameters | Specifications |
| Wavelength Range | 1530 – 1605nm |
| Spectral Flattening Filter | Included |
| Output Power | +20 dBm total, +17 dBm in C-band, +17 dBm in L-band |
| Optical Spectra Flatness | ≤ 2 dB 1530 – 1563nm, ≤ 2 dB 1570 – 1603 nm |
| Optical Output Fiber | 900um loose tube, FC/APC, red, 1 meter, SMF-28 |
| Output Power Monitoring Range | +10 to +21 dBm |
| Output Power Measurement Accuracy | ≤ +/- 0.3 dB, combined optical output power 1530 – 1605 nm |
| Polarization Dependence of Output Power | ≤ 0.3 dB |
| Control and Communication Interface | RS-232, RS-232 Voltage Level |
| Dimension | 180 x 125 x 35 mm |
| Power Input | +5 VDC +/- 5% |
| Electrical Interface Connector | PN: MD25M2000/AA, 25-PIN |
| Operational Case Temperature Range | 0 to +65 0C |
| Mode of Operation | ACC (constant pump current control) |
*ASE光源只有一条光缆
ASE输出的典型光谱，+25机箱温度

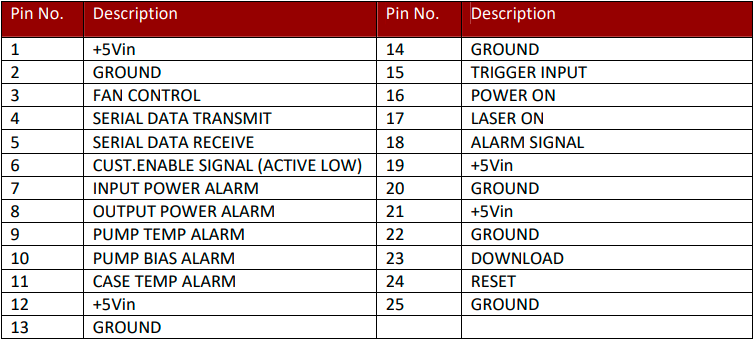

电子连接器:
部件号:MD25M2000/AA
