掺镱光纤激光器
掺镱光纤激光器型号:YDFL-PICO-1064-3-40-1-FCA
掺镱光纤激光器产品编号:1512
微处理器控制
皮秒锁模光纤激光模块
掺镱光纤激光器 YDFL-PICO-1064-3-40-1-FCA产品规格
| Parameters | Specifications |
| Wavelength Range | 1064 nm |
| Polarization Maintaining Property | Provided. Laser output is aligned along the slow axis of PM fiber |
| Pulse Width | 3 ps typical |
| Pulse Repetition Rate | 40 +/- 5 MHz typical |
| Output Power | 1 mW typical |
| Optical Tap Fiber | 900um loose tube, FC/APC, blue, 1 meter, SMF-28 |
| Optical Output Fiber | 900um loose tube, FC/APC, red, 1 meter, PM fiber PN: PM980 |
| RF Synchronized Pulse Output | 50-ohm DC coupled, 200 mV typical peak amplitude |
| Polarization Extinction Ratio | ≥ 20 dB |
| Control and Communication Interface | RS-232, RS-232 voltage level |
| Dimension | 90 x 70 x 24 mm |
| Power Input | +3.3 VDC +/- 5% |
| Electrical Interface Connector | PN: ZLTMM-115-71-L-D-633, Male 30-PIN |
| Operational Case Temperature Range | +10 to +40 0C |
| Mode of Operation | ACC (constant pump current control) |

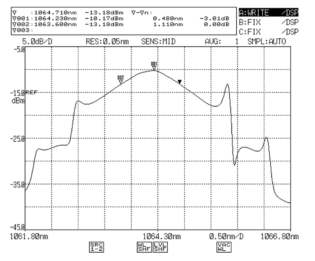

典型光谱

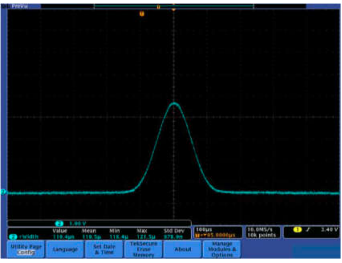

典型自作用迹线

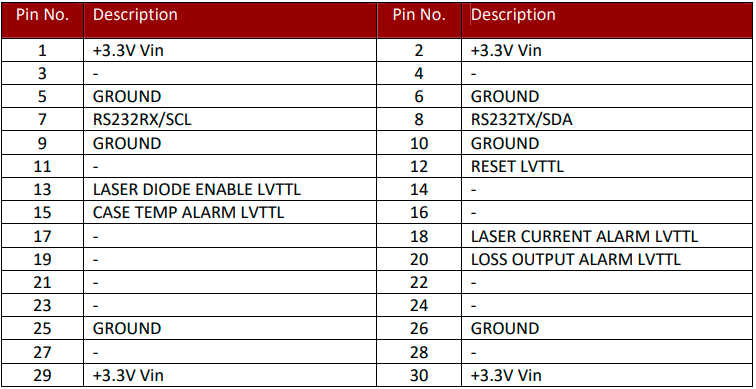

电子连接器:
部件号:ZLTMM-115-71-L-D-633
