掺镱光纤放大器

Nuphoton Technologies, Inc.是光纤激光器和光纤放大器的先驱，其应用领域涵盖工业，国防，航空航天，生物医学，电信和研究领域。该公司自1996年开始运营，使用专有的尖端技术设计和制造高性能光纤激光器、EDFA和宽带ASE源。

掺镱光纤放大器型号: YDFA-CW-1064-(-10)-30-FCA

掺镱光纤放大器产品代码:1102

微处理器控制

掺镱光纤放大器YDFA-CW-1064-(-10)-30-FCA产品规格

参数	规格
Wavelength Range	1064 nm typical, +/- 1 nm
Mid-Stage Filter Bandwidth	2 nm typical, centered at 1064 nm
Output Power	-10 dBm at 1064 nm, tested with 1064 nm and -40 dBm input
Gain	30 dB, tested with 1064 nm, -40 dBm input
Optical Input Fiber, two	900um loose tube, FC/APC, blue, 1 meter, HI-1060
Optical Output Fiber, two	900um loose tube, FC/APC, red, 1 meter, HI-1060
Input Power Monitoring	None
Output Power Monitoring	None
Control and Communication Interface	RS-232, RS-232 voltage level
Dimension	180 x 125 x 35 mm
Power Input	+5 VDC +/- 5%
Electrical Interface Connector	PN: MD25M2000/AA, 25-PIN
Operational Case Temperature Range	0 to +65 ⁰C
Mode of Operation	ACC (constant pump current control)

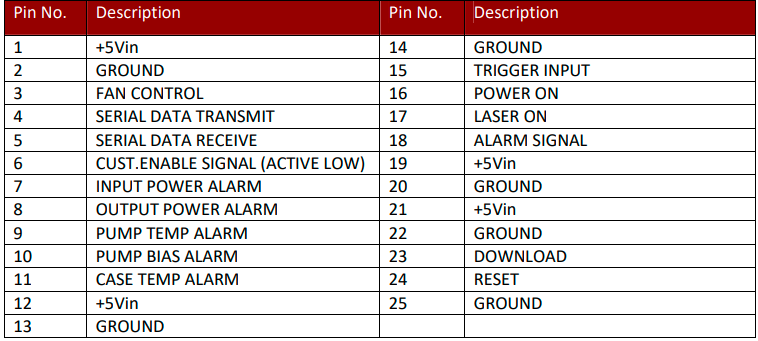

电子连接器:

部件号:MD25M2000/AA

美国Nuphoton Technologies Inc 光纤放大器掺镱光纤放大器 YDFA-CW-1064-(-10)-30-FCA
