掺铒光纤放大器
Nuphoton Technologies, Inc.是光纤激光器和光纤放大器的先驱，其应用领域涵盖工业，国防，航空航天，生物医学，电信和研究领域。该公司自1996年开始运营，使用专有的尖端技术设计和制造高性能光纤激光器、EDFA和宽带ASE源。
掺铒光纤放大器型号:EDFA-CW-C0-HR-17-20-FCA
掺铒光纤放大器产品代码:1401
微处理器控制的EDFA
掺铒光纤放大器EDFA-CW-C0-HR-17-20-FCA产品规格
| 参数 | 规格 |
| Wavelength Range | 1530 – 1565nm |
| Gain Flattening Filter | Not included |
| Output Power | +17 dBm, tested with 1550 nm, input power -3 dBm |
| Gain | 20 dB, tested with 1550 nm, input power -3 dBm |
| Optical Input Fiber | 900um loose tube, FC/APC, blue, 1 meter, SMF-28 |
| Optical Output Fiber | 900um loose tube, FC/APC, red, 1 meter, SMF-28 |
| Input Power Monitoring Range | -12 dBm to +3 dBm |
| Output Power Monitoring Range | +3 to +18 dBm |
| Input Power Measurement Accuracy | ≤ +/- 0.5 dB, 1550 nm |
| Output Power Measurement Accuracy | ≤ +/- 0.5 dB, 1550 nm |
| Noise Figure | ≤ 5.5 dB, tested at 20 dB gain, 1550 nm, input power -3 dBm |
| PMD | ≤ 0.5 ps |
| PDG + PDL | ≤ 0.3 dB |
| Control and Communication Interface | RS-232, RS232 voltage level |
| Dimension | 71 x 43 x 12mm |
| Power Input | +3.3 VDC +/- 5% |
| Electrical Interface Connector | PN: DF11-6DP-2DSA, 6-PIN |
| Operational Case Temperature Range | -5 to +700C |
| Mode of Operation | AOPC (constant output power control), ACC (constant pump current control) |

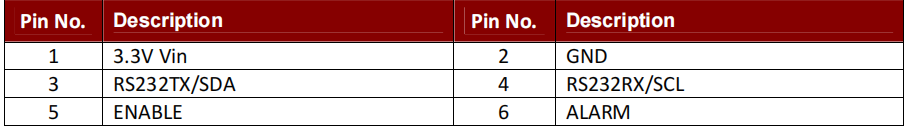

电子连接器
部件号:Hirose DF11-6DP-2DSA
