拉曼光纤放大器
1450 nm, Raman Pump
拉曼光纤放大器型号:RamanPump-RS-1450nm-800-FCA
拉曼光纤放大器产品编号:1806
拉曼放大器利用拉曼效应，光子与光纤的振动模式相互作用来放大信号。这些放大器提供了几个关键的优点，包括增加信号范围和带宽，降低噪声和减少信号退化。拉曼放大器可以实现长距离传输，而无需昂贵的信号再生，提高了整个系统的效率和可靠性。它们在波分复用(WDM)网络中至关重要，允许多个信号在一条光纤上同时传输。此外，基于拉曼泵浦的放大器有助于实现高容量、低延迟和面向未来的光通信基础设施。
拉曼光纤放大器 RamanPump-RS-1450nm-800-FCA 产品规格
| Parameters | Specifications |
| Wavelength of Pump Laser | 1450 nm combined pump source |
| Polarization Maintaining Property | 2 of 1450 nm pump sources polarization multiplexed |
| Output Pump Power FC/APC 3mm jacketed Optical Cable | 100 to 800 mW tunable; pump power at each wavelength is tunable 50 mW to 400 mW |
| FC/APC Output Cable #1 | 3mm jacket fiber cable with FC/APC connector.Provide up to 800mW 1450nm power |
| FC/APC Output Cable #2 | 900um jacket fiber cable with FC/APC connector. Pump power output tap |
| FC/APC Output Cable #3 | 900um jacket fiber cable with FC/APC connector. C-band Optical Output for backward-pumping scheme |
| FC/APC Input Cable #4 | 900um jacket fiber cable with FC/APC connector. C-band Optical Input for forward-pumping scheme |
| 1550 nm power monitoring, backward direction | Included |
| 1550 nm power monitoring, the forward direction | Included |
| 1450 nm forward pump power monitoring | Included |
| Backward direction pump power monitoring | Included |
| Control and Communication Interface | RS-232 |
| Dimension | 7.1 x 4.9 x 1.36 inches |
| Power Input | +5 VDC +/- 5% |
| Operational Case Temperature Range | -5 to +70°C |
| Mode of Operation | ACC (constant pump current control) |

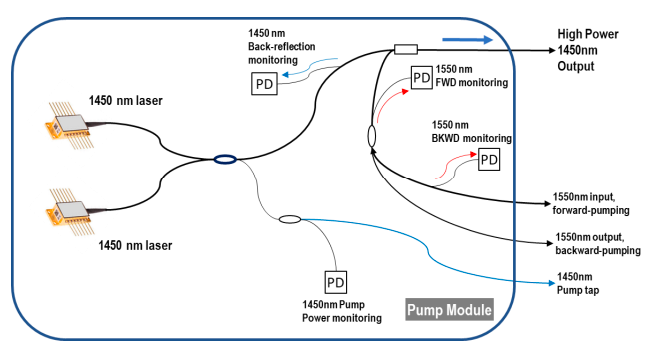

拉曼泵源布局
