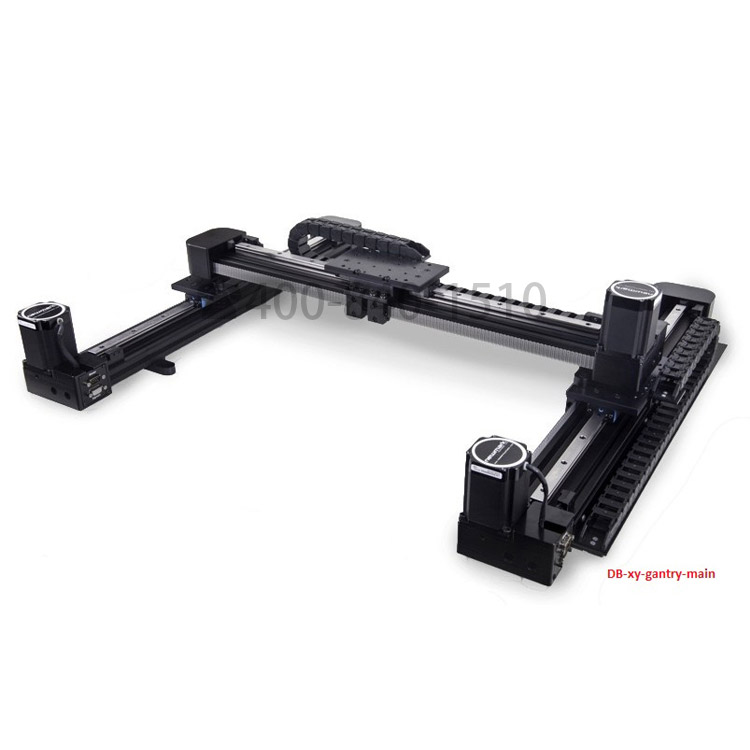

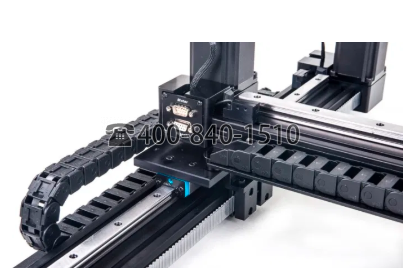

DB系列XY Gantry stage提供的射程长度从400mm到1000mm。这种标准配备了一个高扭矩的NEMA 23步进电机和一个电缆管理系统的较低阶段。电缆管理是可用的在上阶段的有效负载，有电缆运行到他们。行程结束限制开关是DBSeries线性级的标准。
驱动系统在每个轴上利用一个10mm宽，钢筋同步带移动马车。马车在15mm直线导轨轴承螺栓到一个硬铝挤压底盘。
DB系列线性滑块均由6061铝合金加工而成，并经过黑色阳极氧化处理。
Specifications
Travel Range | 400 mm, 600 mm, 800 mm, 1000 mm |
Resolution | 4 µm @ 125 microsteps |
Encoder | Optical rotary encoder mounted to read of motor, 4000 CPR with index (Optional) |
Linear Travel Per Motor Revolution | 100.53096 mm/rev |
Uni-directional Repeatability | 10 µm |
Bi-directional Repeatability | 75 µm |
Accuracy | ±100 µm |
Max. Speed | 800 mm/sec |
Maximum Payload | 11 kg (25 lb.) |
Stage Weight | DB-400: 5 kg (11 lb.) | DB-600: 5.9 kg (13 lb.) | DB-800: 6.8 kg (15 lb.) | DB-1000: 7.5 kg (16.5 lb.) Individual stage weights, add together for total system weight. |
Limit Switches | Inductive switches at each end of travel |
Material and Finish | Aluminum Alloy, Black Anodize |
Operating Temperature | 0°C to 50°C |
