D241Q-012KK-5风机
| Type | Voltage [V] | Current [mA] | Speed [RPM] | Airflow Rate [l/min] | Pressure stat. [Pa.] | Noise [db (A)] |
|---|---|---|---|---|---|---|
| D241Q-012KK-5 | 12 | 53 | 14500 | 57 | 85 | 38 |
| Type | Voltage [V] | Current [mA] | Speed [RPM] | Airflow Rate [l/min] | Pressure stat. [Pa.] | Noise [db (A)] |
|---|---|---|---|---|---|---|
| D243Q-012KK-5 | 12 | 53 | 14500 | 57 | 85 | 38 |
| Type | Voltage [V] | Current [mA] | Speed [RPM] | Airflow Rate [l/min] | Pressure stat. [Pa.] | Noise [db (A)] |
|---|---|---|---|---|---|---|
| D244Q-012KK-5 | 12 | 53 | 14500 | 57 | 85 | 38 |
| Type | Voltage [V] | Current [mA] | Speed [RPM] | Airflow Rate [l/min] | Pressure stat. [Pa.] | Noise [db (A)] |
|---|---|---|---|---|---|---|

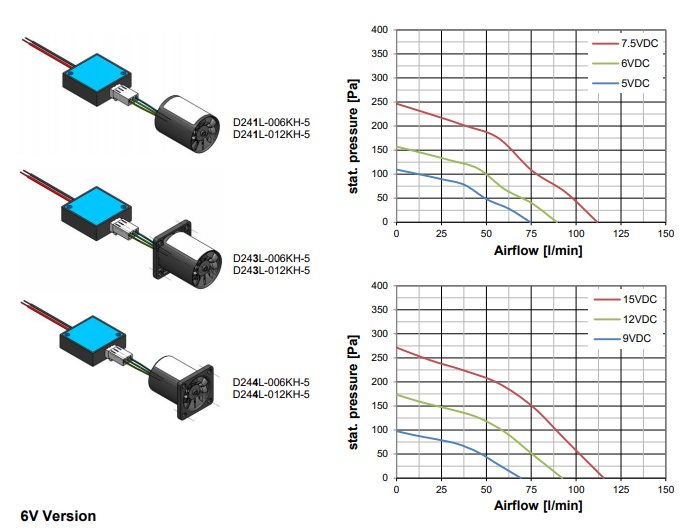

| D241L-006KH-5 | 6 | 120 | 20’500 | 90 | 160 | 47.4 |
| D241L-012KH-5 | 12 | 115 | 21’150 | 90 | 170 | 48.7 |
| D243L-006KH-5 | 6 | 120 | 20’500 | 90 | 160 | 47.4 |
| D243L-012KH-5 | 12 | 115 | 21’150 | 90 | 170 | 48.7 |
| D244L-006KH-5 | 6 | 120 | 20’500 | 90 | 160 | 47.4 |
| D244L-012KH-5 | 12 | 115 | 21’150 | 90 | 170 | 48.7 |
