KGW-Isotherm(伊索森)KF 29-Z / KFL 29-Z系列 两段式冷阱
Cold traps complete two-piece KF 29-Z / KFL 29-Z
KGW-Isotherm(伊索森)KF 29-Z / KFL 29-Z系列 两段式冷阱应用：
KGW-Isotherm(伊索森)KF 29-Z / KFL 29-Z系列 两段式冷阱优势：
KGW-Isotherm(伊索森)KF 29-Z / KFL 29-Z系列 两段式冷阱设计特点：
简单的冷阱，也称为指形冷阱，与真空泵一起用于标准应用。湿气或溶剂在化学应用区域冷凝出来。冷阱用于保护真空泵。这种设计的特别之处在于用户不需要三脚架来支撑冷阱。冷阱有一个珠子，用它把冷阱钩在杜瓦瓶的支撑环上。因此，冷阱可以快速方便地更换。LN2或CO2用于冷却。冷却剂应比物质的冷凝温度低至少50℃。

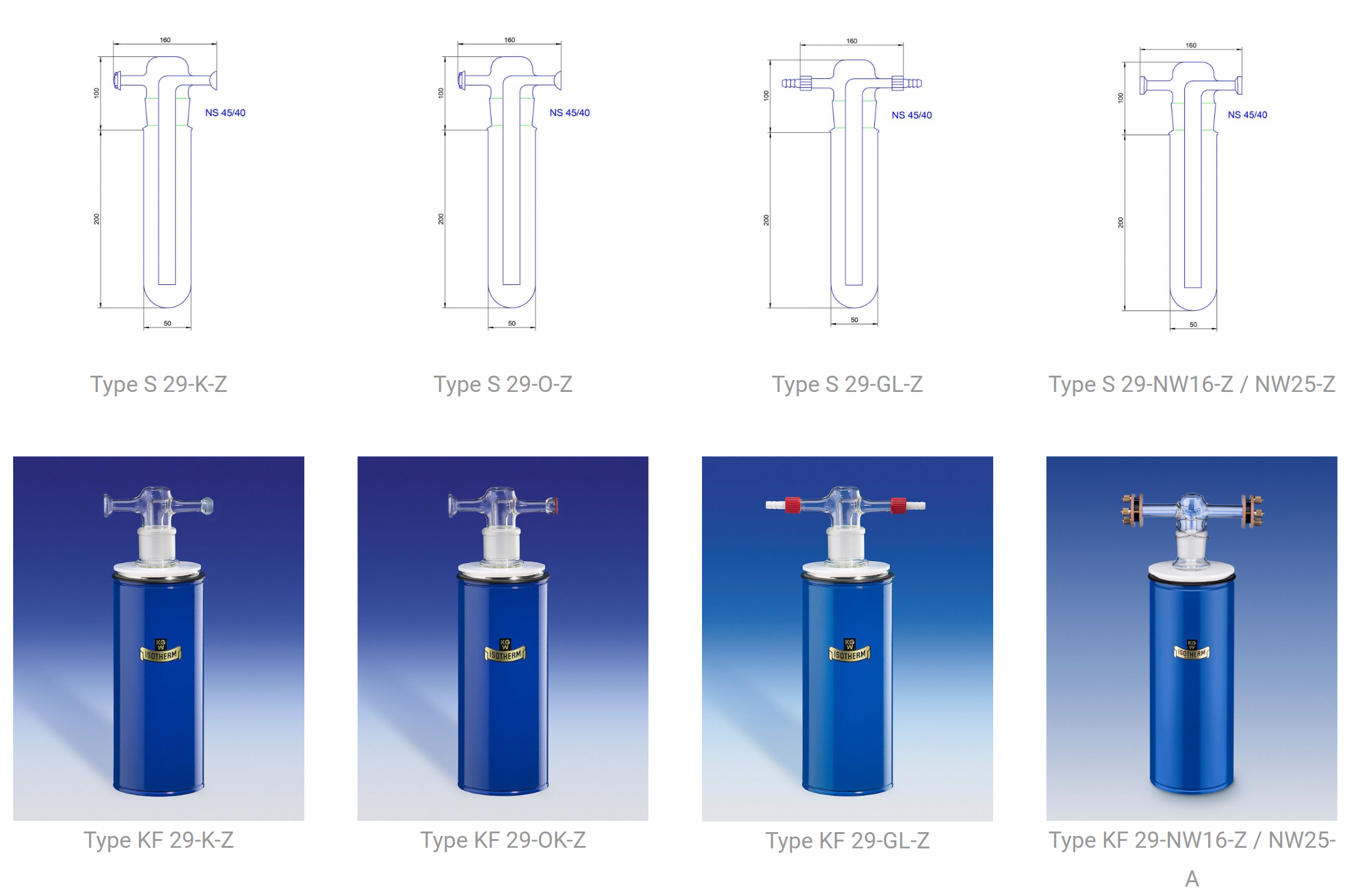

简短版本S29-Z图纸：
简短版本S29-Z规格参数：
| 型号 | 理论冷凝液容积[ml] | 理论冷却剂容积 [ml] | 适用杜瓦瓶类型 | 连接方式 | 货号 |
|---|---|---|---|---|---|
| KF 29-K-Z | 150 | 1000 | 12C | Spherical ground joint S29 | 17400 |
| KF 29-OK-Z | 150 | 1000 | 12C | Spherical ground joint S29 with O-ring seal | 17401 |
| KF 29-GL-Z | 150 | 1000 | 12C | Glass thread GL18 with olive | 17402 |
| KF 29-NW16-Z | 150 | 1000 | 12C | Vacuum flange KF-NW 16 | 17400-NW16 |
| KF 29-NW25-Z | 150 | 1000 | 12C | Vacuum flange KF-NW 25 | 17400-NW25 |
简短版本S29-Z冷阱配件：
| Designation | Article no. |
|---|---|
| Cooling finger S 29-K-Z | 17405 |
| Cooling finger S 29-O-Z | 17406 |
| Cooling finger S 29-GL-Z | 17407 |
| Cooling finger S 29-NW16-A | 17405-NW16 |
| Cooling finger S 29-NW25-A | 17405-NW25 |
| CO2 grid | 17570 |
| Plastic ring | 1733 |
| Ground joint safety device NS45/40 (CrNi) | 17353 |
| GL 18 Olive | 17331 |
| Cable clamp S29 | 17341 |
| Pertinax screw connection KF 10/16 | 17315 |
| Pertinax screw connection KF 20/25 | 17316 |
| Centering and O-ring KF 10/16 | 17320 |
| Centering and O-ring KF 20/25 | 17321 |

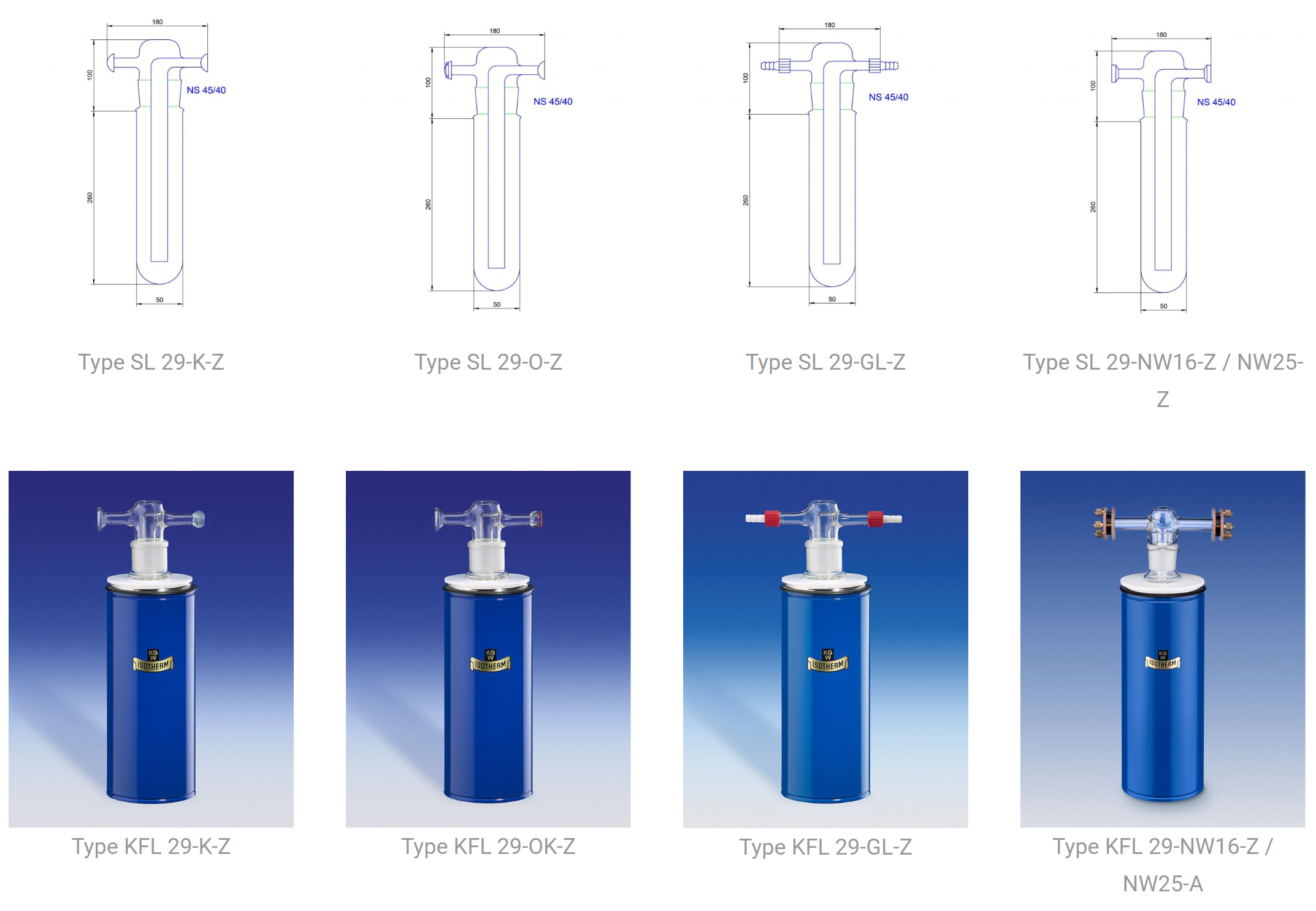

长版KFL 29冷阱图纸:
长版KFL 29冷阱技术规格：
| 型号 | 理论冷凝液容积 [ml] | 理论冷却剂容积 [ml] |
| 连接方式 | 货号 | |
|---|---|---|---|---|---|---|
| KFL 29-K-Z | 250 | 2000 | 18C | Spherical ground joint S29 | 17410 | |
| KFL 29-OK-Z | 250 | 2000 | 18C | Spherical ground joint S29 with O-ring seal | 17411 | |
| KFL 29-GL-Z | 250 | 2000 | 18C | Glass thread GL18 with olive | 17412 | |
| KFL 29-NW16-Z | 250 | 2000 | 18C | Vacuum flange KF-NW 16 | 17410-NW16 | |
| KF 29-NW25-Z | 250 | 2000 | 18C | Vacuum flange KF-NW 25 | 17410-NW25 |
长版KFL 29冷阱配件：
| Designation | Article no. |
|---|---|
| SL 29-K-Z | 17415 |
| SL 29-O-Z | 17416 |
| SL 29-GL-Z | 17417 |
| SL 29-NW16-Z | 17415-NW16 |
| SL 29-NW25-Z | 17415-NW25 |
| CO2 grid | 17571 |
| Plastic ring | 1733 -L |
| Ground joint safety device NS45/40 (CrNi) | 17353 |
| GL 18 Olive | 17331 |
| Cable clamp S29 | 17341 |
| Pertinax screw connection KF 10/16 | 17315 |
| Pertinax screw connection KF 20/25 | 17316 |
| Centering and O-ring KF 10/16 | 17320 |
| Centering and O-ring KF 20/25 | 17321 |
