提供高质量热电冷却光电导碲镉汞MCT探测器
它们具有高性能且操作简便。标准探测器在2µm到5µm波长范围内进行了优化。扩展范围探测器则在5µm以上的波长区域内运行。光学增强型探测器提供了反射型和折射型光学元件，以提高这些设备的收集效率。这些探测器的增强响应度和D*值，依赖于光学组件重新聚焦本可能未直接入射到探测器元件上的能量。因此，这些设备最适合用于入射能量为准直或发散的应用场景。光学增强探测器特别适合用于光纤应用。
探测器安装在两级、三级或四级制冷器的TO型封装中，如下表所示。封装中包含一个经过校准的热敏电阻，以实现准确的温度监测和/或温度控制。封装使用焊接窗口和焊接盖进行密封，并且充入惰性气体以提高制冷器的工作效率。
此外，我们还可以提供以下配件：前置放大器、电源、散热器和温度控制器。
| Standard TE Cooled HgCdTe Detectors |
| Model Number | Element
Size (mm) | Wave-length Peak λp (µm) | Wavelength Response (20% λco) (µm) | D* (λp,10000,1) Jones | Resistance(Ω) | Time Constant(µsec) | Oper.
Temp. *°C | Std. Pkg. | Std. Window | | 2 µm to 5 µm | MCT-3.5-TE2-0.25
MCT-3.5-TE2-1.00 | 0.25 X 0.25
1.00 X 1.00 | ~3.0 | > 3.5 | > 1.0E11 | 100-1500 | < 2 | -40 | 2-Stage TO-3 TO-8 TO-66 | Sapphire | MCT-4.5-TE2-0.25
MCT-4.5-TE2-1.00 | 0.25 X 0.25
1.00 X 1.00 | ~4.0 | > 4.5 | > 4.0E10 | MCT-5-TE2-0.10
MCT-5-TE2-0.25
MCT-5-TE2-0.50
MCT-5-TE2-1.00 | 0.10 X 0.10
0.25 X 0.25
0.50 X 0.50
1.00 X 1.00 | ~4.5 | > 5.0 | > 2.0E10 | 100-1500 | | MCT-5-TE2-2.00 | 2.00 X 2.00 | > 1.0E10 | MCT-4.5-TE3-0.25
MCT-4.5-TE3-1.00 | 0.25 X 0.25
1.00 X 1.00 | ~4.0 | > 4.5 | > 6.0E10 | 100-1500 | -65 | 3-Stage TO-3 TO-8 TO-66 | MCT-5-TE3-0.10
MCT-5-TE3-0.25
MCT-5-TE3-0.50
MCT-5-TE3-1.00 | 0.10 X 0.10
0.25 X 0.25
0.50 X 0.50
1.00 X 1.00 | ~4.5 | > 5.0 | > 4.0E10 | 100-1500 | | MCT-5-TE3-2.00 | 2.00 X 2.00 | > 3.0E10 | MCT-5-TE4-0.10
MCT-5-TE4-0.25
MCT-5-TE4-0.50
MCT-5-TE4-1.00 | 0.10 X 0.10
0.25 X 0.25
0.50 X 0.50
1.00 X 1.00 | > 6.0E10 | -75 | 4-Stage TO-3 TO-66 | | MCT-5-TE4-2.00 | 2.00 X 2.00 | > 4.0E10 |
|
|
| * Note: Heat Sink @ 30 Degrees Celsius |
| Extended Range TE Cooled HgCdTe Detectors |
| Model Number | Element Size (mm) | Wave-length Peak λp (µm) | Wavelength Response (20% λco) (µm) | D* (λp,10000,1) Jones | Resistance(Ω) | Time Constant(µsec) | Oper.
Temp. *°C | Std. Pkg. | Std. Window | | > 5 µm | MCT-6-TE3-0.25
MCT-6-TE3-1.00
| 0.25 X 0.25
1.00 X 1.00 | ~5.5 | > 6.0 | > 2.0E10 | 100-1500 | < 2 | -65 | 3-Stage
TO-3 TO-66 | AR Coated ZnSe | MCT-6-TE4-0.25
MCT-6-TE4-1.00
| 0.25 x 0.25
1.00 x 1.00 | > 3.0E10 | -75 | 4-Stage
TO-3 TO-66 | MCT-7-TE3-0.25
MCT-7-TE3-1.00 | 0.25 X 0.25
1.00 X 1.00 | ~6.0 | > 7.0 | > 1.0E10 | -65 | 3-Stage
TO-3 TO-66 | MCT-7-TE4-0.25
MCT-7-TE4-1.00 | 0.25 X 0.25
1.00 X 1.00
| > 1.5E10 | -75 | 4-Stage
TO-3 TO-66 | MCT-8-TE3-0.25
MCT-8-TE3-1.00 | 0.25 X 0.25
1.00 X 1.00 | ~7.0 | > 8.0 | > 3.0E9 | -65 | 3-Stage
TO-3 TO-66 | MCT-8-TE4-0.25
MCT-8-TE4-1.00 | 0.25 X 0.25
1.00 X 1.00 | > 6.0E9 | -75 | 4-Stage
TO-3 TO-66 | MCT-9-TE3-0.25
MCT-9-TE3-1.00 | 0.25 X 0.25
1.00 X 1.00 | ~8.0 | > 9.0 | > 1.5E9 | -65 | 3-Stage
TO-3 TO-66 | MCT-9-TE4-0.25
MCT-9-TE4-1.00 | 0.25 X 0.25
1.00 X 1.00 | > 2.0E9 | -75 | 4-Stage
TO-3 TO-66 |
|
| * Note: Heat Sink @ 30 Degrees Celsius |
| Optically Enhanced TE Cooled HgCdTe Detectors |
| Model Number | Element Size (mm) | Wave-length Peak λp (µm) | Wavelength Response (20% λco) (µm) | D* (λp,10000,1) Jones | Resistance(Ω) | Time Constant(µsec) | Oper.
Temp. *°C | Std. Pkg. | Std. Window | | > 5 µm | OE-MCT-6-TE3-0.25
OE-MCT-6-TE3-1.00 | 0.25 X 0.25
1.00 X 1.00 | ~5.5 | > 6.0 | > 8.0E10 | 100-1500 | < 2 | -55 | 3-Stage TO-3 TO-66 | AR Coated ZnSe | OE-MCT-7.5-TE3-0.25
OE-MCT-7.5-TE3-1.00 | 0.25 X 0.25
1.00 X 1.00 | ~6.5 | > 7.5 | > 2.0E10 | OE-MCT-8-TE3-0.25
OE-MCT-8-TE3-1.00 | 0.25 X 0.25
1.00 X 1.00 | ~7.0 | > 8.0 | > 8.0E9 | OE-MCT-9-TE3-0.25
OE-MCT-9-TE3-1.00 | 0.25 X 0.25
1.00 X 1.00 | ~8.0 | > 9.0 | > 4.0E9 |
|
| * Note: Heat Sink @ 30 Degrees Celsius |
|

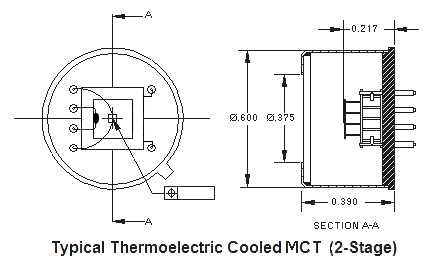

| TE COOLED STANDARD PACKAGING |

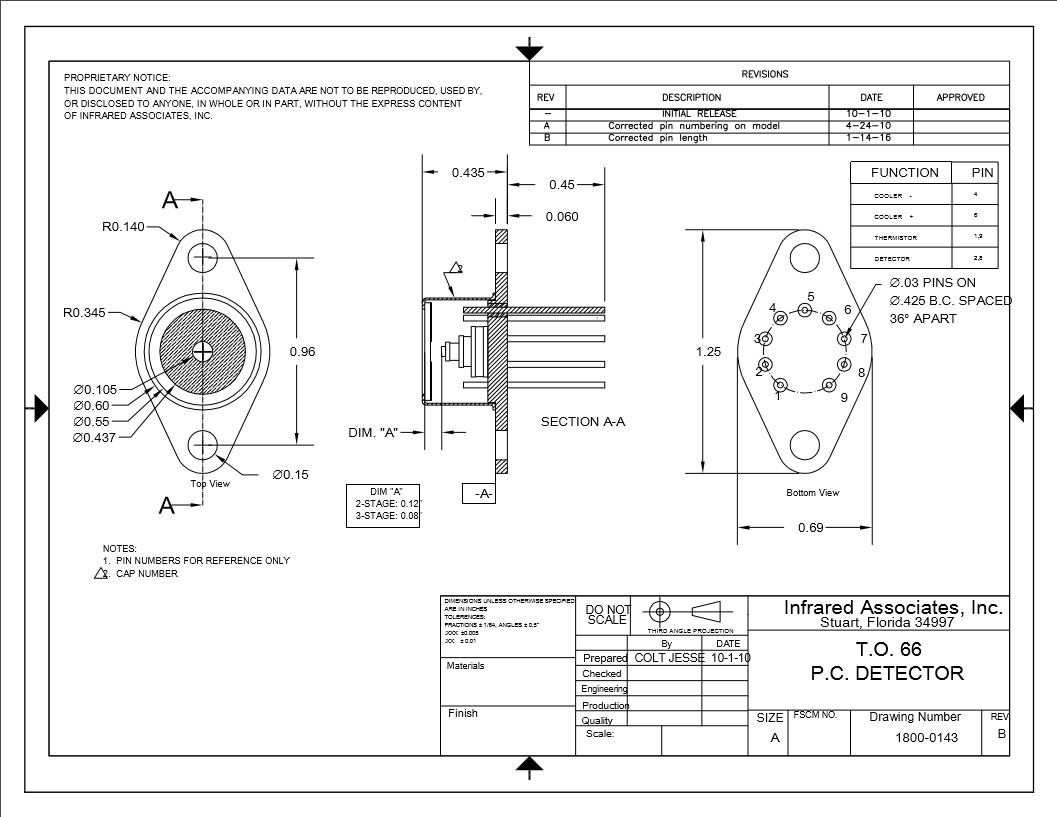

| TO-66
|

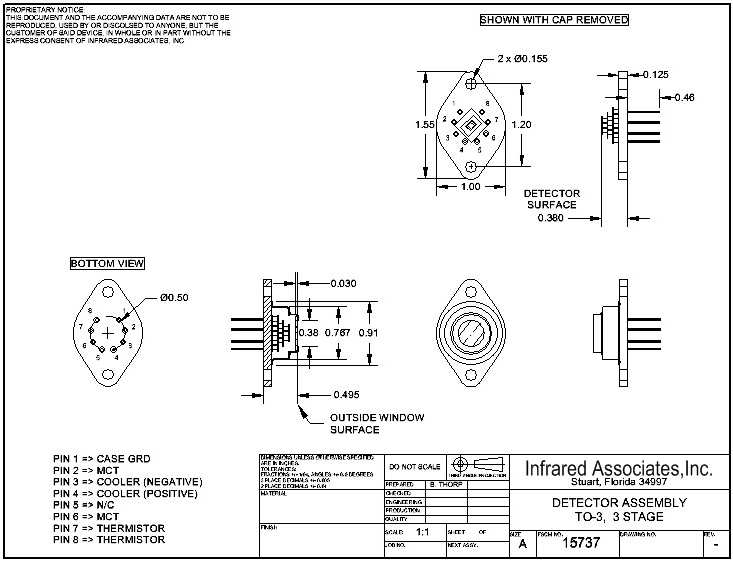

| TO-3
|
