REACTAVISC SPECIFICATION |
| | |
PERFORMANCE | Range | 0 – 500,000cP over 6 models |
| Measurement Time | 1 second |
| Accuracy | 1% of reading or +/- 1 digit |
| Repeatability | 0.5% of reading or +/- 1 digit |
TEMPERATURE | Integral Thermometer | Integrated temperature measurement |
| Standard Range | -40 °C to 200 °C |
| Extended Range | To order for greater than 200 °C * |

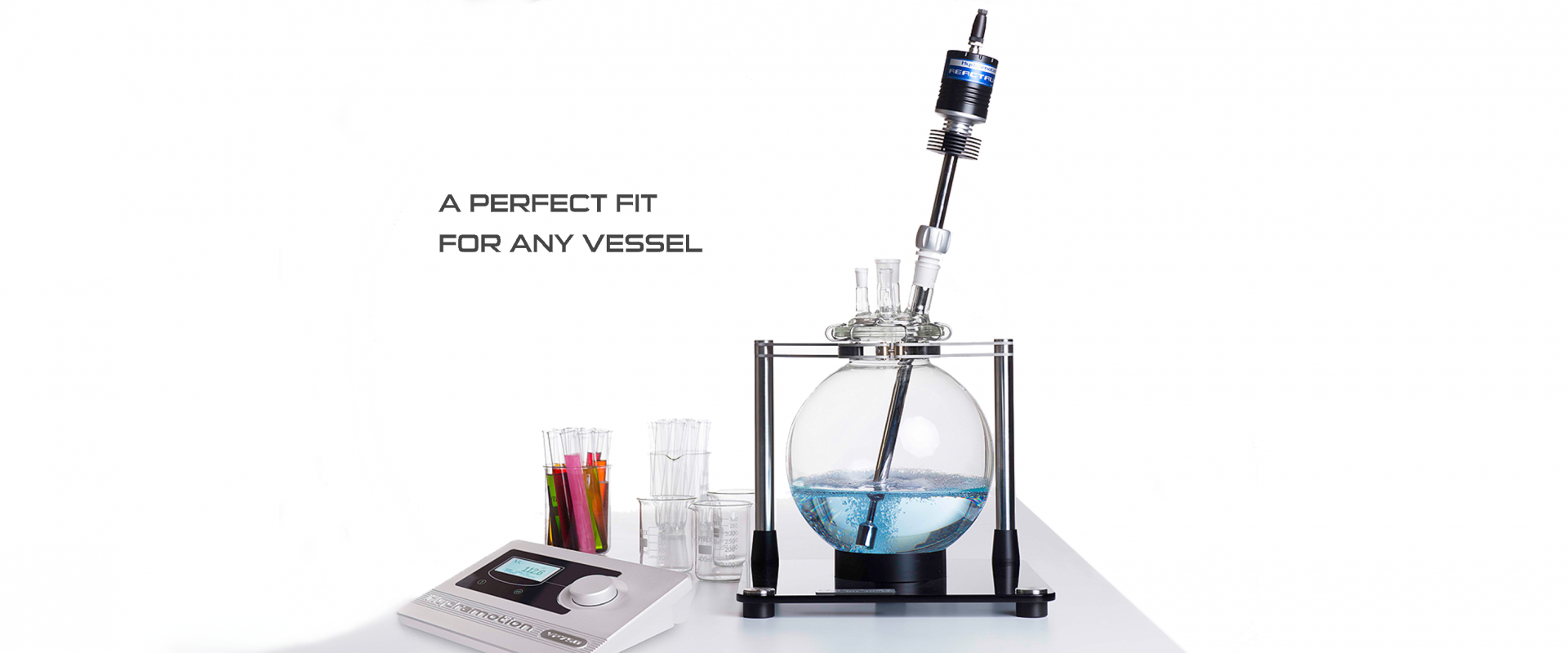

VESSEL CONNECTION | Type | HydraGland™ Adaptors for all tapered and other vessel fittings |
| Materials | PTFE and SS316 |
| Fitting options | Special fittings and materials to order * |
SENSOR PROJECTION | Nominal sensor projection | 450mm |
ELECTRICAL CONNECTION | Cable Length | As required – not affected by cable length |
| Cable/Connector Type | Binder 4-way |

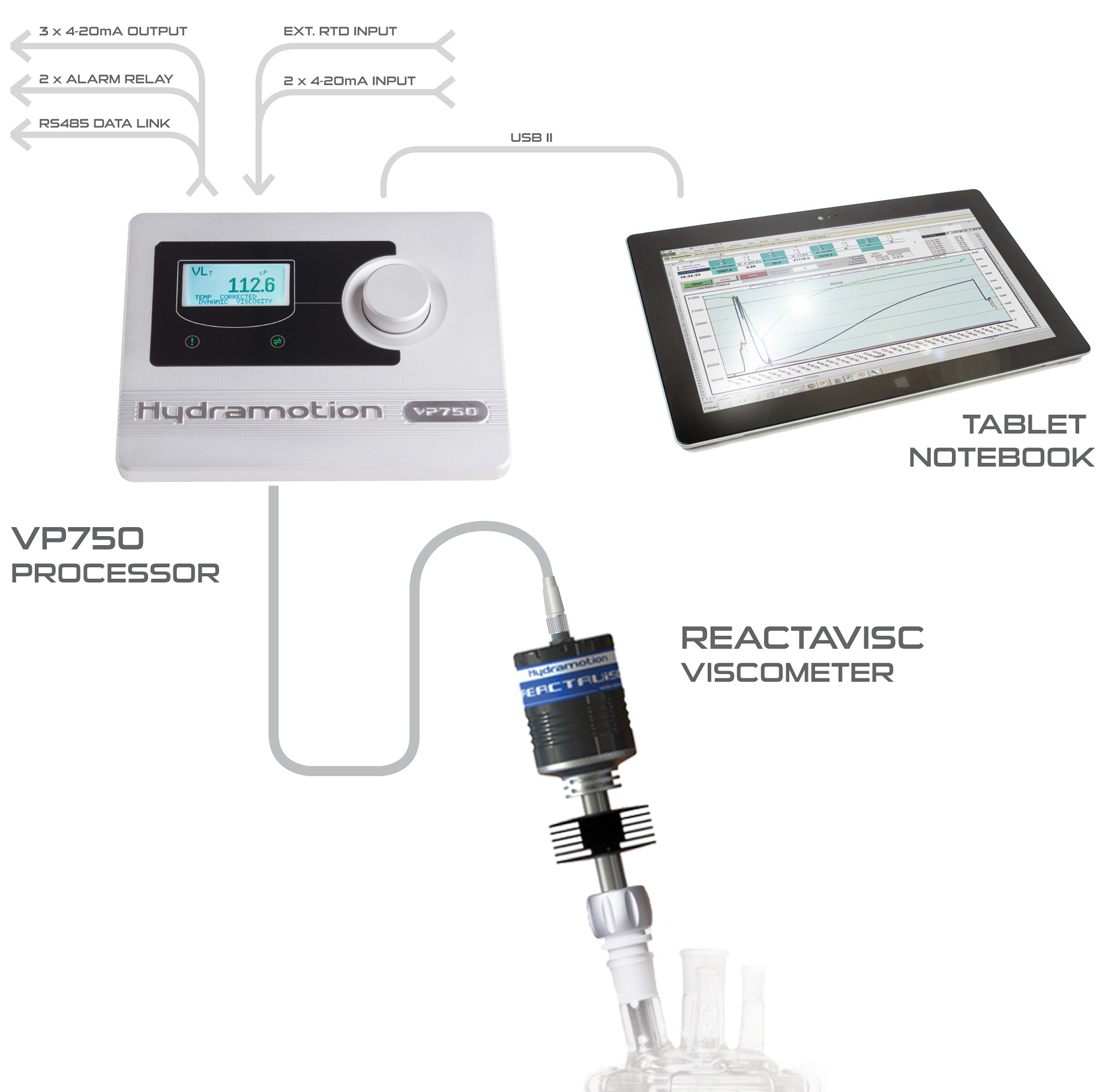

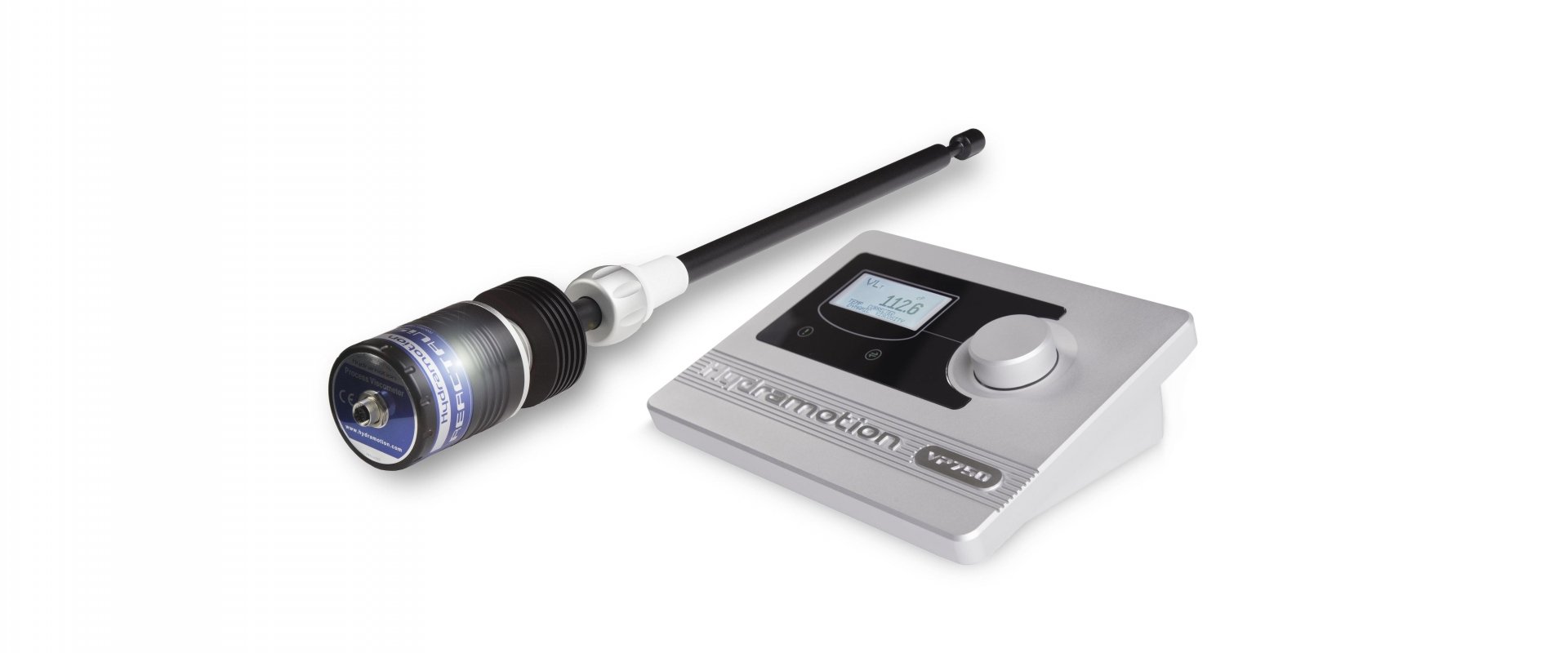

| Power | VP Processor powered |
SAFETY CERTIFICATION | Hazardous Area | All instruments available for Ex Hazardous Area, explosive atmospheres |
| | Ga Ex ia IIC T1…T6 |
CONSTRUCTION | All welded, crevice-free | |
MATERIALS | Sensor | SS316 ( EN 1.4401) |
| Sensor Options: | Alloy C22 (EN 2.4602) |
| | Alloy C276 (EN 2.4819) |
| Special Materials: | Non-standard materials to order * |
SURFACE FINISH | Standard | N5 0.4 Ra |
| Finish Options | Fluoropolymer |
| | Electropolished |
| | Electroplated |
| Special Finish | Non-standard finish options and coatings to order * |
INGRESS PROTECTION | Standard | IP67 |
SOFTWARE | ViscoLink data viewing and logging PC software |
| | |
* SPECIAL OPERATIONS | Custom variations to instrument specification and dimensions routinely provided by our dedicated Special Operations division |
| | |
| As it is Hydramotion’s policy to continuously develop and improve its products, some specifications may change without notice |
