SITMA MACHINERY S.p.A. automatic wrapping machine

SITMA MACHINERY S.p.A. automatic wrapping machine SITMA W950-EI 自动包装机

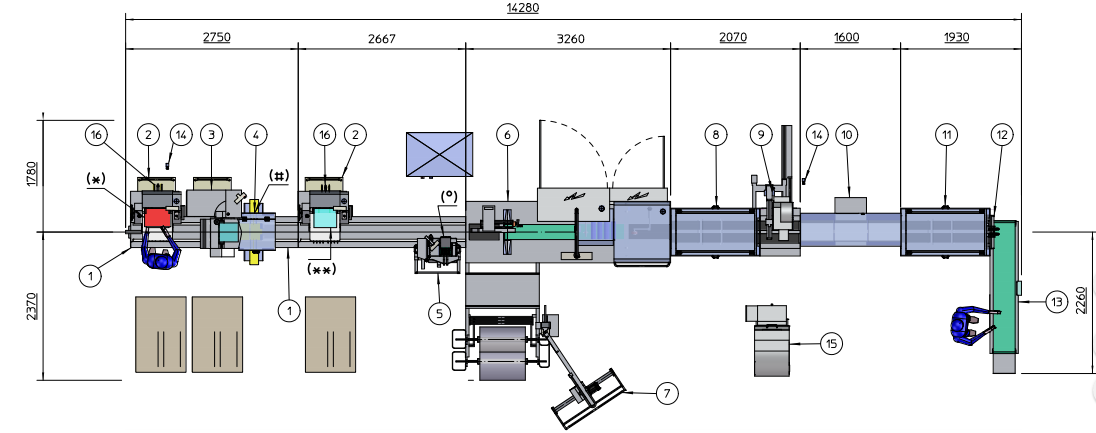

Nr. 1 M3-MN DRIVE MOTOR FOR UP TO 4 MODULES (ref.1)
Nr. 2 M3-2F-17 SUPPLEMENTARY MODULE FOR 3 FEEDERS WITH TWIN
FINGER AND A CHAIN PITCH OF 17" (ref.1)
Infeed module. It is connected with main infeed module and can accept
Sitma hopper feeders. Includes all necessary pre-arrangements for
these feeders. Also a twin 17.5" pitch triple chain with a double
finger and includes a twin electro-pneumatic clutch and automatic
reset if the machine is overloaded. Length 2667mm.

Nr. 3 FE0776-03 DUAL SENSOR MICROSONIC (ref.1)
Nr. 1 MODULE AT 35" PITCH (ref.1)
Nr. 2 F985-C-E HIGH SPEED FEEDER WITH ELECTRONIC BASE FOR MODULES M3 (ref.2)
SITMA hopper feeder. This item is equipped with both air suction and
mechanical gripper and can handle products ranging from a single
sheet with paper weight of 60gsm to a stitched article of a maximum
8 mm thickness. Also equipped with one set of missing and double feed
detection controls.
Including mobile base with electronic connection to machine
for quick release and re-positioning.

Nr. 1 F985-GN-E PIVOTING FEEDER, LIFTABLE, ON ELECTRONIC BASE FOR MODULES M3 (ref.3)
New SITMA pivoting hopper feeder. This item has a quick release
system in order to turn the feeder round 90° in a matter of seconds.
It is supplied on its own electronic base with wheels. It is also
equipped with both air suction and mechanical gripper and can handle
products ranging from single sheet to with paper weight of 60gsm to a
stitched article of a maximum 8 mm thickness. Also equipped with one
set of missing and double feed detection controls.
Also incorporated is a patented powered knockdown brush to ensure
positive product placement on to raceway and also to prevent rollovers

Nr. 1 PILING DEVICE (ref.4)

Nr. 1 F11-FF FRICTION FEEDER WITH BASE FOR MODULES M3 (ref.5)
The New Sitma Friction Feeder is independently driven by servo motor
drive. All settings are automatically adjusted using the latest PLC
control system. It can be positioned anywhere along the base module.
Product counting and accumulating and dropping on request.
It also includes one set of missing and double feed detection
controls.
Nr. 1 W950-EI AUTOMATIC WRAPPING MACHINE "SITMA 950-EI", H=60 MM WITH DUAL LONGITUDINAL SEALING SYSTEM AND PRINT REGISTRATION SYSTEM (ref.6)
Automatic wrapping machine with a maximum mechanical speed of up to 20.000 copies per hour for products up to a maximum height of 60 mm. The machine is also equipped with two film reel holders, placed outside the machine, for reels up to 600 mm in diameter and with end of film reel indicated by a warning light. Also includes film guides
with side rollers, conveyor belt, rubber pressure rollers, adjustable according to height, cross and counter sealer bars and push button control for automatic centering of the cross sealer bar. The sealing
and cutting operations of the sealing jaws operate through its own exclusive movement foreseen for "heavy duty purposes". All side guides and wrapping machine set up are adjustable through a servo drive system for quick make ready. Electrical connections on all moving parts, particularly on the sealer bar, are special "heavy
duty" joints. Control of logical function is through a plc with an interactive pivoting operating panel. The machine is driven by a DC motor. Also includes remote reel stand for ease of high-speed operation. Length 3.950 mm The system includes also : - Dual patended longitudinal sealing system Oscillating double sealing wheel whitc rotates 180° automatically
when required to ensure a longitudinal seal at any speed.longitudinal seal at any speed.
- Print registration system Photoelectric system for pre-printed film with a central registration mark. This allows one to register printed film to pack size.

Nr. 1 634-M LONGITUDINAL AIR SEALER (ref.6)

Nr. 1 813-Z BOX INTERFACE TO SORT ZIP CODE FROM INKJET (ref.6)
Interface box in order to run Mailsort in conjunction with the signal
provided by the controller of the inkjet printing system.
Nr. 1 813-1S CONTROLS FOR SELECTIVITY ON FIRST FEEDER (ref.6)
Nr. 4 813-1SN CONTROLS FOR SELECTIVITY ON SUBSEQUENT FEEDERS
(ref.6)
Nr. 1 950-D STATIC ELIMINATOR (ref.6)
Nr. 1 950-QS22 VACUUM BELT 220 MM WIDE (ref.6)
Nr. 1 WM0950-01 BELT RETURN FOR THICK PRODUCTS (ref.6)
Nr. 1 WM0950-02 HEAVY DUTY SEALER BAR (ref.6)
Nr. 6 WM0950-03 FILM TUNNEL ON WRAPPER (ref.6)
Nr. 1 SC0010B REMOTE ASSISTANCE (ref.6)
Nr. 1 939-FWP1 ROLL LIFTING DEVICE 1000mm (ref.7)

Nr. 1 TR0579C BELT WITH EJECT GATE AND EXTENSION FOR LABELER (ref.8)

Nr. 1 901-BZ1 BIZERBA PRINTER GS-EO (ref.9)

Nr. 1 PR0003A THERMIC PRINTER BIZERBA (ref.9)
Nr. 1 VA0001A WEIGHT CHECKER (ref.10)
Nr. 1 TR0579A CONVEYOR WITH EJECT GATE (ref.11)
Nr. 1 TU0706-01 PRODUCT ACCELLERATING SYSTEM (ref.12)
Nr. 1 102-B DELIVERY BELT LENGTH 2400mm, H=850mm (ref.13)
Collecting belt with adjustable speed vari-drive motor which will
receive the packs either spaced apart or shingled. It can be
connected either inline or at right angles to the main machine
direction. (Conveyor length 2300mm).

Nr. 1 102-TC SEPARATION AND COUNTING SYSTEM FOR 102 BELT 4/17MT/1 (ref.13)

Nr. 2 RS0002F BARCODE AND 2D CODE READING SYSTEM (ref.14)
This system is fully integrated into Sitma system machine control.
Nr. 1 EYE-2-S PC FOR PRODUCTION REPORT + ON-LINE STATISTICS
(ref.15)
Main features:
- Product reporting;
- Configurable import/export format;
- Stacker - zip management;
- Reordering.
It displays production status, and for each product: done ok, not
done, done with warning, done with error, to be reordered.

Nr. 2 FORK STACKER (ref.16)
Nr. 1 M3-MN DRIVE MOTOR FOR UP TO 4 MODULES (ref.1)
2 M3-2F-17 SUPPLEMENTARY MODULE FOR 3 FEEDERS WITH TWIN
FINGER AND A CHAIN PITCH OF 17" (ref.1)
Nr. 3 FE0776-03 DUAL SENSOR MICROSONIC (ref.1)
Nr. 1 MODULE AT 35" PITCH (ref.1)
2 F985-C-E HIGH SPEED FEEDER WITH ELECTRONIC BASE FOR MODULES M3 (ref.2)
Nr. 1 F985-GN-E PIVOTING FEEDER, LIFTABLE, ON ELECTRONIC BASE FOR MODULES M3 (ref.3)
Nr.
Nr. 1 PILING DEVICE (ref.4)
1 F11-FF FRICTION FEEDER WITH BASE FOR MODULES M3
(ref.5)
Nr.
1 W950-EI AUTOMATIC WRAPPING MACHINE "SITMA 950-EI",
H=60 MM WITH DUAL LONGITUDINAL SEALING
SYSTEM AND PRINT REGISTRATION SYSTEM (ref.6)
Nr.
Nr. 1 634-M LONGITUDINAL AIR SEALER (ref.6)
1 813-Z BOX INTERFACE TO SORT ZIP CODE FROM INKJET
(ref.6)
Nr.
Nr. 1 813-1S CONTROLS FOR SELECTIVITY ON FIRST FEEDER (ref.6)
4 813-1SN CONTROLS FOR SELECTIVITY ON SUBSEQUENT
FEEDERS (ref.6)
Nr.
Nr. 1 950-D STATIC ELIMINATOR (ref.6)
Nr. 1 950-QS22 VACUUM BELT 220 MM WIDE (ref.6)
Nr. 1 WM0950-01 BELT RETURN FOR THICK PRODUCTS (ref.6)
Nr. 1 WM0950-02 HEAVY DUTY SEALER BAR (ref.6)
Nr. 6 WM0950-03 FILM TUNNEL ON WRAPPER (ref.6)
Nr. 1 SC0010B REMOTE ASSISTANCE (ref.6)
Nr. 1 939-FWP1 ROLL LIFTING DEVICE 1000mm (ref.7)
1 TR0579C BELT WITH EJECT GATE AND EXTENSION FOR LABELER
(ref.8)
Nr.
Nr. 1 901-BZ1 BIZERBA PRINTER GS-EO (ref.9)
Quotation No. Q8770 Spilamb
Nr. 1 PR0003A THERMIC PRINTER BIZERBA (ref.9)
Nr. 1 VA0001A WEIGHT CHECKER (ref.10)
Nr. 1 TR0579A CONVEYOR WITH EJECT GATE (ref.11)
Nr. 1 TU0706-01 PRODUCT ACCELLERATING SYSTEM (ref.12)
Nr. 1 102-B DELIVERY BELT LENGTH 2400mm, H=850mm (ref.13)
1 102-TC SEPARATION AND COUNTING SYSTEM FOR 102 BELT 4/17MT/1 (ref.13)
Nr.
Nr. 2 RS0002F BARCODE AND 2D CODE READING SYSTEM (ref.14)
1 EYE-2-S PC FOR PRODUCTION REPORT + ON-LINE STATISTICS(ref.15)
Nr.
Nr. 2 FORK STACKER (ref.16)
