Weimer Messtechnik GEPARD15-M4cubic system 10010750
consisting of:

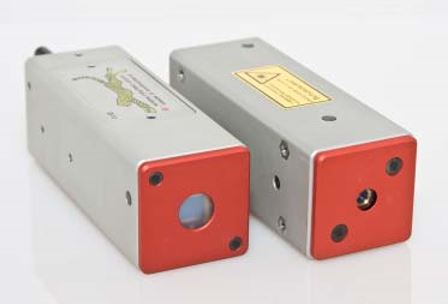

GEPARD-M4cub LASER transmitter,
with mechanical adjustment of laser beam, fiber-coupled red laser (approx. 635nm), perfectly round laserbeam diameter 5mm.
Power supply with NiMH rechargeable battery (2 x LR6/AA; operation time >24h).
Allen screw driver for laser angle adjustment.
Dimensions (cubic): 50x50x140mm.
GEPARD-M4cub LASER transmitter,
with mechanical adjustment of laser beam, fiber-coupled red laser (approx. 635nm), perfectly round laserbeam diameter 5mm.
Power supply with NiMH rechargeable battery (2 x LR6/AA; operation time >24h).
Allen screw driver for laser angle adjustment.
Dimensions (cubic): 50x50x140mm.
GEPARD15-M4cub receiver with a measuring range of 15x15mm, signal processing with integrated DSP.
Data transmission to PC with Bluetooth wireless technique (2.4GHz / 100m) or optional with fiber optics to USB.
Dimensions: 50x50x140mm.
Powered by NiMH rechargeable battery (2 x LR6/AA; operation time > 24h) or optional by power adaptor 115230VAC.
WIN-GEPARD software package:
Straightness
Position
Manual (pdf-format)
IR-remote control to activate the measurings.
Bluetooth-adaptor to USB for PC (2.4GHz / 100m).
Aerial 2.4GHz for GEPARD receiver.
NiMH spare battery for transmitter/receiver.
Battery charger (115-230V/50-60Hz) for NiMH batteries.
Manual GEPARD (.pdf-format).
Calibration protocol.
GEPARD hard-shell carrying case.
Weimer Messtechnik GEPARD15-M4cubic system 10010750
