PAVE-Mate® I 气密双面贯通连接器

PAVE双面气密密封和双向密封可以在任意方向或两者方向上密封压力和真空。对于超过300 psi（20 bar）的压力，如果改变图纸上显示的压力方向，请与销售工程师联系。通常可以根据要求提供显著更高的压力等级以及更低的温度等级，例如-60℃、-100℃甚至-200℃。

PAVE-Mate® I双面气密密封多针圆形电气贯通连接器是双面电气公母接触插座或每侧的插头连接器，适用于高压或低压或高真空或低真空。信号、电源、同轴接触点、2至128个接触点、#4 AWG至#26 AWG镀金、镀银或镀锡铜合金接触点、RJ45 Cat 5e Cat 6 Cat 7 RJ45以太网、火线、TBFH、USB 2.0、USB 3.0、MDR或用于核或实验室手套箱或热电偶接触点的Pushthru。我们所有的连接器和贯通件都是气密密封的，意味着既能密封真空也能密封压力，通常基于Mil-DTL-26482、38999、5015接触安排以及大多数其他商业连接器。电压等级不同，通常为600-1000V或更高。 隔板安装样式包括卡口螺母O形圈、NPT或定制法兰型、O形圈或激光和电子束焊接。我们所有的气密连接器都可以提供并安装在您选择的真空或压力法兰上。连接器插头的耦合或配对样式取决于连接器系列，可以是刺刀型、螺纹型或拉推耦合。特殊订购的用于26482连接器的配对插头在配对条件下也可以达到IP67或IP68等级。 由于使用的是铜合金接触点，而不是其他气密连接器中常见的高电阻Kovar引脚，PAVE双面气密连接器提供了更好的电导率和电流能力，以及高介电或电压等级。PAVE双面气密电气连接器可用于所有军用规格电连接器的接触安排以及商业版本的电连接器。泄漏测试可以根据需要进行真空氦气测试或高压N2泄漏测试。通常提供配对的连接器插头、压接或焊接接触点。 PAVE-Mate®气密连接器非常坚固，可以测试的压力范围从80 psi到+3000 psi，真空度可达10^-8 Torr，温度范围从-100℃到200℃，具体取决于气密连接器的设计、使用的O形圈化合物和客户的要求。双面气密连接器贯通件在配对或未配对条件下也可以双向承受压力或真空，但非常高的压力可能在一个方向上额定更高。气密泄漏率低至10^-9cc/sec。PAVE气密密封连接器经过NASA认证，具有低真空脱气率，并且耐受各种燃料、气体、大多数化学品和辐射。标准双面气密连接器设计如下，此外也可提供定制气密连接器设计。

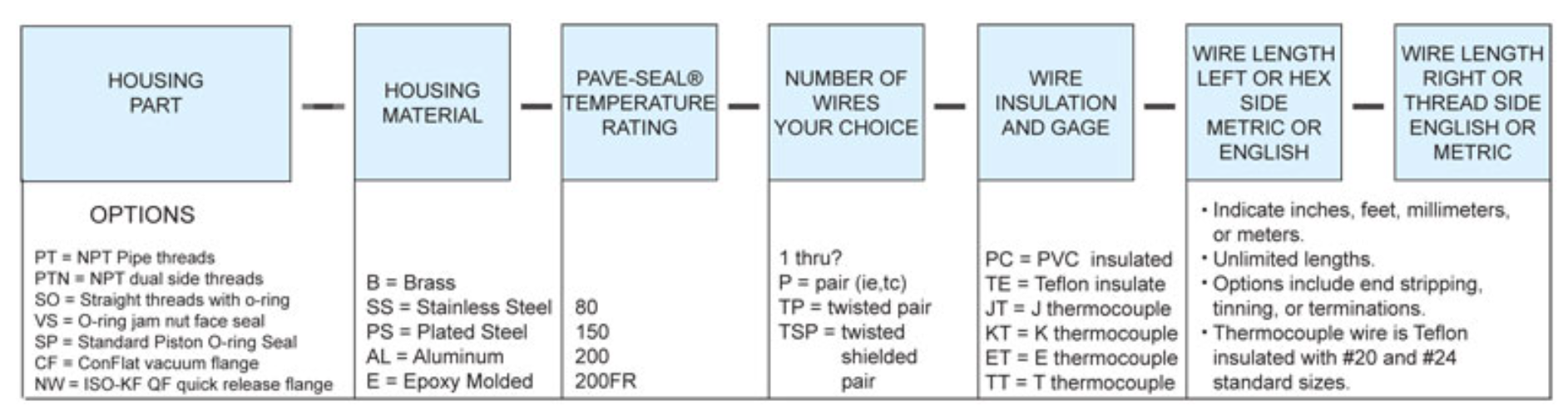

安装接口 Mil-C序列号 # Ref 总接触 PAVE 描述代码, 外壳 & 线缆 接触 AWG # Contacts AWG # 图纸号码 #
1⅞” o-ring face seal 5015 in stock 7 VS26-SS-150-7-8-3102PS See Quick Ship List 7 8 1964
1¼” o-ring face seal 26482 in stock 8 VS18-E-150-8-16-3112PS See Quick Ship List 8 16 1837
1″ o-ring face seal 26482 in stock 10 VS15L-E-150-10-20-3112PS See Quick Ship List 10 20 1656
1⅝” o-ring face seal 26482 in stock 21 VS22-E-150-21-16-3112PS See Quick Ship List 21 16 1667
1¼” o-ring face seal 38999 Series 3 in stock 37 VS18-SS-200-37-22-99920PS(V) See Quick Ship List 37 22 1525
1⅝” o-ring face seal 26482 in stock 55 VS22-E-150-55-20-3112PS See Quick Ship List 55 20 1670
1⅞” o-ring face seal 26482 in stock 61 VS26-E-150-61-20-3112PSSee Quick Ship List 61 20 1671
1⅝” o-ring face seal 38999 Series 3 in stock 79 VS22-SS-150-79-22-99920PSSee Quick Ship List 79 22 1491
1″ o-ring face seal 38999 series III inline 2 VS15L-SS-150-2-16-99920SP 2 16 4682
¾” NPT 26482 3 PT12-B-150-3-20-3112 3 20 1331
1¼” o-ring face seal 5015 pushthru 3 PUSHTHRU ASSY 5015 3#12 3 12 PT-1061
¾” o-ring face seal 26482 3 VS12L-SS-150-3-20-3112PS 3 20 1772
1″ o-ring face seal 26482 3 VS15L-E-150-3-16-3112PS 3 16 2167
1″ o-ring face seal 26482 3 VS15L-SS-150-3-20-3112PS 3 20 1956
1¼” o-ring face seal 5015 3 VS18-SS-150-3-12-3102PS 3 12 1780
1 7/8″ o-ring face seal NEMA 5-20R 3 VS26-E-150-3-20A 3 12 5071
1/16″ NPT custom 4 PT1-SS-200-4-.028Cu-QD 4 28 1125
1/16″ NPT custom 4 PT1-C276-200-4-.028Cu-QD 4 26 2581L
1/16″ NPT custom 4 PT1-C276-200-4-.028Cu-QD 4 26 2581
1-1/16″ SAE custom tabs 4 SO16-SS-200-4-14-T-T 4 14 2091
USB 2.0 Teflon PTFE shielded jumper cable, A plug micro B plug, 0.5m 5404
15.9mm piston o-ring USB C 4 SP10M-E-150-1-USB C female 16 26 5781
1″ mNPT USB 3.0 9 PT16-SS-150-1-USBAfemale CROSSOVER USB 3.0 9 26 5767
1″ NPT USB type A 2.0 4 PT16-SS-150-1-USB A female-USB A male 4 26 4371
1″ o-ring face seal USB 2.0 4 VS15L-SS-150-1-USB A female-USB A female See Quick Ship List 4884
1″ o-ring face seal USB 2.0 4 VS15L-SS-150-1-USB Amale-US BAfemale 4 20 3529
1″ o-ring face seal USB 2.0 Type 4 VS15L-SS-150-1-USBAfemale-USBAfemale USB 4 22 4435
1″ o-ring face seal 26482 4 VS15L-SS-150-4-20-3112PS 4 20 2681
30mm o-ring face seal proprietary 4 PT-VSM30-SS-150-4-16 Pushthru PAVE-Mate 4 16 PT-4114
1⅝” o-ring face seal 5015 4 VS22-E-150-4-12-3102PS 4 12 1855
42mm o-ring face seal proprietary 4 PT-VSM42-SS-150-4-12 Pushthru PAVE-Mate 4 12 PT-4109
1⅝” o-ring face seal 5015 4 VS22-E-150-4-8-3112PS 4 8 1863
1⅞” o-ring face seal 5015 4 VS26-SS-150-4-8-3102PS 4 8 2403
1½” o-ring face seal 5015 4 VS32-SS-150-4-4-3102PS 4 4 2401
2 1/2″ o-ring face seal 5015 4 VS32-SS-150-4-0-3102PS 4 0 5724
1″ NPT 26842 5 PT16-SS-150-5-16-3102PS 5 16 1395
1″ o-ring face seal 38999 Series 3 5 VS15L-SS-150-5-20-20FB5PSN 5 20 4200
1¼” o-ring face seal 26482 5 VS18-SS-150-5-16-3102PS 5 16 2418
1⅞” o-ring face seal 38999 Series 3 inline 5 VS26-SS-150-5-16-999PS 5 16 2743
¾” NPT 26482 6 PT12-B-150-6-20-3112 PMI 6 20 1332
½” NPT 26482 6 PT8-SS-150-6-22-38999/20PS 6 22 1297
1″ NPT 26482 6 PTN16-SS-150-6-20-3112SS 6 20 5655
7/8″ o-ring face seal 5015 6 VS14-SS-150-6-16-3102PS TBFH Cannon 6 16 292
1″ o-ring face seal 26482 6 VS15L-E-150-6-20-3112PSVNP 6 20 1897
1″ o-ring face seal 26482 6 VS15L-SS-150-6-20-3112PS 6 20 1722
1″ o-ring face seal firewire usb 6 VS15L-SS-150-6-28-IEEE1394 FIREWIRE 6 28 3321
11/4″ o-ring face seal IEEE-1394 6 VS18-ss-150-6-28-38999 FIREWIRE IEEE-1394 6 28 4437
1″ o-ring face seal 26482 6 VS15L-SS-150-6-20-3112SP 6 20 1564
1 1/4″ o-ring face seal 38999 Series III 6 VS18-SS-150-6-22-99920PSA (NP) 6 22 5716
1⅝” o-ring face seal 5015 6 VS22-SS-150-6-16-3102PS(NP) 6 16 2059
2 ⅝” o-ring face seal 38999 Series 3 6 VS22-SS-150-6-12-99920PS 6 12 2 0 5313
2 ½” o-ring face seal 5015 6 VS32-SS-150-4/2-4/0-3102SP 4 4 2 0 5136
1¼” o-ring face seal threaded coupling 7 VS18-SS-150-7-12-MM801PS 7 12 4694
30,1 mm o-ring face seal 38999 Series 3 7 VSM30-SS-150-7-20-38999PS 7 20 PT-4123
1¼” o-ring face seal 5015 pushthru 7 VS18P-SS-150-7-16-QDC 7 16 PT-1000
1¼” o-ring face seal 5015 pushthru 7 VS18P-SS-150-7-16-QDC 7 16 PT-1009
1⅞” o-ring face seal 5015 7 VS26-SS-150-7-8-3102PS(AU) 7 8 2029
1″ o-ring face seal 26482 8 VS15L-E-150-8-20-3112PS 8 20 1797
1¼” o-ring face seal 38999 Series 3 8 VS18-SS-150-8-20-20FC8PSN 8 20 4949
1″ NPT RJ45 Cat5 8 PT16-B-150-8-24-RJ45-RJ45 Cat5 Cat6 ethernet LAN 8 24 4777
CAT6 FEP insulated RJ45 jumper cable 5546
1¼” o-ring face seal RJ45 8P8C Ethernet 8 VS18-SS-150-8-24-RJ45-RJ45 (ETHERNET) LAN See Quick Ship List 8 24 3273
USB 3.1 Teflon PTFE shielded jumper cable, A plug micro B plug, 0.5m 5330
1″ o-ring face seal USB 3.0 female 8 VS15-SS-150-1-USB-A female CROSSOVER USB3.0 25  8 5607
3/4″ o-ring face seal USB C female 16 VS12-SS-150-1- USB-C female 28 16 5612
1″ o-ring face seal USB 3.0 8 VS15L-SS-150-1- USB-A female USB 3.0 crossover 8 24 5114
1 5/8″ o-ring face seal USB 3.0 16 VS22S-SS-150-2-USB-A female CROSSOVER USB3.0 16 25 5591
1″ o-ring face seal RJ45 Cat5-7 8 VS15FP-AL-150-8-24-RJ45-RJ45-CAT6 Ethernet LAN Hermetic & IP67 Rated with Threaded Mating Plug 8 24 3653
1″ o-ring face seal USB 3.0 8 VS15-SS-150-1-USBAfemale CROSSOVER USB3.0 IP67 8 25 5758
1⅝” o-ring face seal RJ45 CAT 5 8 VS22W-SS-150-8-24-RJ45-RJ45 CAT 5 LAN 8 24 3933
42mm o-ring face seal proprietary 8 PT-VSM42-SS-150-8-16 Pushthru PAVE-Mate 8 16 PT-4116
1¼” o-ring face seal 26482 8 VS18-SS-150-8-16-3112PS 8 16 4840
1 NPT mini-DIN 8 PT16-SS-150-8-26-MINI DIN SS 8 26 5246
1 NPT Trident IPT67 8 PT16-SS-150-8-16-TRIDENT SS IP67 8 16 5245
1¼” o-ring face seal 26482 8 VS18-SS-150-8-16-3112PS 8 16 1715
1 5/8″ o-ring face seal 38999 Series III 8 VS22-SS-150-8-16-99920PS (NP) 8 16 5714
1 5/8″ o-ring face seal 5015 8 VS22-SS-150-8-12-3102PS 8 12 5124
1⅞” o-ring face seal 5015 8 VS26-E-150-8-12-3102PS 8 12 2573
1⅞” o-ring face seal 38999 series 3 8 VS26-SS-150-8-8-99926S/20P 8 8 4455
Flange 4.33″ face seal 5015 9 FL69-SS-150-9-8-3102PS 9 8 3757
KF NW 50 flange 38999 series 3 11 NW50-SS-150-11-12-99920/26PS inline 11 12 5522
KF NW 50 flange 38999 series 3 11 NW50-SS-150-11-12-99920/26SP inline gender reverse 11 12 5523
KF NW 50 flange 38999 series 3 11 NW50-SS-150-11-12-99926/20PS inline 11 12 5525
1⅞” o-ring face seal 38999 Series 4 rev 11 VS26-SS-150-11-12-40FG11PSN(NP) 11 12 3247
1″ o-ring face seal PTFE 10 VS15L-E-150-10-20-3112SP 10 20 2415
1¼” o-ring ace seal jam nut 38999 series 3 10 VS18-SS-150-10-20-99920PS 10 20 5325
1¼” o-ring face seal 26482 10 VS18-SS-150-10-20-3112PS 10 20 1864
1⅝” o-ring face seal 5015 10 VS22-SS-150-10-16-3102PS 10 16 1481
1⅞” o-ring face seal 38999 Series 3 11 VS26-SS-150-11-12-99920PS 11 12 4427
1″ NPT 26482 12 PTN16-SS-150-4/8-16/20-3112SS 4 16 8 20 5654
1⅞” o-ring face seal 5015 12 VS26-SS-150-12-12-3102PS 12 12 1530
1″ o-ring face seal 38999 Series 3 13 VS15L-SS-150-13-22-20FB35PSN 13 22 4947
1″ o-ring face seal 38999 Series 2 13 VS15L-SS-150-13-22-27472PS 13 22 4503
1″ o-ring face seal 26482 14 VS15L-E-150-14-20-3112PS 14 20 1684
2½” o-ring face seal 5015 14 VS32-SS-150-12/2-8/16-3102SP(NP) 12 8 2 16 1758
1¼” o-ring face seal 26482 15 VS18-E-150-14/1-20/16-3112PS 14 20 1 16 1713
1″ NPT 26482 18 PT16-B-80-18-20-3112PS(NP) 18 20 2398
1¼” o-ring face seal 26482 19 VS18-E-150-19-20-3112PS 19 20 1651
1¼” o-ring face seal 26482 reversed 19 VS18-E-150-19-20-3112SP 19 20 1611
1¼” o-ring face seal 38999 Series 3 SS 19 VS18P-SS-150-19-20PS PUSHTHRU 19 20 1046
1¼” o-ring face seal 38999 Series 19 PUSH THRU MOLDED REPLACEABLE CORE 19 20 PT-1048
1¼” o-ring face seal 26482 19 VS18-SS-150-19-20-3112PS 19 20 1721
1¼” o-ring face seal 26482 19 VS18-SS-80-19-20-3112P-SC 19 20 1547
1⅝” o-ring face seal HDMI A 19 VS22-SS-150-1 HDMI A female HDMI Type A 19 26 19 5157
1⅝” o-ring face seal 5015 19 VS22-E-150-19-16-3102PS 19 16 2173
1⅞” o-ring face seal 5015 19 VS26-SS-150-19-12-99920PS See Quick Ship List 19 12 3938
1⅞” o-ring face seal 38999 Series III inline 19 VS26-SS-150-19-12-99920PS 19 12 4681
2½” o-ring face seal 38999 Series 1 inline 19 VS32-SS-150-19-12-27466PS 19 12 2738
2½” o-ring face seal 38999 Series 3 19 VS32-SS-150-19-12-99920PSN 19 12 1662-N
2¾” Conflat flange 26482 21 CF275-SS-80-21-16-3112PS 21 16
1⅞” o-ring face seal Lemo 20 VS26-SS-150-4-FG1B305-EG1B305 four Lemo pharmaceutical 20 20 5505
CLF3 sanitary fitting Lemo 20 CLF3(2.0)-316LSS-150-4-FG1B305 Lemo pharmaceutical 20 20 5503
1⅞” o-ring face seal 26482 21 V626-SS-150-21-16-3112PS 21 16 2402
1⅞” o-ring face seal 38999 Series 3 21 VS26FLT-SS-200FR-21-16-99920SPB 21 16 2232
1¼” o-ring face seal 38999 Series 3 22 VS18-SS-150-22-22-99920SPN 22 22 1661
1⅞” o-ring face seal 5015 22 VS26-E-150-18/4-16/12-3102PS (NP) 18 16 4 12 2329
1¼” o-ring face seal 26482 23 VS18-E-150-1/22-16/20-3112NP 1 16 22 20 2671
Flange 4.33″ face seal 5015 24 FL69-SS-150-24-16-3102PS 16 24 3756
1⅞” o-ring face seal 5015 24 VS26-SS-150-24-16-3102PS 24 16 1482
2¼” conflat flange 26482 26 CF275-SS-80-26-20-3112PS 26 20
1¼” o-ring face seal 26482 26 VS18-SS-150-26-20-3112PSV VITON 26 20 1637
1 5/8″ o-ring face seal 38999 Series III 26 VS22-SS-150-26-20-99920PS (NP) 26 20 5715
1⅞” o-ring face seal 5015 26 VS26-E-150-26-16-3102PS 26 16 2572
1⅞” o-ring face seal 38999 Series 1 inline 26 VS26-SS-150-26-20-27466PS 26 20 2739
1.75″ o-ring face sea 38999 Series 3 28 D38999/24-AL-150-8/16/4-TPE17/22/16-96 8 & 4 17 & 16 16 22 4992
1⅞” o-ring face seal 26482 31 VS26-E-150-31-16-3112PS 31 16 1957
1 5/8″ o-ring face seal Mini-SAS 32 VS22-SS-150-1-miniSAS-miniSAS 32 30 5639
1.5″ o-ring face seal 38999 Series 3 32 D38999/24-AL-150-32-TPE24-96 32 24 4991
1⅝” o-ring face seal 26482 32 VS22-SS-150-32-20-3112PS 32 20 1848
1⅝” o-ring face seal 38999 Series 3 32 VS22-SS-150-32-20-3899920PS(NP) 32 20 3332
2½” o-ring face seal 5015 35 VS32-SS-150-35-16-3102SP 35 16 5137
2½” o-ring face seal 5015 35 VS32-E-150-28/7-16/12-3102PS(NP) 28 16 7 12 1958
1 1/4″ o-ring face seal 38999 Series III 37 VS18-SS-150-37-22-99920PS (NP) 37 22 5717
KF NW 50 flange 38999 series 3 37 NW50-SS-150-37-22-99920/26PS inline 37 22 5521
KF NW 50 flange 38999 series 3 37 NW40-SS-150-37-22-99920/26PS inline 37 22 5528
1¼” o-ring face seal 5015 pushthru 37 VS18P-SS-150-37-22-QDC 37 7 PT3178
1⅞” o-ring face seal 38999 Series 2 37 VS26-SS-150-37-22-27472PS 37 22 4464
1⅞” o-ring face seal 38999 Series 3 inline 37 VS26-SS-150-37-22-999PS 37 22 2744
1⅞” o-ring face seal 5015 37 VS26-E-150-37-16-3102PS 37 16 1583
2½” o-ring face seal 5015 37 VS32-SS-150-37-16-3102SP(NP) 37 16 1759
1⅞” o-ring face seal 38999 Series 3 37 VS26-SS-150-37-16-99926/20 37 16 4457
1⅞” o-ring face seal 38999 Series 3 inline 39 VS26-SS-150-37/2-20/16-999PS 37 20 2 16 2742
1⅝” o-ring face seal 26482 41 VS22-E-150-27/14-20/16-3112PS 27 20 14 16 1490
1⅝” o-ring face seal 26482 41 VS22-SS-150-41-20-3112PS 41 20 1691
1⅞” o-ring face seal 38999 Series 4 41 VS26-SS-150-41-20-40FG41PSN(NP) 41 20 3251
1⅞” o-ring face seal 38999 Series 1 inline 41 VS26-SS-150-41-20-27466PS 41 20 2735
2½” o-ring face seal 5015 48 VS32-E-150-48-16-3102PS 48 16 1669
2½” o-ring face seal 5015 48 VS32-SS-150-48-16-3102PS(A95) goldplated 48 16 2397
2¼” o-ring face seal 5015 48 VS36UN-SS-150-48-16-3102SP 48 16 4512
NW KF Flange 5015 48 NW63-SS-150-48-16-3102PS 48 16 3856
1⅞” o-ring face seal MDR 52 VS26-SS-150-52-26-MDR-MDR 52 26 4754
2½” o-ring face seal 5015 52 VS32-E-150-52-16-3102PS 52 16 3584
1⅞” o-ring face seal 38999 series 3 inline 53 VS26-SS-150-53-20-99926/20 53 20 4456
Flange 3″ diameter 26482 55 Flange mount 3″ OD double seal with test ports 55 20 0359
KF NW 50 flange 38999 series 3 55 NW50-SS-150-55-22-99920/26PS inline 55 20 5524
1½” o-ring face seal 26482 55 VS20UNEF-SS-150-55-20-3112PS 55 20 4513
1⅝” o-ring face seal 26482 55 VS22-E-200-55-20-3112PS (NP) 55 20 3613
1⅞” o-ring face seal 38999 Series 3 55 VS26-SS-150–55-22-99920PS 55 22 3566
1⅞” o-ring face seal 38999 Series 3 55 VS26FLT-SS-200FR-55-22-99920SPA 55 22 2231
1⅞” o-ring face seal 38999 Series 4 reverse 55 VS26-SS-150-55-22-40FE35SP(NP) 55 >22 3244
1 5/8″ o-ring face seal 38999 Series 1 55 VS22-SS-150-55-22-27466PS (NP) 55 22 55 5693
1⅞” o-ring face seal 38999 Series 1 inline 55 VS26-SS-150-55-20-27466PS 55 20 2732
1⅞” o-ring face seal 26482 inline 55 VS26-SS-150-55-20-3470PS 55 20 2733
>1⅞” o-ring face seal 38999 Series 4 55 VS26-SS-150-55-20-40FH55SPN 55 20 1781
1⅞” o-ring face seal 38999 series 2 55 VS26-SS-150-55-22-27472PS 55 22 4463
pm1 inline 55 VS26-SS-150-55-22-2746PS 55 22 2745
1 7/8″ o-ring face seal 38999 Series III 56 VS26-SS-150-8/48-16/20-99920PS 8 16 48 20 5271
1 7/8″ o-ring face seal 38999 series I inline 61 VS32-SS-150-61-20-27466PS 61 20 2730
1⅞” o-ring face seal 26482 inline 61 VS26-SS-150-61-20-3470PS Type T thermocouple contacts 20 2734
1⅞” o-ring face seal 38999 Series 2 inline 61 VS26-SS-150-61-20-27472PS 61 20 2731
1⅝” o-ring face seal 38999 Series 3 66 VS26-SS-150-66-22-20FF35SP 66 22 4199
1⅞” o-ring face seal 26482 61 VS22UNEF-SS-150-61-20-3112PS 61 20 4514
2.75″ o-ring face seal 26482 61 VS25-SS-150-61-20-3112PS 61 20 415
1⅞” o-ring face seal 38999 Series 1 inline 66 VS26-SS-150-66-22-27466PS 66 22 2736
2½” o-ring face seal MDR 78 VS32-SS-150-78-26-MDR-MDR 4662
1⅞” o-ring face seal 38999 Series 4 reverse 79 VS26-SS-150-79-22-40FG35SPN(NP) 79 22 3249
1⅝” o-ring face seal 38999 Series 3 79 VS22-SS-150-79-22-99920SP 79 22 1492
1⅞” o-ring face seal 38999 Series 1 inline 79 VS26-SS-150-79-22-27466PS 79 22 2740
1⅞” o-ring face seal 38999 Series 2 inline 79 VS26-SS-150-79-22-27472PS 79 22 2737
1⅞” o-ring face seal 38999 Series 3 inline 79 VS26-SS-150-79-22-999PS 79 22 2727
2¾” o-ring face seal 5015 85 VS44-SS-150-85-16-3102PS 85 16 4380
1⅞” o-ring face seal 38999 Series 3 100 VS26FLT-SS-200FR-100-22-99920SPC 100 22 2233
1⅞” o-ring face seal 38999 Series 1 inline 100 VS26-SS-150-100-22-27466PS 100 22 2728
1⅞” o-ring face seal 38999 Series 2 inline 100 VS26-SS-150-100-22-27472PS 100 22 2741
1⅞” o-ring face seal 38999 Series 2 inline 100 VS26-SS-150-100-22-27472PS 100 22 2729
1⅞” o-ring face seal 100 VS26-SS-150-100-22-40fh35sp* 100 22 2937
1⅞” o-ring face seal 38999 Series 3 inline 100 VS26-SS-150-100-22-999PS 100 22 2726
1 7/8″ o-ring face seal 38999 Series 3 128 VS26-SS-150-128-22-99920PS space grade! 128 22 5738
1⅞” o-ring face seal 38999 Series 3 128 VS26-SS-150-128-22-99920PS 128 22 3567
1⅞” o-ring face seal 38999 Series 4 128 VS26-SS-150-128-22-40FJ35SP 128 22 2936
https://www.bihec.com/pave-technology/

询价采购PAVE-Mate® I 气密双面贯通连接器

请用微信扫描下方二维码或手动添加微信号2351992198

PAVE-Mate® I 气密双面贯通连接器

每天我们通过设于欧洲、美国、香港、上海的办公室，在世界各地引进成套设备与技术，采购备品备件，将全球工业产品和技术带到中国，为中国客户提供技术咨询，产品应用和售后培训服务。原厂直接采购，一手货源，拼单发货，最低价格，最短交期，让客户进口采购变得省钱、省时、省心。

Next

业务范围

我们为各行业客户提供专业的进口采购、付汇结算、报关报检、仓储物流的数字化采购解决方案。

Next

服务优势

行业领先的公司采用我们的平台和服务，通过我们全球多个办事处采购企业发展所需的物资，缩短供应链货期，以提高效率和控制成本。

Next

联系PAVE-Mate® I 气密双面贯通连接器

微信扫描下方二维码或手动添加微信号2351992198
