美国Nuphoton Technologies Inc 光纤放大器掺铥光纤放大器 TDFA-CW-1940-RS-30-27-FCA

掺铥光纤放大器

Nuphoton Technologies, Inc.是光纤激光器和光纤放大器的先驱，其应用领域涵盖工业，国防，航空航天，生物医学，电信和研究领域。该公司自1996年开始运营，使用专有的尖端技术设计和制造高性能光纤激光器、EDFA和宽带ASE源。掺铥光纤放大器型号:TDFA-CW-1940-RS-30-27-FCA 掺铥光纤放大器产品代码:1709 微处理器控制 掺铥光纤放大器 TDFA-CW-1940-RS-30-27-FCA 产品规格

Parameters	Specifications
Wavelength Range	1910 – 1940 nm
Gain Flattening Filter	Not included
Output Power	+30 dBm, tested with 1940 nm, +3 dBm input
Gain	27 dB, tested with 1940 nm, +3 dBm input
Optical Input Fiber	900um loose tube, FC/APC, blue, 1 meter, SM1950
Optical Output Fiber	900um loose tube, FC/APC, red, 1 meter, SM1950
Input Power Monitoring Range	-5 dBm to +5 dBm
Output Power Monitoring Range	+20 to +31 dBm
Input Power Measurement Accuracy	≤ +/- 0.5 dB, 1940 nm
Output Power Measurement Accuracy	≤ +/- 0.5 dB, 1940 nm
Control and Communication Interface	RS-232, RS232 Voltage Level
Dimension	274 x 130 x 49 mm
Power Input	+24 VDC +/- 5%

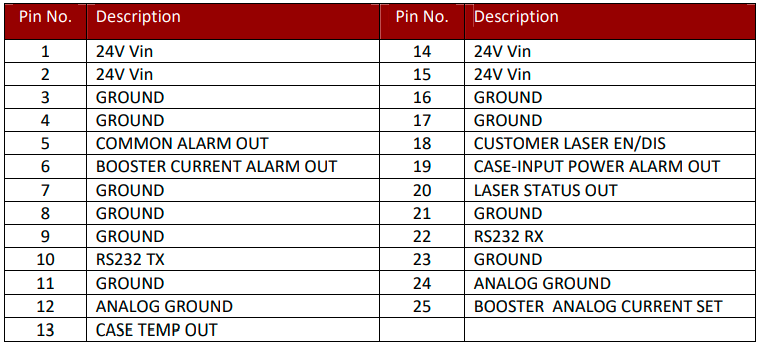

Electrical Interface Connector	PN: 173-E25-113R001 Male 25-PIN
Operational Case Temperature Range	0 to +60 ⁰C
Mode of Operation	ACC (constant pump current control)
