Carver实验室台式手动热压机、Carver 3856、Carver 5420、Carver 4386、Carver 4122、Carver 4126、Carver 4120、Carver 4128
Carver实验室台式手动热压机、Carver 3856、Carver 5420、Carver 4386、Carver 4122、Carver 4126、Carver 4120、Carver 4128

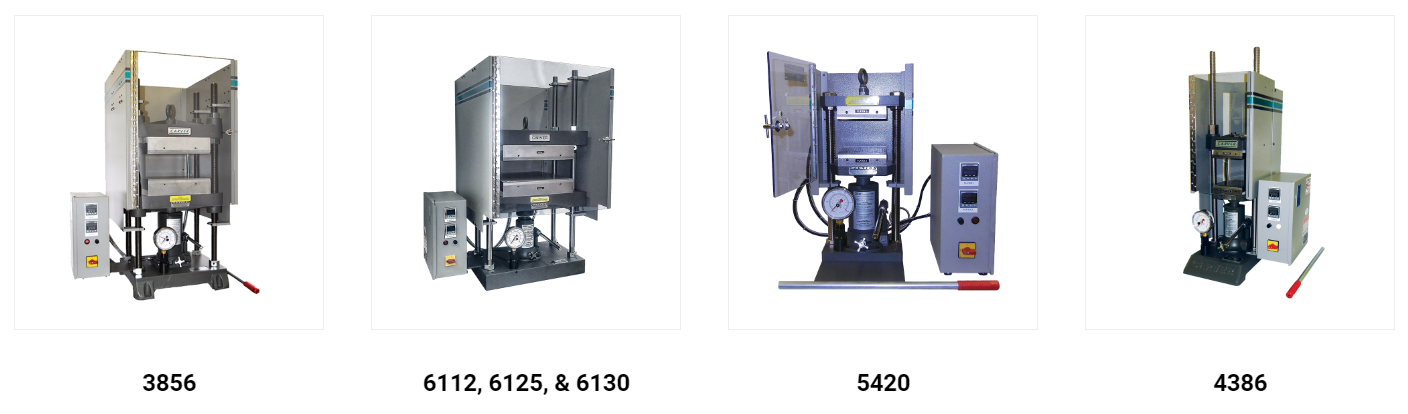

Carver实验室台式手动热压机具有数字温度控制和安全防护罩，可提供12吨、25吨和30吨的容量以及两个和四个立柱的配置。它们用于实验室环境中各种材料的成型、层压、压花和粘合。
| Catalog Number | 5420 | 4386 | 4120 | 4122 | 6112 | 4123 | 4389 | 3856 | 6125 | 4126 | 4128 | 6130 | 4129 |
| Model | Mini CH | CH | 12-10H | 12-12H | 12-15H | 12-12-2H | MH | 25-12H | 25-15H | 25-12-2H | 30-12H | 30-15H | 30-12-2H |
| Old Press Number | 2086 | 3725 & 2625 | 2697 & 2627 | 3377 & 2729 | 2089 | 2518 | 2730 | 2699 & 2629 | 2731 | ||||
| Clamping Force: U.S. Tons | 12 | 12 | 12 | 12 | 12 | 12 | 25 | 25 | 25 | 25 | 30 | 30 | 30 |
| Clamping Force: (lb) | 24,000 | 24,000 | 24,000 | 24,000 | 24,000 | 24,000 | 50,000 | 50,000 | 50,000 | 50,000 | 60,000 | 60,000 | 60,000 |
| Max. Temperature (°F) | 650° | 650° | 650° | 650° | 650° | 650° | 650° | 650° | 650° | 650° | 650° | 650° | 650° |
| Platens (in) | 6 x 6 | 6 x 6 | 10 x 7 | 12 x 12 | 15 x 15 | 12 x 12 | 9 x 9 | 12 x 12 | 15 x 15 | 12 x 12 | 12 x 12 | 15 x 15 | 12 x 12 |
| Ram Stroke (in) | 5.1 | 5.1 | 5.1 | 5.1 | 5.1 | 5.1 | 6.5 | 6.5 | 6.5 | 6.5 | 6 | 6 | 6 |
| Daylight Opening (in) | 0 to 4 | 0 to 15 | 0 to 9 | 0 to 10 | 3-3/4 to 13 | 2 @ 2.5 | 0 to 12 | 0 to 9.5 | 2-1/2 to 13 | 2 @ 2.5 | 0 to 12 | 2 to 13 | 2 @ 3 |
| Overall Size w x d (in) | 19 x 16 | 19 x 16 | 26 x 18 | 29 x 27 | 32 x 31 | 29 x 27 | 23 x 24 | 29 x 27 | 32 x 31 | 29 x 27 | 32 x 27 | 41 x 31 | 37 x 29 |
| Height (in) | 25 | 41 | 39 | 44 | 43.5 | 46 | 43.5 | 42 | 43.5 | 46 | 46 | 43.5 | 46 |
| Weight (lb) | 225 | 260 | 512 | 851 | 1330 | 1118 | 440 | 864 | 1,343 | 1131 | 835 | 1379 | 1164 |
