Winkler AG 3 m ,BSMS2C24#1T160000 加热线

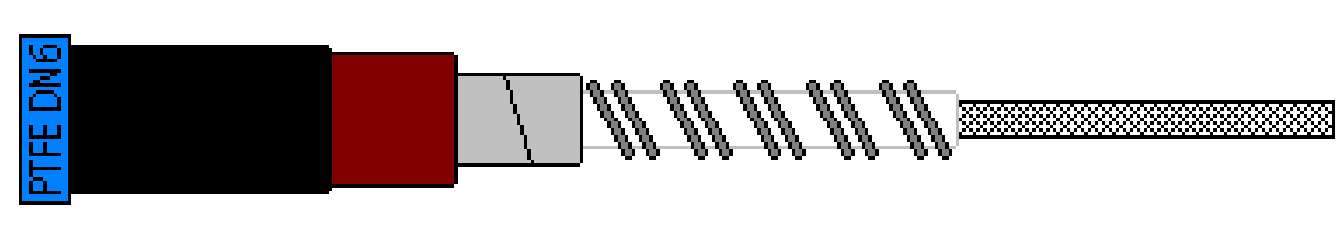

composed of:

Outer cover "S2": black silicone skin (washable) (OD ~43 mm).

Thermal insulation: thermal fleece (Tmax 200°C) / glas silk (Tmax 250°C) and

silicone foam.

Heat tracing "C24": Fluorpolymer insulated heating cable 230 VAC (+/-10%)

humidity-proof with protective braiding.

100 W/m constant power. Tmax 200°C (power ON/OFF).

Max. lengths of heating circuit:

23,0 m (10 A, 2.300 W); 36,8 m (16 A, 3.680 W)

46,0 m (20 A, 4.600 W); max. 51,5 m (22,37 A, 5.145 W)

Line canNOT be cut to length! A controller is required.

Inner line "1T16": 1 x PTFE natural with metal braiding Tmax 260°C.

NON-interchangeable, DN 6 (ID ~6 mm / OD ~8 mm).

(corresponding dimensions of tube stub fittings: ID 6,0 mm / OD 8,0 mm)
