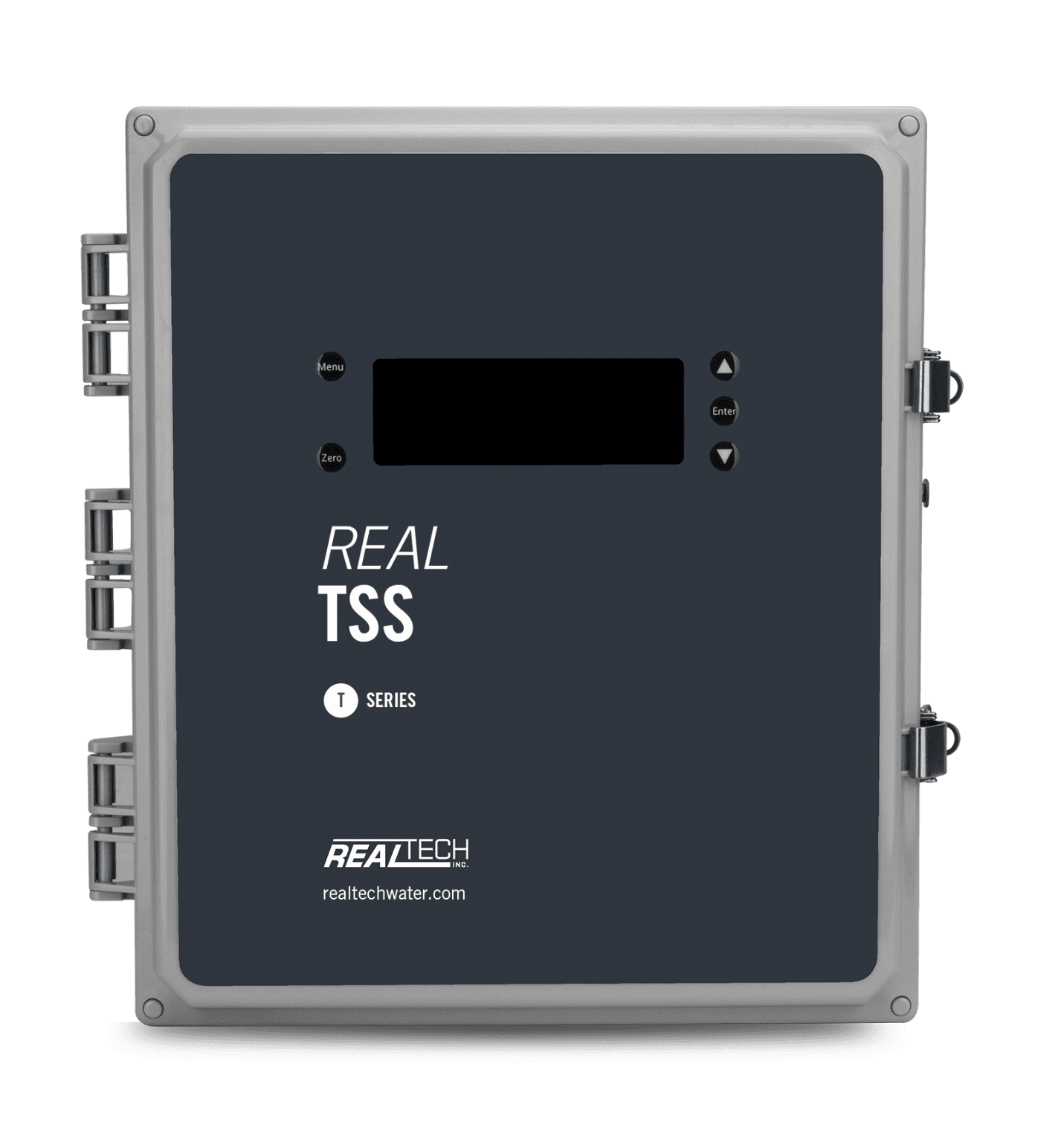

加拿大Real Tech REAL TSS ANALYZER 便携式悬浮物测试仪
加拿大Real Tech REAL TSS ANALYZER 便携式悬浮物测试仪
TSS分析仪 Real Tech的在线TSS分析仪为实时总悬浮固体(TSS)监测提供了一种价格合理且准确的解决方案。得益于Real Tech创新的Split Sense Pro技术,校准需求有限,降低了维护要求。几种路径长度选项为所需的测量范围提供了解决方案。 功能和优点 实用、准确且价格合理 实时总悬浮固体(TSS)分析 安装和操作简单 低维护、旁路式设计 4行x 20字符背光LCD显示屏 可选的自动化学清洗系统CHARACTERISTIC | TECHNICAL DATA |
Path Lengths | 1, 2, 4, 8 mm (2000 series) 25, 50, 100, 150 mm (4000 series) |
Parameters | Total Suspended Solids (TSS) |
Range | Depends on model selected. Refer to range chart on next tab. |
Units | mg/L, ppm |
Sampling Time | 10 seconds |
Calibration | Factory parameter calibration allows field adjustment as required. |
Cleaning | In-situ cleaning makes cleaning quick and easy. Automatic chemical cleaning is optional. |
Self-Diagnostic | Detection and diagnosis of internal system fault |
Operator Interface | Five push buttons to control a comprehensive hierarchical menu system |
Display | 4 line x 20 character backlit LCD with LED alarm indicator |
Alarms | Dry contact terminals allow for operator configurable alarms for: high and low set points, low lamp output, leak detected, system fault, etc. |
Humidity Control | Humidity sensor with large regeneratable desiccant system |
Outputs | Self-powered 4-20mA, RS232 serial for PC |
Wavelength | Near infrared (NIR) |
Light Source | LED |
Flow Rate | 300 - 1000 mL/min |
Pressure Rating | 20 PSI maximum |
Fluid Connections | 1/4" OD tube push-in fittings |
Wetted Materials | Kynar, Polyethylene, Quartz, SS 316L, Viton |
Electrical | 24VDC 40W power adapter (accepts 90-250VAC 50/60Hz) |
Ambient Temp. | 0 to 45°C (32 to 113°F) |
Water Temp. | 0 to 90°C (32 to 194°F) at 21°C (69.8°F) Ambient temperature |
Storage Temp. | -20 to 60°C (-4 to 140°F) |
Enclosure | NEMA 4X, wall mountable |
Weight | 22 lb (2000 series) 24 lb (4000 series) |
Dimensions | 17”H x 14.25”W x 7.5”D (2000 series) 17.75”H x 15.5”W x 6.75”D (4000 series) |
Warranty | 2-year limited warranty (Extended care packages available) |
Analyzer Upgrades | Cellular Modem, Dual Transmitter |
