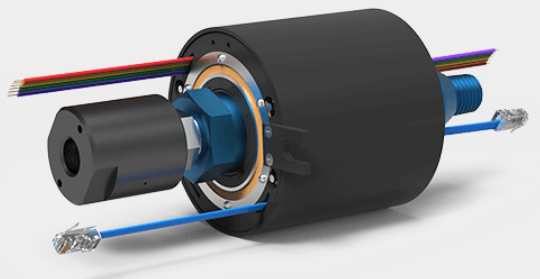

旋转接头/滑环组合套件
流体+电气一体化解决方案
标准（现货）组件
通过采用我们成熟且即时可用的标准产品，大幅缩短您的设计时间。我们提供多种标准旋转接头与集成电滑环的组合方案。
选型指南：
首先选择符合您需求的DSTI标准流体旋转接头；
随后选配电滑环模块进行集成。
DSTI与领先的滑环制造商建立了紧密合作，致力于提供完全根据您需求量身定制的流体与电气集成解决方案。无论是改进现有设计，还是从零开发全新产品，我们都拥有丰富的经验和专业技术，为您打造最适合应用场景的产品，助力项目成功。
IR-1040604
- Industry: Factory Automation
- Flow Passages: 4 – 5
- Passage Size: Under 0.125″
- Speed: 100 RPM & Over
- Pressure: 200 – 6,499 PSI
- Media: Oil
NF-1540008
- Industry: Factory Automation
- Flow Passages: 13 & Over
- Passage Size: 0.250″ – 0.374″
- Speed: 25 – 99 RPM
- Pressure: 0 – 199 PSI
- Media: Gas
OJ-0760403
- Industry: Factory Automation
- Flow Passages: 3
- Passage Size: 0.500″ – 0.749″
- Speed: 0 – 24 RPM
- Pressure: 0 – 199 PSI
- Media: Water
QB-1410005
- Industry: Factory Automation
- Flow Passages: 4 – 5
- Passage Size: 2.000″ & Over
- Speed: 100 RPM & Over
- Pressure: 0 – 199 PSI
- Media: Other
LD-0640902
- Industry: Aerospace
- Flow Passages: 2
- Passage Size: 2.000″ & Over
- Speed: 0 – 24 RPM
- Pressure: 0 – 199 PSI
- Media: Coolant
WF-0690408
- Industry: Factory Automation
- Flow Passages: 8 – 12
- Passage Size: 0.500″ – 0.749″
- Speed: 0 – 24 RPM
- Pressure: 0 – 199 PSI
- Media: Gas
VO-0550010
- Industry: Aerospace
- Flow Passages: 8 – 12
- Passage Size: 0.500″ – 0.749″
- Speed: 0 – 24 RPM
- Pressure: 200 – 6,499 PSI
- Media: Cryogenics
TU-1910021
- Industry: Oil & Gas
- Flow Passages: 13 & Over
- Passage Size: 0.375″ – 0.499″
- Speed: 25 – 99 RPM
- Pressure: 200 – 6,499 PSI
- Media: Oil
