电流通过充满气体的石英管排出，产生热等离子体。这种等离子体辐射出强烈的光，这些光可以耦合到激光晶体中，以光学方式激发激光介质。对于Nd:YAG激光器，通常选择充满稀有气体氙和氪的灯，因为它们在Nd原子的激发光谱中辐射光的波长时最有效，并且容易被Nd:YAG晶体吸收。闪光灯以脉冲模式操作;它们放电高电流脉冲(数百安培)，持续时间从0.1毫秒到20.0毫秒。填充压力通常小于一个大气压，以帮助防止在高能电流脉冲期间发生爆炸。

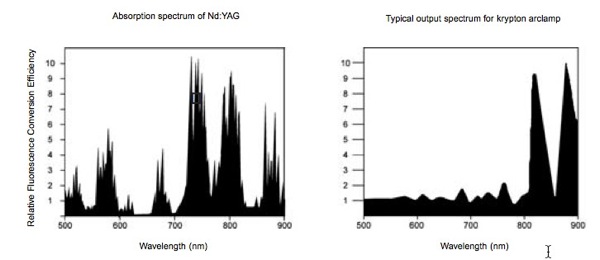

在低功率密度下，氪填充灯产生的光谱输出与Nd:YAG吸收光谱有效匹配。在更高的功率密度下，氙成为更有效的填充气体。
管道，电极，石英到金属密封，气体灌装，连接器，测试在激光灯的制造过程中必须遵守极其严格的质量控制和防污染程序。

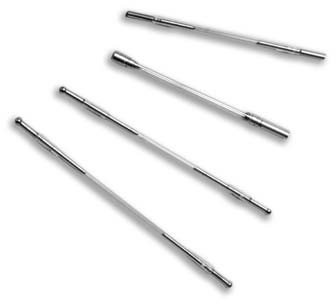

灯罩由高品质石英管制成。天然熔融石英是最常用的，然而，一些固态激光材料是由深紫外辐射激发，由天然石英过滤。一方面，对于这些激光器合成石英管，传输到更深的紫外线。另一方面，Nd:YAG激光器是由掺有铈或钛的石英管制成的，它们比天然石英能过滤更多的紫外线。夹子通常采用薄壁管(通常0.5毫米)，以更好地传热到冷却液。不同尺寸的灯管融合在一起，形成一个具有增强性能特征的灯罩。
激光闪光灯主要特点
高亮度
高功率
长工作寿命
运行成本低
可靠性、稳定性
高阻抗
气压大
激光闪光灯主要应用
固体激光器的光泵源
连续泵浦的直流弧灯
脉冲泵浦的激光闪光灯
CW应用
Laser Flash Lamp and Laser Arc Lamp Cross Reference Guide
| DESCRIPTION | MANUFACTURER | DLI PART NO. |
| APOLLO | ||
| FLASH LAMP | APOLLO 1610 | LMP-10014 |
| FLASH LAMP | APOLLO 1630 | LMP-10079 |
| AB/BAASEL | ||
| FLASH LAMP | AB/BAASEL/LPKF | LMP-12464 |
| FLASH LAMP | AB/BAASEL/LPKF, CDQ | LMP-12505 |
| CANDELA | ||
| FLASH LAMP | CANDELA, SPTL | LMP-12528 |
| FLASH LAMP | CANDELA LASER #9906-CN-27-7 | LMP-13854 |
| CELL ROBOTICS | ||
| FLASH LAMP | CELL ROBOTICS CUSTOM | LMP-12520 |
| COHERENT | ||
| FLASH LAMP | COHERENT M34, KRYPTON | LMP-11097 |
| FLASH LAMP | COHERENT M34, P1165 | LMP-11762 |
| FLASH LAMP | COHERENT MEDICAL, VP SELECT | LMP-12529 |
| FLASH LAMP | COHERENT OMEGA | LMP-10782 |
| FLASH LAMP | COHERENT 14” | LMP-14793 |
| FLASH LAMP | COHERENT MODEL 11 & 14 GLASS | LMP-10692 |
| CONTROL | ||
| FLASH LAMP | CONTROL 400 | LMP-10013 |
| CONVERGENT | ||
| FLASH LAMP | CONVERGENT P50/AURORA | LMP-12524 |
| EKSPLA | ||
| FLASH LAMP | EKSPLA LASER, P1194 | LMP-13611 |
| FLASH LAMP | EKSPLA LASER, P1195 | LMP-13610 |
| ELECTROX | ||
| FLASH LAMP | ELECTROX, 262-000-006 | LMP-10006 |
| FLASH LAMP | ELECTROX, 5.5” ARC, 635-000-013 | LMP-10004 |
| FLASH LAMP | ELECTROX, 5.5” ARC, 635-000-013, LOW IMPED | LMP-11073 |
| FLASH LAMP | ELECTROX, PULSED MARKER, 262-000-003 | LMP-10027 |
| FLASH LAMP | ELECTROX, PULSED, 262-000-012 | LMP-10002 |
| FLASH LAMP | ELECTROX, PULSED, 262-000-019 | LMP-10362 |
| GSI LUMONICS | ||
| FLASH LAMP | LUMONICS JK701, LONG PULSE | LMP-11563 |
| FLASH LAMP | LUMONICS JK702, SCREENCUT | LMP-12561 |
| FLASH LAMP | LUMONICS MULTIWAVE | LMP-11453 |
| FLASH LAMP | LUMONICS/JK HYSERIES | LMP-11287 |
| FLASH LAMP | LUMONICS/JKMS20 | LMP-11201 |
| FLASH LAMP | LUMONICS/JKMS300 | LMP-10007 |
| FLASH LAMP | LUMONICS/JKMS330/830 | LMP-10016 |
| FLASH LAMP | LUMONICS/JKMS330/830, QARC | LMP-10833 |
| FLASH LAMP | LUMONICS/JKMS35 | LMP-11392 |
| FLASH LAMP | LUMONICS/JKMS701/702 | LMP-10485 |
| FLASH LAMP | LUMONICS/JKMS704 | LMP-11012 |
| FLASH LAMP | LUMONICS/JKMS704, SPECIAL | LMP-11408 |
| FLASH LAMP | LUMONICS/JK701, HIGH ENERGY | LMP-11724 |
| FLASH LAMP | LUMONICS LUXSTAR | LMP-11421 |
| FLASH LAMP | LUMONICS LUXSTAR, LOW POWER | LMP-12560 |
| HOBART | ||
| FLASH LAMP | HOBART, 3KW | LMP-11857 |
| HOYA | ||
| FLASH LAMP | HOYA MEMORY REPAIR | LMP-13975 |
| IQL30 | ||
| FLASH LAMP | IQL30 | LMP-12031 |
| KORAD | ||
| FLASH LAMP | KORAD KWD | LMP-10026 |
| LASAG | ||
| FLASH LAMP | LASAG, 64.0153 | LMP-13053 |
| FLASH LAMP | LASAG, 64.0302 | LMP-10980 |
| FLASH LAMP | LASAG, 64.0308 | LMP-10809 |
| FLASH LAMP | LASAG, 64.0309 | LMP-11357 |
| FLASH LAMP | LASAG, 64.0323 | LMP-11022 |
| FLASH LAMP | LASAG, 64.0324 | LMP-10812 |
| FLASH LAMP | LASAG, 64.0371 | LMP-11551 |
| FLASH LAMP | LASAG, 64.0372 | LMP-11297 |
| FLASH LAMP | LASAG, 64.0372, LOW IMPEDANCE | LMP-11674 |
| FLASH LAMP | LASAG, 64.0551 | LMP-12264 |
| FLASH LAMP | LASAG, 64.0552 | LMP-13916 |
| FLASH LAMP | LASAG, 64.0579 | LMP-11918 |
| FLASH LAMP | LASAG, KOS-102 | LMP-13246 |
| LASER INDUSTRIES | ||
| FLASH LAMP | LASER INDUSTRIES | LMP-10635 |
| LASERONICS | ||
| FLASH LAMP | LASERONICS 4900 | LMP-11632 |
| LASERVALL | ||
| FLASH LAMP | LASERVALL PL15 | LMP-13295 |
| FLASH LAMP | LASERVALL PL50 | LMP-13296 |
| LEE | ||
| FLASH LAMP | LEE 650M | LMP-12523 |
| LPKF | ||
| FLASH LAMP | LPKF 800×800 | LMP-13353 |
| MBB | ||
| FLASH LAMP | MBB ML-2 LASER | LMP-12452 |
| MLS | ||
| FLASH LAMP | MLS P500F | LMP-11219 |
| NEC | ||
| FLASH LAMP | NEC P2014/2019 | LMP-12751 |
| FLASH LAMP | NEC YL476A | LMP-11410 |
| NIHON | ||
| FLASH LAMP | NIHON | LMP-16281 |
| QUANTA RAY | ||
| FLASH LAMP | QUANTA RAY DCR II, III | LMP-10852 |
| FLASH LAMP | QUANTA RAY, DCR I | LMP-10936 |
| QUANTEL | ||
| FLASH LAMP | QUANTEL | LMP-10983 |
| FLASH LAMP | QUANTEL 581C | LMP-10851 |
| FLASH LAMP | QUANTEL 611 | LMP-11218 |
| FLASH LAMP | QUANTEL, 203-0019 | LMP-11152 |
| FLASH LAMP | QUANTEL, 581-10 & 581-20 | LMP-10068 |
| RAYTHEON | ||
| FLASH LAMP | RAYTHEON 347/384 | LMP-10024 |
| FLASH LAMP | RAYTHEON 484 | LMP-10029 |
| FLASH LAMP | RAYTHEON 500/550 | LMP-10010 |
| FLASH LAMP | RAYTHEON 500/550, XENON | LMP-10012 |
| FLASH LAMP | ASSEMBLY, RAYTHEON SS500, REBUILD | LMP-14801 |
| FLASH LAMP | ASSEMBLY, RAYTHEON SS550 | LMP-14767 |
| FLASH LAMP | ASSEMBLY, RAYTHEON SS550, REBUILD | LMP-14800 |
| ROFIN SINAR | ||
| FLASH LAMP | ROFIN SINAR, RS500 | LMP-11193 |
| SHARPLAN | ||
| FLASH LAMP | SHARPLAN 2100 | LMP-11631 |
| FLASH LAMP | SHARPLAN EPILIGHT | LMP-16325 |
| SLT | ||
| FLASH LAMP | SLT, CLMP | LMP-12775 |
| SPACE RAY | ||
| FLASH LAMP | SPACE RAY-136, W/O TRIGGER WIRE | LMP-11730 |
| THERMOLASE | ||
| FLASH LAMP | THERMOLASE SOFTLIGHT | LMP-16366 |
| TOSHIBA | ||
| FLASH LAMP | TOSHIBA, 300 WATT LASER | LMP-10025 |
| FLASH LAMP | TOSHIBA, LAY806 | LMP-11291 |
| FLASH LAMP | TOSHIBA 150 WATT LASER | LMP-10904 |
| TRIMEDYNE | ||
| FLASH LAMP | TRIMEDYNE | LMP-16326 |
| TRUMPF/HAAS | ||
| FLASH LAMP | HAAS, HL703-HL3003 | LMP-14527 |
| UNITEK MIYACHI | ||
| FLASH LAMP | UNITEK MIYACHI, LW10, LW15, LOW PULSE | LMP-13813 |
| FLASH LAMP | UNITEK MIYACHI, LW250, LW300 | LMP-12098 |
| FLASH LAMP | UNITEK MIYACHI, LW51, LW52, LW100 | LMP-11643 |
| FLASH LAMP | UNITEK MIYACHI, LW50A, LW70A | LMP-13052 |
| Arc Lamps | ||
| AB/BAASEL | ||
| DESCRIPTION | MANUFACTURER | PART NO. |
| ARC LAMP | AB/BAASEL 2000/6000, 20 AMP | LMP-12704 |
| ARC LAMP | AB/BAASEL 2000/6000, 30 AMP | LMP-13023 |
| ARC LAMP | AB/BAASEL LASER, CLC512 | LMP-10495 |
| ARC LAMP | AB/BAASEL LASER, NEW STYLE | LMP-11288 |
| ARC LAMP | AB/BAASEL, 145 VOLTS | LMP-14406 |
| ARC LAMP | AB/BAASEL, STARMARK 150 | LMP-14040 |
| ARC LAMP | AB/BAASEL LASER, 100 WATT | LMP-11139 |
| COHERENT | ||
| ARC LAMP | COHERENT ANTARES | LMP-11064 |
| ARC LAMP | COHERENT MARKER M815 | LMP-10008 |
| ARC LAMP | COHERENT/KIGRE, MODEL 7000-9000 | LMP-16327 |
| CONTROL | ||
| ARC LAMP | CONTROL 258/520 | LMP-10022 |
| ARC LAMP | CONTROL 258/520, W/GOLD COATED ENDS | LMP-11726 |
| ARC LAMP | CONTROL 2660 | LMP-10019 |
| ARC LAMP | CONTROL 510 | LMP-10021 |
| ARC LAMP | CONTROL 510 (OLD) | LMP-10496 |
| ARC LAMP | CONTROL 512 | LMP-10018 |
| ARC LAMP | CONTROL 612, 50 WATT | LMP-11539 |
| ARC LAMP | CONTROL 632 | LMP-11272 |
| ARC LAMP | CONTROL ELITE, 100 WATT | LMP-10598 |
| ARC LAMP | CONTROL INSIGNA/ICON | LMP-12435 |
| ARC LAMP | HIGH POWER, CONTROL 258/520 | LMP-10717 |
| COOPER | ||
| ARC LAMP | COOPER 2500 | LMP-14817 |
| CRAWFORD | ||
| ARC LAMP | CRAWFORD | LMP-13502 |
| ELECTROX | ||
| ARC LAMP | ELECTROX, 120 WATT | LMP-10001 |
| ARC LAMP | ELECTROX, DC ARC, 75 WATT | LMP-10003 |
| ARC LAMP | ELECTROX, HV, 75 WATT | LMP-10005 |
| ESI | ||
| ARC LAMP | ESI 3570 | LMP-10015 |
| ARC LAMP | ESI 3570, LOW VOLTAGE | LMP-11407 |
| FANUC | ||
| ARC LAMP | FANUC | LMP-14520 |
| FOBA | ||
| ARC LAMP | FOBA, 100 WATT | LMP-14366 |
| ARC LAMP | FOBA, 200 WATT | LMP-14799 |
| FUJI | ||
| ARC LAMP | FUJI MARKER | LMP-11420 |
| KORAD | ||
| ARC LAMP | KORAD KY3 | LMP-10009 |
| ARC LAMP | KORAD KY-5 | LMP-10020 |
| LASER OPTRONICS | ||
| ARC LAMP | LASER OPTRONICS, MODEL 747/757 | LMP-11883 |
| LASER PHOTONICS | ||
| ARC LAMP | LASER PHOTONICS | LMP-11741 |
| ARC LAMP | LASER PHOTONICS, NL504 | LMP-12055 |
| LASERTRONICS | ||
| ARC LAMP | LASERTRONICS, METALASE | LMP-14796 |
| LASERVALL | ||
| ARC LAMP | LASERVALL VALMARK 7 | LMP-12810 |
| LEE | ||
| ARC LAMP | LEE LASER, 718 | LMP-11074 |
| ARC LAMP | LEE LASER, 20A | LMP-10449 |
| ARC LAMP | LEE LASER, 30A | LMP-10328 |
| ARC LAMP | LEE LASER, 8250M | LMP-13793 |
| ARC LAMP | LEE LASER, LOW VOLTAGE | LMP-10842 |
| LPKF | ||
| ARC LAMP | LPKF, SL25 | LMP-16280 |
| MUNICH | ||
| ARC LAMP | MUNICH LASER MODEL 35 | LMP-11889 |
| NEC | ||
| ARC LAMP | NEC SL114 | LMP-11586 |
| ARC LAMP | NEC SL115 | LMP-11507 |
| ARC LAMP | NEC P2015A | LMP-16302 |
| PMI | ||
| ARC LAMP | PMI, ARC, KRYPTON | LMP-10531 |
| QUANTRAD / LASERMETRICS | ||
| ARC LAMP | QUANTRAD 9555 | LMP-10696 |
| ARC LAMP | LASERMETRICS 95150 | LMP-11717 |
| ARC LAMP | LASERMETRICS 9560 | LMP-11249 |
| QUANTRONIX | ||
| LAMP ASSEMBLY | QUANTRONIX 114 | LMP-10964 |
| LAMP ASSEMBLY | QUANTRONIX 116 | LMP-10776 |
| LAMP ASSEMBLY | QUANTRONIX 116, LONG LIFE | LMP-11416 |
| ARC LAMP | QUANTRONIX 114 | LMP-10017 |
| ARC LAMP | QUANTRONIX 114, LONG LIFE | LMP-11117 |
| ARC LAMP | QUANTRONIX 116 | LMP-10023 |
| ARC LAMP | QUANTRONIX 116, LONG LIFE | LMP-11000 |
| ARC LAMP | QUANTRONIX 117 | LMP-10147 |
| ARC LAMP | QUANTRONIX 117, LONG LIFE | LMP-11326 |
| ARC LAMP | QUANTRONIX 118, LONG LIFE | LMP-11126 |
| ARC LAMP | QUANTRONIX DRS | LMP-13535 |
| ROFIN SINAR | ||
| ARC LAMP | ROFIN SINAR, MARKER, NEW | LMP-12526 |
| ARC LAMP | ROFIN SINAR, MARKER, OLD | LMP-12527 |
| SCHWARTZ | ||
| ARC LAMP | SCHWARTZ | LMP-13409 |
| SLT | ||
| ARC LAMP | SLT | LMP-12331 |
| SPECTRA PHYSICS | ||
| ARC LAMP | SPECTRA PHYSICS, MERLIN | LMP-12550 |
| SPECTRON | ||
| ARC LAMP | SPECTRON | LMP-11866 |
| ARC LAMP | SPECTRON F950-4 | LMP-13061 |
| ARC LAMP | SPECTRON SL502/503/902/903 | LMP-13209 |
| ARC LAMP | SPECTRON, F410-4 | LMP-12488 |
| TRUMPF/HAAS | ||
| ARC LAMP | HAAS, HL703-HL3003 | LMP-16300 |
| UNITEK MIYACHI | ||
| ARC LAMP | UNITEK MIYACHI, LM45 | LMP-13062 |
| U.S. LASER | ||
| ARC LAMP | US LASER, 500 WATT | LMP-11801 |
| ARC LAMP | US LASER, 750 WATT | LMP-14211 |
