WinCamD-LCM
通用全局快门设计，兼容连续波（CW）与脉冲激光束
标准波长范围355至1150纳米，可选配紫外（UV）、1310纳米及1550纳米扩展波长
最受欢迎的光束质量分析相机
WinCamD-LCM CMOS光束分析仪完美体现了DataRay的产品理念：为客户提供高性价比的优质产品。自推出以来，它毫无悬念地成为我们最畅销的产品，其成功绝非偶然。这款采用1英寸CMOS传感器的分析仪配备全局快门，既适用于连续波(CW)也适用于脉冲激光束，且可稳定检测低至190 nm的波长*。
核心特性
• 标准CMOS探测器支持355-1150 nm波长范围
• 可选配TEL传感器，扩展至1480-1610 nm
• 提供紫外(UV)和1310 nm专用版本
• 420万像素(2048×2048)，有效感光面积11.3×11.3 mm
• 5.5 µm像素尺寸
• 帧率：512×512分辨率下60 fps，1024×1024下30 fps，2048×2048下12 fps
• USB 3.0供电即用
• HyperCal™动态噪声与基线校正软件
• 可选MagND™可堆叠磁性ND滤镜或C接口滤镜
• 2500:1的信噪比(RMS)
• 带TTL触发功能的全局快门
• 电子自动快门(85 µs至2秒，动态范围44 dB)
• 12位模数转换
• 隔离脉冲触发功能
• 多相机并行采集支持
• 可现场更换图像传感器
• 相对功率电平显示
• 标准无窗传感器设计，消除干涉条纹
• 可选ISO 11146 M²测量套件（含光束传播分析、发散角及焦点测量）
专用系统集成方案
• 工业激光监控系统(ILMS)
• 大光束分析系统(LBPS)
• 线激光轮廓分析系统(LLPS)
典型应用
• 连续波/脉冲激光束形分析
• 激光设备现场维护
• 光学组件装调与仪器校准
• 光束漂移监测与记录
• 搭配M2DU平移台实现M²参数测量
| Specification | Detail |
|---|---|
| Wavelength | WinCamD-LCM: 355 to 1150 nm WinCamD-LCM-1310: 355 to 1350 nm (includes long pass filter) WinCamD-LCM-TEL: 1480 to 1610 nm WinCamD-LCM-UV: 190 to 1150 nm |
| Pixel Count‚ H x V | 4.2 MPixel‚ 2048 x 2048 |
| Optical Format | 1″ |
| Image Area | 11.3 x 11.3 mm |
| Pixel Dimension | 5.5 x 5.5 µm |
| Min. Beam (10 pixels) | ~55 µm |
| Shutter Type | Global |
| Max Frame Rate* | 60 Hz |
| Single Pulse Capture PRR | USB 2.0: 6.3 kHz USB 3.0: 12.6 kHz |
| Signal to RMS Noise | 2,500:1 (34 dB optical / 68 dB electrical) |
| Electronic Shutter Range | USB 2.0: 12,600:1 (41 dB) USB 3.0: 25,000:1 (44 dB) |
| ADC | 12-bit |
| Measurable Sources | CW beams‚ pulsed sources; CW to 12.6 kHz with single pulse isolation Software configurable Auto-trigger‚ Synchronous & Variable Delay |

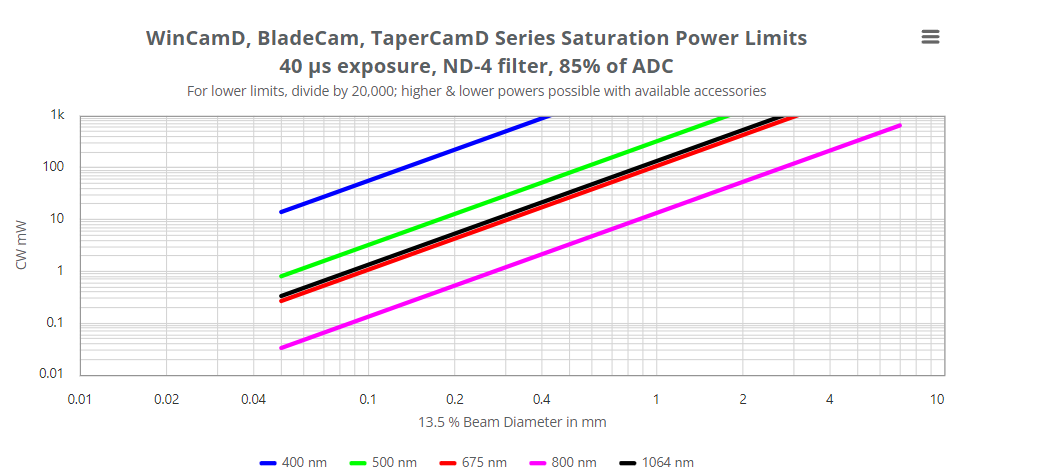

| Measured Beam Powers | See Charts |
| Manual Beam Attenuation | Includes ND-1, ND-2, and ND-4 magnetic ND filters or C-mount ND filters |
| Displayed Profiles | Line‚ 2D & 3D plots. Normalized or un-normalized. Linear or Logarithmic‚ Zoom x10 2D‚ 3D in 10‚ 32 or max. colors or grayscale Contoured display at 10 and 32 colors |
| Measured & Displayed Profile Parameters | Raw and smoothed profiles Triangular running average filter up to 10% FWHM |
| Beam Diameter | Diameter at two user set Clip levels Gaussian & ISO 11146 Second Moment beam diameters Equivalent diameter above a user defined Clip level Equivalent Slit and Knife Edge diameters |
| Beam Fits | Gaussian & Top Hat profile fit & % fit Equivalent Slit profile |
| Beam Ellipticity | Major‚ Minor & Mean diameters. Auto-orientation of axes. |
| Centroid Position | Relative and absolute Intensity Weighted Centroid and Geometric Center Beam Wander Display and Statistics |
| Measurement Accuracy (not limited to pixel size) | 0.1 µm processing resolution for interpolated diameters. Absolute accuracy is beam profile dependent – ~1 µm accuracy is frequently achievable. Centroid accuracy is also beam dependent (as good as ±1 µ since it is arithmetically determined from all pixels above the centroid clip level). |
| Processing Options | Image & profile Averaging‚ 1‚ 5‚ 10‚ 20‚ Continuous. Background Capture and Subtraction. User set rectangular Capture Block for capture User set or Auto ellipse Inclusion region with beam tracking for processing *.ojf files save all WinCamD custom settings for particular test configurations |
| Pass/Fail display | On-screen selectable Pass/Fail colors. Ideal for QA & Production. |
| Log Data and Statistics | Min.‚ Max.‚ Mean‚ Standard Deviation‚ to 4096 samples |
| Relative Power Measurement | Rolling histogram based on user’s initial input. Units of mW‚ µJ‚ dBm‚ % or user choice (relative to a reference measurement input) |
| Fluence | Fluence‚ within user defined area |
| Certification | RoHS‚ WEEE‚ CE |
| Multiple Cameras | Up to 4 cameras, parallel capture. 1 to 8 cameras, serial capture. |

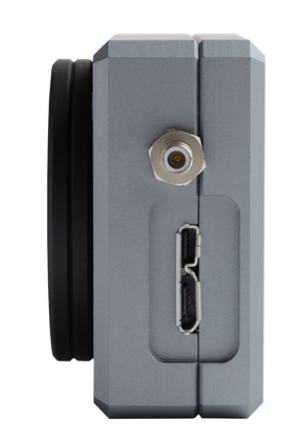

| Head Dimensions‚ Width x Height x Depth | 1.8 x 1.8 x 0.8” (46 x 46 x 20 mm) |
| Optical depth from housing/filter to sensor (no window) ±0.2 mm | 7.5 mm (12.8 mm with MagND filter) |
| Mounting | 8-32 thread, 8 mm deep |
| Weight‚ Camera w/ MagND and filter cover | 3.75 oz (106 g) |
| Minimum Requirements | Windows 10 64-bit |
