WinCamD-GCM
采用GigE Vision接口，支持长达100米的远距离传输
可通过以太网网络访问光束分析仪
WinCamD-GCM千兆网远距离光束分析系统
远距离可扩展的GigE Vision光束分析解决方案
采用与WinCamD-LCM相同的传感器（11.3×11.3mm有效感光区，420万像素，5.5×5.5μm像素尺寸，全局快门），WinCamD-GCM通过GigE Vision®接口实现远距离应用（传输距离可达约100米），并可轻松集成到现有网络系统中。
核心特性
• 标准GigE Vision千兆网接口
• CMOS探测器支持355-1150nm波长
• 420万像素分辨率(2048×2048)
• 5.5μm像素尺寸
• 可选MagND™磁性ND滤镜或C接口滤镜
• 2500:1信噪比(RMS)
• 带TTL触发的全局快门
• 40μs-2s电子自动快门(47dB动态范围)
• 12位模数转换
• 隔离脉冲触发功能
• 支持多相机并行采集
• 可现场更换图像传感器
• 无窗传感器标准配置，消除干涉条纹
• 可选ISO 11146 M²测量套件（光束传播/发散角/焦点分析）
• 兼容大光束(LBPS)和线激光(LLPS)分析系统
典型应用
• 需要长距离布线的应用场景
• 连续/脉冲激光束形分析
• 激光设备现场维护
• 光学系统装调与校准
• 光束漂移监测记录
• M²参数测量
（注：通过”千兆网”明确接口类型；”约100米”符合中文技术文档表述习惯；保持与系列产品统一的参数排版格式）
系统优势：
工业级网络接口，抗干扰能力强
适合集成到自动化产线监测系统
支持多台设备组网监控
保持WinCamD系列的高精度测量性能
| Specification | Detail |
|---|---|
| Wavelength | WinCamD-GCM: 355 to 1150 nm WinCamD-GCM-1310: 355 to 1350 nm (includes long pass filter) WinCamD-GCM-TEL: 1480 to 1610 nm WinCamD-GCM-UV: 190 to 1150 nm |
| Pixel Count‚ H x V | 4.2 MPixel‚ 2048 x 2048 |
| Optical Format | 1″ |
| Image Area | 11.3 x 11.3 mm |
| Pixel Dimension | 5.5 x 5.5 µm |
| Min. Beam (10 pixels) | ~55 µm |
| Shutter Type | Global |
| Max Frame Rate | TBA |
| Single Pulse Capture PRR | TBA |
| Signal to RMS Noise | 2,500:1 (34 dB optical / 68 dB electrical) |
| Electronic Shutter Range | TBA |
| ADC | 12-bit |
| Measurable Sources | CW beams‚ pulsed sources; CW to 12.6 kHz with single pulse isolation Software configurable Auto-trigger‚ Synchronous & Variable Delay |

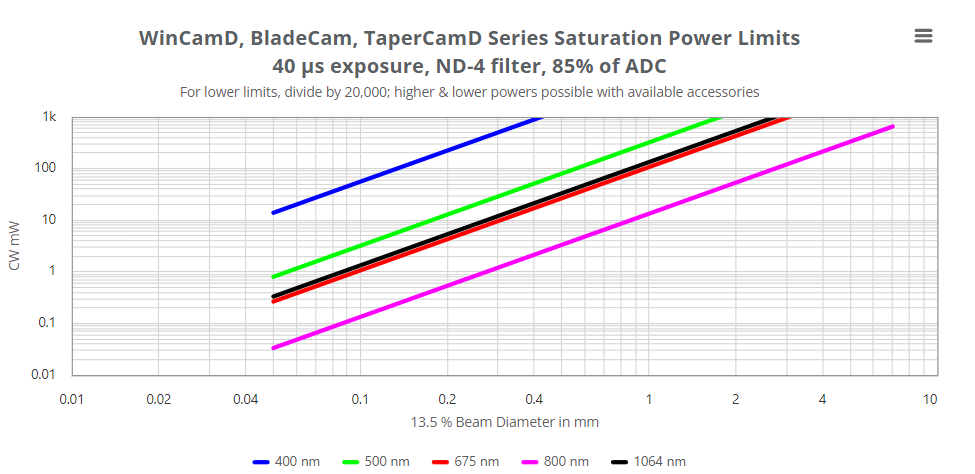

| Measured Beam Powers | See Charts |
| Manual Beam Attenuation | Includes ND-1, ND-2, and ND-4 magnetic ND filters or C-mount ND filters |
| Displayed Profiles | Line‚ 2D & 3D plots. Normalized or un-normalized. Linear or Logarithmic‚ Zoom x10 2D‚ 3D in 10‚ 32 or max. colors or grayscale Contoured display at 10 and 32 colors |
| Measured & Displayed Profile Parameters | Raw and smoothed profiles Triangular running average filter up to 10% FWHM |
| Beam Diameter | Diameter at two user set Clip levels Gaussian & ISO 11146 Second Moment beam diameters Equivalent diameter above a user defined Clip level Equivalent Slit and Knife Edge diameters |
| Beam Fits | Gaussian & Top Hat profile fit & % fit Equivalent Slit profile |
| Beam Ellipticity | Major‚ Minor & Mean diameters. Auto-orientation of axes. |
| Centroid Position | Relative and absolute Intensity Weighted Centroid and Geometric Center Beam Wander Display and Statistics |
| Measurement Accuracy (not limited to pixel size) | 0.1 µm processing resolution for interpolated diameters. Absolute accuracy is beam profile dependent – ~1 µm accuracy is frequently achievable. Centroid accuracy is also beam dependent (as good as ±1 µ since it is arithmetically determined from all pixels above the centroid clip level). |
| Processing Options | Image & profile Averaging‚ 1‚ 5‚ 10‚ 20‚ Continuous. Background Capture and Subtraction. User set rectangular Capture Block for capture User set or Auto ellipse Inclusion region with beam tracking for processing *.ojf files save all WinCamD custom settings for particular test configurations |
| Pass/Fail display | On-screen selectable Pass/Fail colors. Ideal for QA & Production. |
| Log Data and Statistics | Min.‚ Max.‚ Mean‚ Standard Deviation‚ to 4096 samples |
| Relative Power Measurement | Rolling histogram based on user’s initial input. Units of mW‚ µJ‚ dBm‚ % or user choice (relative to a reference measurement input) |
| Fluence | Fluence‚ within user defined area |
| Certification | RoHS‚ WEEE‚ CE |
| Multiple Cameras | TBA |
| Head Dimensions‚ Width x Height x Depth | 2.9 x 2.9 x 2.1 in. (72.6 x 72.6 x 54.2 mm) |
| Optical depth from housing/filter to sensor (no window) ±0.2 mm | TBA |
| Mounting | 8-32 thread, 8 mm deep |
| Weight‚ Camera w/ MagND and filter cover | TBA |
| Minimum Requirements | Windows 10 64-bit |
