PAVE 柔性电路贯穿件 扁平排线电缆

柔性电路贯穿件和扁平排线电缆，PAVE的气密密封是双向的，可以在任意方向或两者方向上密封压力和真空。对于超过300 psi（20 bar）的压力，如果改变图纸上显示的压力方向，请与销售工程师联系。 几乎任何聚酰亚胺Kapton®绝缘的柔性电路贯穿件都可以作为低压或高压和真空的气密电气贯穿密封提供。任何带有实心铜导体的绝缘扁平或带状电缆也可以作为气密密封电缆提供。有多种安装选择，包括卡口螺母O形圈、电子束焊或激光焊等。这类气密密封始终根据客户独特的要求定制设计。

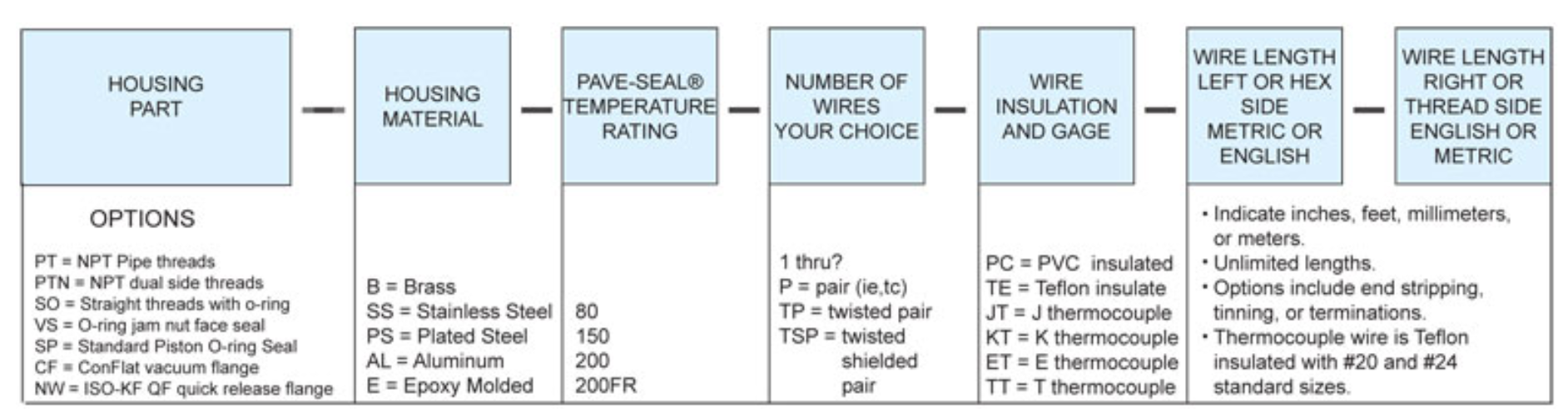

Type Flat Cable	Seal Type	Total Wires	PAVE Description Codes, Housing & Wires	Wires 1	AWG #	Wires 2	AWG #	PART-DRAWING #
Kapton flex circuit	piston o-ring		SP47.2/7.2-E-150-1-FLEX-1-1					4647
FLEX 0.5MM FFC	Molex jumper		o-ring face seal					4276
Kapton polymide	flex circuit		electron beam weld					4387
PVC ribbon	passthru	4	SPF20-E-150-2/1/1-PC10/20RIB/16RIB-10/9/9-10/11.5/9	2	10	2	10	2315
PCB	passthru	5	FP14-AL-80-1-PCB-2-1					2110
PCB	passthru	6	FL-AL-160-T-TE24 TSQ LENS ASY	6	24			0974
polymide	21.82mm piston o-ring		SP13-E-150-2/1-PC22/FLEX-8/1-12/2	flex circuit		2	22	4260
Kapton flex seal		144 shielded	flange mounted flex circuits					5189
Kapton flex seal		36 shielded	SP45/8-E-2-FLEX-3.5-13					5188
Kapton flex circuit	Laser weld electron beam	20	FL12/4-AL-150-1-FLEX-1-4	20	28			4610
PTFE Flat Cable	passthru	10	FL2.5-E-150-10-20, VENT HOLE	10	20			1188
PVC Flat Cable	passthru	14	SP11M-E-150-6/2P/4-RPC28/K24S/PC22-18-18	6	28	Type K	24	3325
PTFE flat cable	passthru	20	flBD-AL-150-4/5/1-TE20/24/FLEX-12-3					1945
flex cable	oval piston seal	20	SP24/6.2-E-150-1-FLEX	20	28			4784
Kapton shielded flex	o-ring face seal		SP58/16-E-150-1-FLEX-2-3					5286
PVC flat cable	passthru	24	VS32-E-150-2-34RIB-150-350mm	24	26			2083
Flex Cables	custom flange	24	SQF50-AL-150-24-24-PIN-PIN	24	26			3870
Kapton flex circuit	passthru	36	VS15S-AL-80-2-FLEX					2196
PVC flat cable	passthru Avestor	38	SP24-E-150-2/1/1-PC10/20RIB/16	36	28	2	10	3187
Kapton® polyimide	piston O-ring	many	SP26.4/7.2-E-150-1-FLEX					4880
Kapton Flex Circuit	piston O-ring	30	SP26.4/7.2-E-150-1-FLEX	30	28			3360
PVC flat cable	passthru Avestor	40	SPF20-E-150-4/1/1-PC10-20RIB/16RIB-*	4	10	36	26	2698
flex circuit polyimide	laser weld	50	FL12/4-AL-150-1-FLEX-1-3 laser weld	50	36			4497
M4 piston o-ring seal	passthru	80	ATEX flex cable circuit seal	50	26			3684
Kapton flex circuit	passthru	50	pave flex custom molded	44	28			3281
Axon flat cable	passthru	46	SP2-E-150-2/2-TE22/36-2-16	44	36	2	22	2858
polyimide flex cable	custom flange	50	FL53.5/9-AL-150-1-FLEX-2.5-2	50	24			4656
PTFE flat cable	passthru	60	VS22-SS-150-3-20RIB-6-6	60	28			4327
custom flange	flange o-ring face seal	100 shielded	FL48/19-AL-150-2-FLEX-2.4-5.4 dual flex seal	Kapton flex circuit				5678
flex circuit polyimide	o-ring face seal	100	SP41.2/6.4-E-150-1-FLEX-8-6 Kapton flex	100	36			4469
PTFE flat cable	passthru	100	VS32-SS-150-2-50RIB-4-26	100	26			1961
Kapton Polyamid	piston o-ring	160	SP21.5-E-200FR-2-FLEX ATEX					3745
flex circuit polyimide	o-ring face seal	200	VS15S-AL-80-10-FLEX-13-7 polyimide flex	200	36			2383
PTFE flat cable	passthru	200	VS32-SS-150-8R25-TE28-12-12	200	28			2118
