Beam Imaging荧光屏、可选磷光体、可应用于HRBIS和BOS成像仪
Beam Imaging Solutions作为标准产品单独提供我们在所有Beam Imaging系统中使用的荧光屏。这些标准屏幕及其规格可在标准零件表中找到。波束成像解决方案还可以提供符合您特定需求的定制屏幕。请使用定制荧光屏–光束成像解决方案为了引用。请使用标准荧光屏–光束成像解决方案链接获取我们标准屏幕的报价。
| Substrate Material | Pyrex Disc, Fiber-Optic |
|---|---|
| Phosphor Type | P43 Aluminized, P43 ITO Undercoat |
| Phosphor Thickness | P43: 10-15 µm Al: 250-500 Å, P43: 10-15 µm |
| Input Surface Dimension | 22.3, 25.0, 28.14, 32.7, 41.0, 50.0, 54.8, 86.36, 86.6 |
| Output Surface Dimension | 13.7, 22.3, 25.0, 32.7, 50.0, 50.8, 86.6, 92.25 |
| Input Surface Effective Area | 19.69, 19.9, 25.6, 30.2, 35.96, 38.5, 44.9, 51.5, 52.3, 81.3, 81.5 |
| Output Surface Effective Area | 12.8, 13.1, 19.69, 19.9, 30.2, 35.96, 44.9, 81.3, 81.5 |
| Thickness | 1.50, 4.0, 6.36, 20.88, 28.0, 60 |
| Tapered Raio | N/A, 1:1, 2:1, 3:1, 4:1 |
| Part Number | 18-008, 18-008-ITO, 25-008, 25-008-ITO, 40-008, 40-008-ITO, 40-FO, 75-008, 75-008-ITO, 75-FO, 1000-705-1, 2000-705-2, 3000-705-3, 4000-705-4 |
| Part Number | Substrate Material | Phosphor Type | Phosphor Thickness | Dimensions Ø (mm) | Effective Area Ø (mm) | Thickness (mm) | Tapered Ratio | ||
|---|---|---|---|---|---|---|---|---|---|
| Input Surface | Output Surface | Input Surface | Output Surface | ||||||

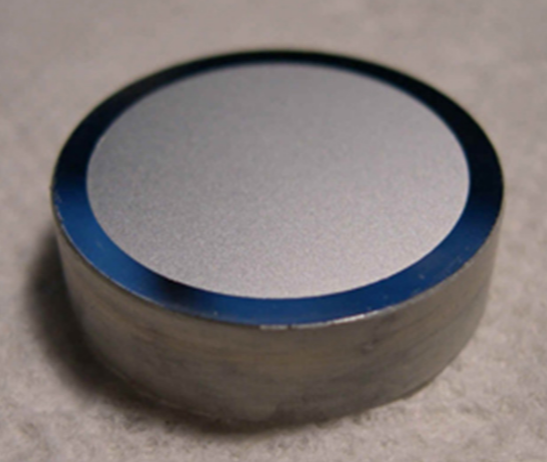

| 18-008 | Pyrex Disc | P43 Aluminized | P43: 10-15 µm Al: 250-500 Å | 25.0 | 25.0 | 19.9 | 19.9 | 1.50 | N/A |
| 18-008-ITO | Pyrex Disc | P43 ITO Undercoat | P43: 10-15 µm | 25.0 | 25.0 | 19.9 | 19.9 | 1.50 | N/A |
| 25-008 | Pyrex Disc | P43 Aluminized | P43: 10-15 µm | 32.7 | 32.7 | 30.2 | 30.2 | 1.50 | N/A |
| 25-008-ITO | Pyrex Disc | P43 ITO Undercoat | P43: 10-15 µm | 32.7 | 32.7 | 30.2 | 30.2 | 1.50 | N/A |
| 40-008 | Pyrex Disc | P43 Aluminized | P43: 10-15 µm, Al: 250-500 Å | 50.0 | 50.0 | 44.9 | 44.9 | 1.50 | N/A |
| 40-008-ITO | Pyrex Disc | P43 ITO Undercoat | P43: 10-15 µm | 50.0 | 50.0 | 44.9 | 44.9 | 1.50 | N/A |

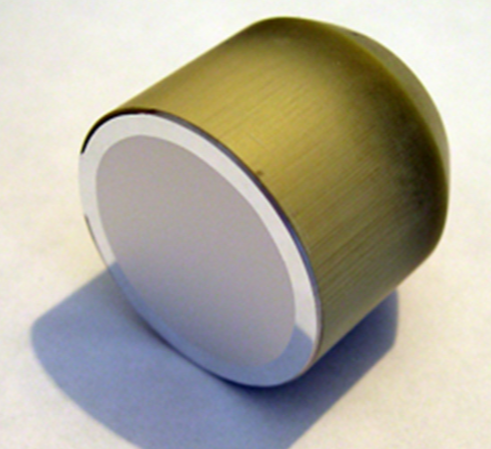

| 40-FO (For BOS-40 with Fiberoptic Viewport) | Fiber-Optic | P43 Aluminized | P43:10-15 µm, Al: 250-500 Å | 41.00 | 50.8 | 35.96 | 35.96 | 20.88 | 1:1 |
| 75-008 | Pyrex Disc | P43 Aluminized | P43:10-15 µm, Al: 250-500 Å | 86.6 | 86.6 | 81.5 | 81.5 | 1.50 | N/A |
| 75-008-ITO | Pyrex Disc | P43 ITO Undercoat | P43: 10-15 µm, Al: 250-500 Å | 86.6 | 86.6 | 51.5 | 81.5 | 1.50 | N/A |
| 75-FO (For BOS-75 with Fiberoptic Viewport) | Fiber-Optic | P43 Aluminized | P43:10-15 µm, Al: 250-500 Å | 86.36 | 92.25 | 81.3 | 81.3 | 20.88 | 1:1 |
| 1000-705-1 | Fiber-Optic | P43 Aluminized | P43: 10-15 µm, Al: 250-500 Å | 22.3 | 22.3 | 19.69 | 19.69 | 6.36 | 1:1 |
| 2000-705-2 | Fiber-Optic | P43 Aluminized | P43: 10-15 µm, Al: 250-500 Å | 28.14 | 13.7 | 25.6 | 12.8 | 28.0 | 2:1 |
| 3000-705-3 | Fiber-Optic | P43 Aluminized | P43: 10-15 µm, Al: 250-500 Å | 41.0 | 13.7 | 38.5 | 12.8 | 4.0 | 3:1 |
| 4000-705-4 | Fiber-Optic | P43 Aluminized | P43: 10-15 µm, Al: 250-500 Å | 54.8 | 13.7 | 52.3 | 13.1 | 60 | 4:1 |
