Mcallister真空样品台BLT45

Mcallister真空样品台BLT45

4.5″ (CF63) Z Translator Inch and Metric Scale Available Dimensions are in inches (mm)

Product Description

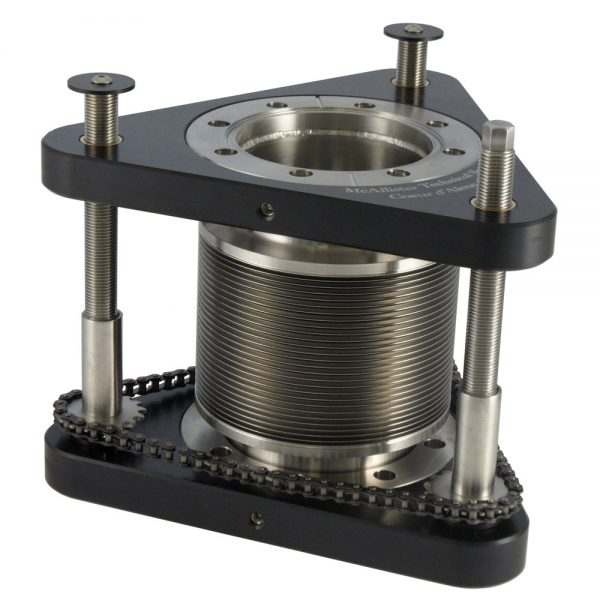

All BLT45 translators have ball bearings on the jacking screws. Even on motorized versions, manual actuation via the provided ratchet wrench is available. The screws and bearings are lubricated with high temperature grease for low friction and long life. All parts are field replaceable. The traveling flange is supported by three jacking screws (see drawing). All translators are also available with long strokes, motor drives, linear encoders, tapped flanges and special heights.

BLT 45 TRANSLATOR DIMENSIONS

Clear ID 2.87″ (73)
Model Stroke Compressed
BLT45-2 2″ (50) 3.2″ (81)
BLT45-3 3″ (75) 3.35″ (85)
BLT45-4 4″ (100) 3.5″ (89)
BLT45-6 6″ (150) 3.8″ (97)
BLT45-8 8″ (200) 4.1″ (105)

询价采购Mcallister真空样品台BLT45

请用微信扫描下方二维码或手动添加微信号2351992198

Mcallister真空样品台BLT45
