PAVE 高压气密电缆 导线贯穿密封

高压气密电缆和导线贯穿密封，PAVE的气密密封是双向的，可以在任意方向或两者方向上密封压力和真空。对于超过300 psi（20 bar）的压力，如果改变图纸上显示的压力方向，请与销售工程师联系。

根据电压不同，可以提供各种各样的高压电缆或导线，高达32 kV，在各种气密贯穿设计中，适用于低压或高压及真空，温度范围在-200到200摄氏度之间。电缆绝缘材料包括PVC、硅胶、XLPE、PTFE、FEP聚四氟乙烯和Kapton®。下面列出了现有的气密高压贯穿设计。如有需要，也可以定制设计。所有PAVE的气密密封都能通过真空氦气泄漏测试，泄漏率为10^-6到10^-9cc/sec，或者通过加压气泡泄漏测试。PAVE的气密环氧密封比易碎的玻璃或陶瓷密封要更加坚固。

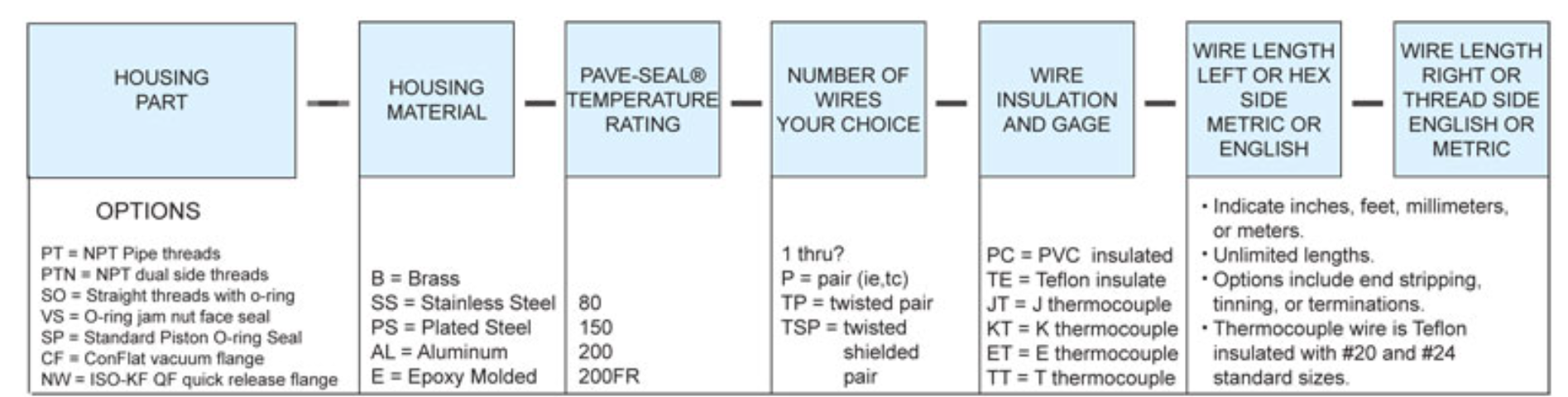

Installation Port or Size Type Wire Insulation Total Wires or Pins AWG# Voltage PAVE Description Codes, Housing & Wires Type Seal PART-DRAWING #
1″ o-ring face seal dual sided SHV 1 w/ isolated shield shv 7kV VS15L-SS-150-SHV-SHV IN STOCK hermetic connector 1518
1″ o-ring face seal dual sided MHV 1 w/ isolated shield mhv 5kV VS15L-SS-150-1-MHV-MHV hermetic connector 2954
⅛ NPT FEP 1 6kV PT2-B-80-1-FEP16-6-6 feedthru 3832
¾” piston o-ring FEP 1 20kV shielded coax RG58 SPF12-E-150-1/1/1-HRG58/E20/BUS20-38-12 passthru 5343
⅜” piston o-ring silicone 1 26 15kV SP6L-E-150-1-1786580-30N-3-26 feedthrough 2691-1
⅜” piston o-ring silicone 1 26 15kV SP6L-E-150-1-1788425-30N-5-24 feedthrough 1359
½” piston o-ring FEP 1 15kVdc 18 SP8S-E-150-1-Reynolds 295-0062-15-15 feedthrough 2631
¾” piston o-ring shv & pvc 1 20Kv SP12-E-150-SHV-1-B8866-SHV-14 4439
¾” piston o-ring seal PE 1 #18 #18 30kVDC SPF12-E-150HV-1-B200PA48-20T-28T feedthru cable 5001
¾” piston o-ring PVC & PE 1 30kVDC SPF12-E-150-1-B200PA48-36T-5T hermetic seal 2569
¾” piston o-ring ps 1 18 30kV SPF12-E-150-1-B200PA48-77T-22 feedthrough 2370
¾” piston o-ring ps 1 18 30kV SPF12-E-150-1-B8866-36-24 feedthrough 1534
¾” piston o-ring ps 1 20 30kV SPF12-E-150-1-Belden9867/BUS16-36-40 feedthrough 2439
¾” piston o-ring ps 1 20 30kV SPF12-E-150-1-Belden9867-48-48 feedthrough 2311
¾” piston o-ring pvc 1 18 30Kv SPF12-E-150-1-B200PA48/BUS20-26-3.8 feedthrough 2809
n/a PTFE 1 5Kv HARWIN W2222-00 FEEDTHROUGH INSULATOR feedthrough 5159
½” piston o-ring silicone 5KV 2 5kV SP8L-E-150HV-2-HV22-10-10 feedthru 4480
¾” piston o-ring PTFE 2 coax 20 30kV SPF12-E-150-1/1/1-RG59U/E20/BUS20-17-15/16 feedthrough 2921
¾” piston o-ring pvc 1 22 30kV SPF12-E-150-1-PC22/BUS20-40-24 feedthrough 3309
¾” piston o-ring rubber 1 18 5kV SPF12-E-200-1-RB18-8-SOC feedthrough 3134
¾” piston o-ring MHV solder cup 1 22 3kV VS12L-SS-150-1-MHV-SC hermetic connector 2966
1-¼” o-ring face seal cable seal 8 7 VS18-SS-150-7/1-RG174/REYNOLDS2896-85FT-10FT RG174 4333
1¼” o-ring face seal Farnell 5602 cable 1 70 ohm, 4kV VS18-SS-150-1-5602-5-5m feedthrough 3167
⅛” NPT PTFE 1 24 10kV PT2-SS-150-1-10KV COAX feedthrough 1151
custom flange face seal PTFE 2 5kV FL18.9/5.6-AL-150-2-TE24-PIN-6 5006
1¼” flangeface seal PTFE 2 FL20/8-AL-150-2-TE24-PIN-6 24 3762
1¼” o-ring face seal PTFE 2 coax 18 kvdc VS18-SS-150-5/1-RG316/REYNOLDS HV-36-36 feedthrough 3509
¾” piston o-ring PTFE 2 24 4kV SPF12-E-150-1/1-TE24-FO1B090-24-24 feedthrough 1659
1″ o-ring face seal silicone 2 22 15kV VS15L-SS-90-2-HV22-60-24,15KV feedthrough 1500
11mm piston o-ring silicone 3 30Kv SP7XL-E-200HV-3-FEP20-7-18 3674
¾” piston o-ring PTFE 3 rg59 7.5kV SPF12-E-150-1/1/1-RG59U/E20/BUS20-36-15 2.5kV coaxial plus 2 wires 4998
¾” piston o-ring PTFE 3 rg59 7.5kV SPF12-E-150-1/2-RG59U/E20-33-4 feedthrough 2822
¾” piston o-ring PTFE 3 20 15kV SPF12-E-150-1/1/1-1679611/TEE18/22-24-24 15kv feedthrough 2252
1″ piston o-ring PTFE 4 #12 #12 15kvVdc SP16S-E-150HV-4-CRT12-72-72 passthrough 5368
17.37mm ” piston o-ring PE/PVC 7 22 15kv SP11L-E-150-1-Belden8868-60-20CM 15kv feedthrough 2392
61mm o-ring face seal silicone 7 16 20kV SPF38-E-150-7-16SIL-14-14, 20kvdc feedthrough 2266
1″piston o-ring PTFE 8 #22 #22 15kVdc SP16S-E-150HV-8-CRT22-72-72 passthrough 5367
¾” o-ring face seal XLPE 12 24 5kV VS12L-AL-150-12-Judd24-24-15 feedthrough 2600
¾” piston o-ring pvc 1 18 30kV SPF12-E-200-1-PC18-8-SOC feedthrough 2304-1
custom o-ring flange night vision PTFE 19 26, 7kvdc FL-SS-150-18/1-TE26/HV18-24-11 feedthrough 2528
0.996″ piston o-ring silicone 22 22 3kv SP16-E-150-22-HV22-18-18 feedthrough 2959
