Packworld PW3000系列脉冲热封机-材料测试和量化热密封或热密封/切割应用
Packworld PW3000系列脉冲热封机 PW3000系列机器可提供标准接口或触摸屏接口以及水平或垂直热封方向。可以放置在桌面上，也可以将机器安装到可选的可调节高度和倾斜支架上，以增加便携性和更好的人体工程学。标准密封条长度为16“和24”，但可根据要求提供定制尺寸。所有PW3000系列机器都可根据ISO 11067-2进行验证。触摸屏机器提供额外的功能，包括符合21 CFR第11部分。

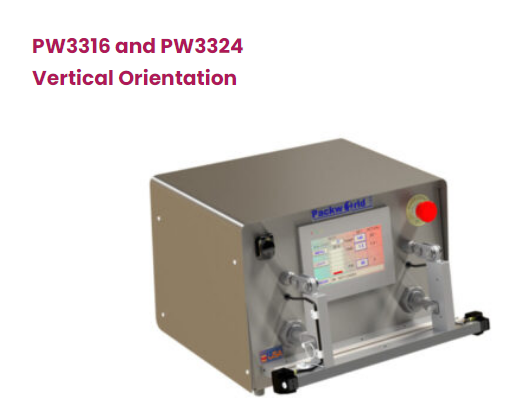

| Models | PW3316 & PW3324 |
| Standard Features | Tabletop 16” & 24” • Compressed air exhaust outlet • Low pressure closing/high pressure sealing • Stainless Steel Case • Single or Dual band operation °C or °F • Emergency Stop Button • Can be fitted with any one of over 300 different TOSS Alloy-20® C heatseal bands depending on the results desired. |
| Options | Adjustable Stainless Steel Stand • Stainless Steel product table • Water-cooled Jaws • NIST Traceable certification • CE Compliant |
| Specifications | Power: 2.2kva @ 115V, 20amp (220V optional) • Timer: 0 - 99.9 sec. Temperature Range: 0 - 500°C • Heat Seal Bar Length: 16" and 24" • Jaw Force: 0 - 1000 lbs. • Size: 18" x 18" x 10" • Shipping Weight: 90 lbs. • Air Requirements: 80 - 100 psig |

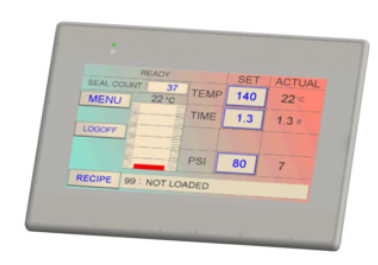

PW3400可验证脉冲式热封机，带TOSS触摸屏控制，提供温度/时间/压力的图形显示，具有各种时序可能性和视觉/听觉警报。

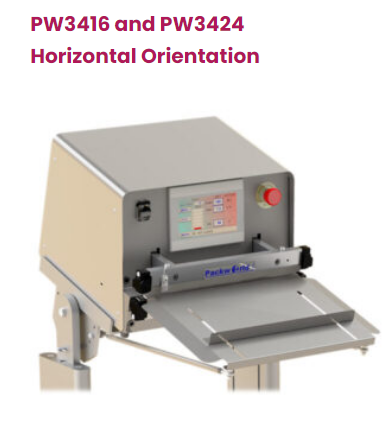

| Models | PW3416 & PW3424 |
| Standard Features | Vacuum/Purge, Vacuum Only, Seal Only • Automatic Cut-off at selected vacuum or time level. Available in 16" and 24" models • Compressed air exhaust outlet • Low pressure closing/high pressure sealing • Single or Dual band operation • °C or °F • Emergency Stop Button • Can be fitted with any one of over 300 different TOSS Alloy-20® C heatseal bands depending on the results desired. |
| Options | Adjustable Stainless Steel Stand • Stainless Steel product table • Water-cooled Jaws • NIST Traceable certification • CE Compliant |
| Specifications | Heat Seal Length: 16 and 24 Inches • Heat Seal Width: 2 - 10 mm • Temperature Range: 300°C - (Optional 500°C) • Timers: 0.1 - 98.9 Sec • Power: 115 or 230 VAC 50/60 Hz • Air Pressure: 80 - 100 psig |

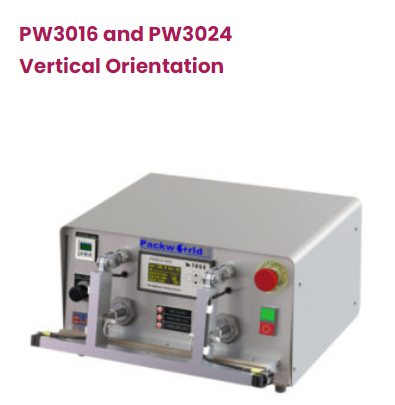

| Models | PW3016 & PW3024 |
| Applications | Medical Devices • Pharmaceuticals • Cosmetics • Liquid Packaging • Samples or Specimens • Research & Development • Electronics |
| Standard Features | Compressed air outlet • Digital Air pressure regulator and gauge and alarms • Low pressure closing/high pressure heat sealing • Stainless steel case • Single or double band heat seal operation • Quick and easy change over of heatseal bands • Emergency stop button • Foot Pedal Activation |
| Benefits | Calibration made simple • Precise and repeatable heat sealing control • Ease of operation • Adaptable to a wide variety of uses • Maintenance Free • Safety Assured |
| Options | Data Capture with USB connection and PC Software • NIST traceable calibration • Adjustable Table for exact product placement • Jaw modifications for water cooling • High Temperature Application Set-up • CE Compliance |
| Specifications | Power: 2.2kva @ 115V, 20amp (220V optional) • Timer: 0 - 99.9 sec. • Temperature Range: 0 - 500°C • Heat Seal Bar Length: 16" and 24" • Jaw Force: 0 - 1000 lbs. • Size: 18" x 18" x 10" • Shipping Weight: 85 lbs. • Air Requirements: 80 - 100 psig |

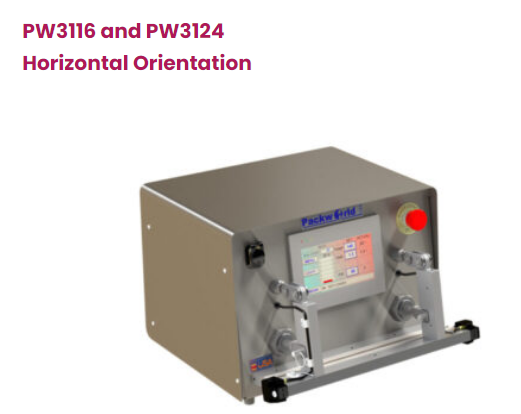

| Models | PW3116 & PW3124 |
| Applications | Medical Devices • Pharmaceuticals • Cosmetics • Liquid Packaging • Samples or Specimens • Research & Development • Electronics |
| Standard Features | Compressed air outlet • Digital Air pressure regulator and gauge and alarms • Low pressure closing/high pressure heat sealing • Stainless steel case • Single or double band heat seal operation • Quick and easy change over of heatseal bands • Emergency stop button • Foot Pedal Activation |
| Benefits | Calibration made simple • Precise and repeatable heat sealing control • Ease of operation • Adaptable to a wide variety of uses • Maintenance Free • Safety Assured |
| Options | Data Capture with USB connection and PC Software • NIST traceable calibration • Adjustable Table for exact product placement • Jaw modifications for water cooling • High Temperature Application Set-up • CE Compliance |
| Specifications | Power: 2.2kva @ 115V, 20amp (220V optional) • Timer: 0 - 99.9 sec. Temperature Range: 0 - 500°C • Heat Seal Bar Length: 16" and 24" • Jaw Force: 0 - 1000 lbs. • Size: 18" x 18" x 10" • Shipping Weight: 90 lbs. • Air Requirements: 80 - 100 psig |
询价采购Packworld PW3000系列脉冲热封机-材料测试和量化热密封或热密封/切割应用
