美国APC International 压电管，压电陶瓷， PZT压电陶瓷管
压电管，压电陶瓷
为了满足您的独特规格，APC International可以生产各种尺寸和厚度的压电管（圆柱体），并使用标准圆柱体材料以外的材料。
标准压电管（压电圆柱体）

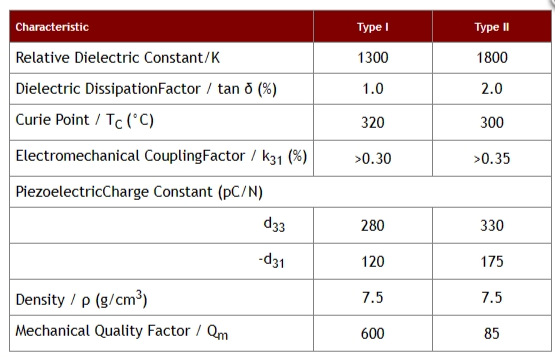

APC标准压电管中使用的材料是专门为压电管配制的。APC的I型和II型材料是高密度、细粒度的PZT陶瓷，表现出高介电常数、高机电耦合因子、高电荷灵敏度和高居里点。清洁的响应使这些陶瓷材料成为各种低功率和高功率压电器件的理想选择：
超声波或多普勒流量计
气体流量传感器
其他流量或液位传感器
超声波无损检测/无损检测应用传感器
用于检测汽车、结构和其他应用中的建筑材料、焊缝等的传感器
各种高功率应用
| 型号 | 材质 | 尺寸(mm) | 谐振频率 (kHz) | |||||
| 电容 at 1kHz | ||||||||
| OD | ID | Length | (pF) | Length | Thickness | Radial | ||
| 42-1094 | Type II | 3.0 ± 0.15 | 2.0 ± 0.15 | 5.0 ± 0.15 | 1,200 | 260 | 4,000 | 420 |
| 42-1096 | Type II | 5.0 ± 0.15 | 4.0 ± 0.15 | 10.0 ± 0.15 | 4,500 | 130 | 4,000 | 233 |
| 42-1001 | Type II | 6.35 ± 0.15 | 4.9 ± 0.15 | 6.35 ± 0.15 | 2,500 | 260 | 2,760 | 160 |
| 42-1007 | Type II | 10.0 ± 0.25 | 8.0 ± 0.25 | 10.0 ± 0.15 | 4,500 | 165 | 2,000 | 100 |
| 42-1012 | Type II | 15.5 ± 0.25 | 11.2 ± 0.25 | 18.0 ± 0.15 | 5,500 | 92 | 930 | 67 |
| 42-1022 | Type II | 19.0 ± 0.25 | 16.0 ± 0.25 | 20.0 ± 0.15 | 11,600 | 83 | 1,330 | 51 |
| 42-1032 | Type II | 22.0 ± 0.25 | 16.0 ± 0.25 | 20.0 ± 0.15 | 6,300 | 82 | 670 | 47 |
| 42-1036 | Type II | 26.0 ± 0.25 | 22.0 ± 0.25 | 20.0 ± 0.15 | 12,000 | 83 | 1,000 | 38 |
| 42-1042 | Type II | 30.0 ± 0.25 | 26.0 ± 0.25 | 20.0 ± 0.15 | 14,000 | 83 | 1,000 | 32 |
| 42-1052 | Type II | 38.0 ± 0.35 | 34.0 ± 0.35 | 25.0 ± 0.15 | 22,500 | 66 | 1,000 | 25 |
| 42-1062 | Type II | 44.0 ± 0.35 | 38.0 ± 0.35 | 30.0 ± 0.15 | 20,500 | 55 | 670 | 22 |
| 42-1072 | Type II | 50.0 ±0.35 | 46.0 ±0.35 | 30.0 ± 0.15 | 36,000 | 55 | 1,000 | 19 |
| 42-1081 | Type II | 68.0 ± 0.35 | 60.0 ± 0.35 | 25.0 ± 0.15 | 20,000 | 66 | 500 | 14 |
| 42-1092 | Type II | 85.0 ± 0.35 | 77.0 ± 0.35 | 30.0 ± 0.15 | 30,400 | 55 | 500 | 11 |
| 42-2094 | Type I | 3.0 ± 0.15 | 2.0 ± 0.15 | 5.0 ± 0.15 | 1,000 | 320 | 4,150 | 480 |
| 42-2096 | Type I | 5.0 ± 0.15 | 4.0 ± 0.15 | 10.0 ± 0.15 | 3,500 | 160 | 4,150 | 256 |
| 42-2001 | Type I | 6.35 ± 0.15 | 4.9 ± 0.15 | 6.35 ± 0.15 | 1,900 | 283 | 3,000 | 176 |
| 42-2007 | Type I | 10.0 ± 0.25 | 8.0 ± 0.25 | 10.0 ± 0.15 | 3,500 | 180 | 2,180 | 110 |
| 42-2011 | Type I | 15.5 ± 0.25 | 11.2 ± 0.25 | 18.0 ± 0.15 | 4,300 | 100 | 980 | 74 |
| 42-2021 | Type I | 19.0 ± 0.25 | 16.0 ± 0.25 | 20.0 ± 0.15 | 9,100 | 90 | 1,400 | 57 |
| 42-2031 | Type I | 22.0 ± 0.25 | 16.0 ± 0.25 | 20.0 ± 0.15 | 4,900 | 85 | 700 | 52 |
| 42-2035 | Type I | 26.0 ± 0.25 | 22.0 ± 0.25 | 20.0 ± 0.15 | 9,300 | 85 | 1,040 | 41 |
| 42-2041 | Type I | 30.0 ± 0.25 | 26.0 ± 0.25 | 20.0 ± 0.15 | 10,900 | 85 | 1,040 | 35 |
| 42-2052 | Type I | 38.0 ± 0.35 | 34.0 ± 0.35 | 25.0 ± 0.15 | 17,500 | 68 | 1,040 | 28 |
| 42-2072 | Type I | 50.0 ±0.35 | 46.0 ±0.35 | 30.0 ± 0.15 | 28,000 | 57 | 1,040 | 21 |
