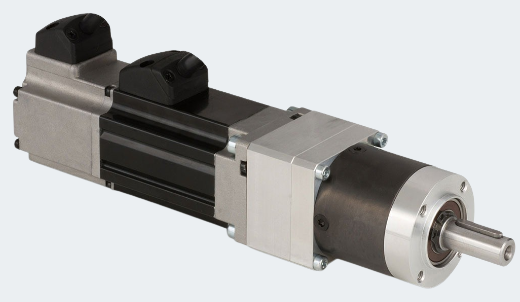

Applied Motion提供一系列全面的行星齿轮箱，专为步进电机和伺服电机的精密应用而设计。这些齿轮箱具有高扭矩额定值、高效率和低背隙的特点，提供公制与NEMA两种安装规格，减速比范围从3:1至100:1可选。
SKU | Product | Ratio | Frame Size | Backlash | |
|---|---|---|---|---|---|

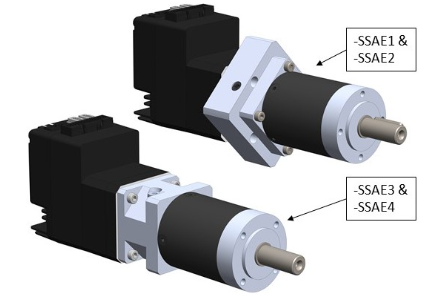

| 40PE007-SSAE4 | 40PE007-SSAE4 40 Mm Planetary Gearhead, 7:1 Ratio For HT17 And STM17 Motors | 7:01 | 40 mm | 15 arc-min | |
| 17VL004 | 17VL004 NEMA 17 Planetary Gearhead | N/A | 4:01 | NEMA 17 | 12 arc-min |
| 17VL005 | 17VL005 NEMA 17 Planetary Gearhead | N/A | 5:01 | NEMA 17 | 12 arc-min |
| 17VL007 | 17VL007 NEMA 17 Planetary Gearhead | N/A | 7:01 | NEMA 17 | 12 arc-min |
| 17VL010 | 17VL010 NEMA 17 Planetary Gearhead | N/A | 10:01 | NEMA 17 | 12 arc-min |
| 17VL015 | 17VL015 NEMA 17 Planetary Gearhead | N/A | 15:01 | NEMA 17 | 16 arc-min |
| 17VL020 | 17VL020 NEMA 17 Planetary Gearhead | N/A | 20:01 | NEMA 17 | 16 arc-min |
| 17VL025 | 17VL025 NEMA 17 Planetary Gearhead | N/A | 25:01 | NEMA 17 | 16 arc-min |
| 17VL028 | 17VL028 NEMA 17 Planetary Gearhead | N/A | 28:01 | NEMA 17 | 16 arc-min |
| 17VL040 | 17VL040 NEMA 17 Planetary Gearhead | N/A | 40:01 | NEMA 17 | 16 arc-min |
| 17VL050 | 17VL050 NEMA 17 Planetary Gearhead | N/A | 50:01 | NEMA 17 | 16 arc-min |
| 17VL070 | 17VL070 NEMA 17 Planetary Gearhead | N/A | 70:01 | NEMA 17 | 16 arc-min |
