瑞士ALESA AG 15910310 可转位刀片、 ALESA SCFT 可转位刀片、ALESA 可转位刀具（刀杆）、ALESA 1591系列、1666系列 、1791系列、12910系列可转位刀片、进口代理ALESA AG
ALESA 1591系列、1666系列 、1791系列、12910系列 可转位刀片 1591.0310
Indexable inserts SCFT 可转位刀片
HSS and carbide 高速钢（HSS）和硬质合金

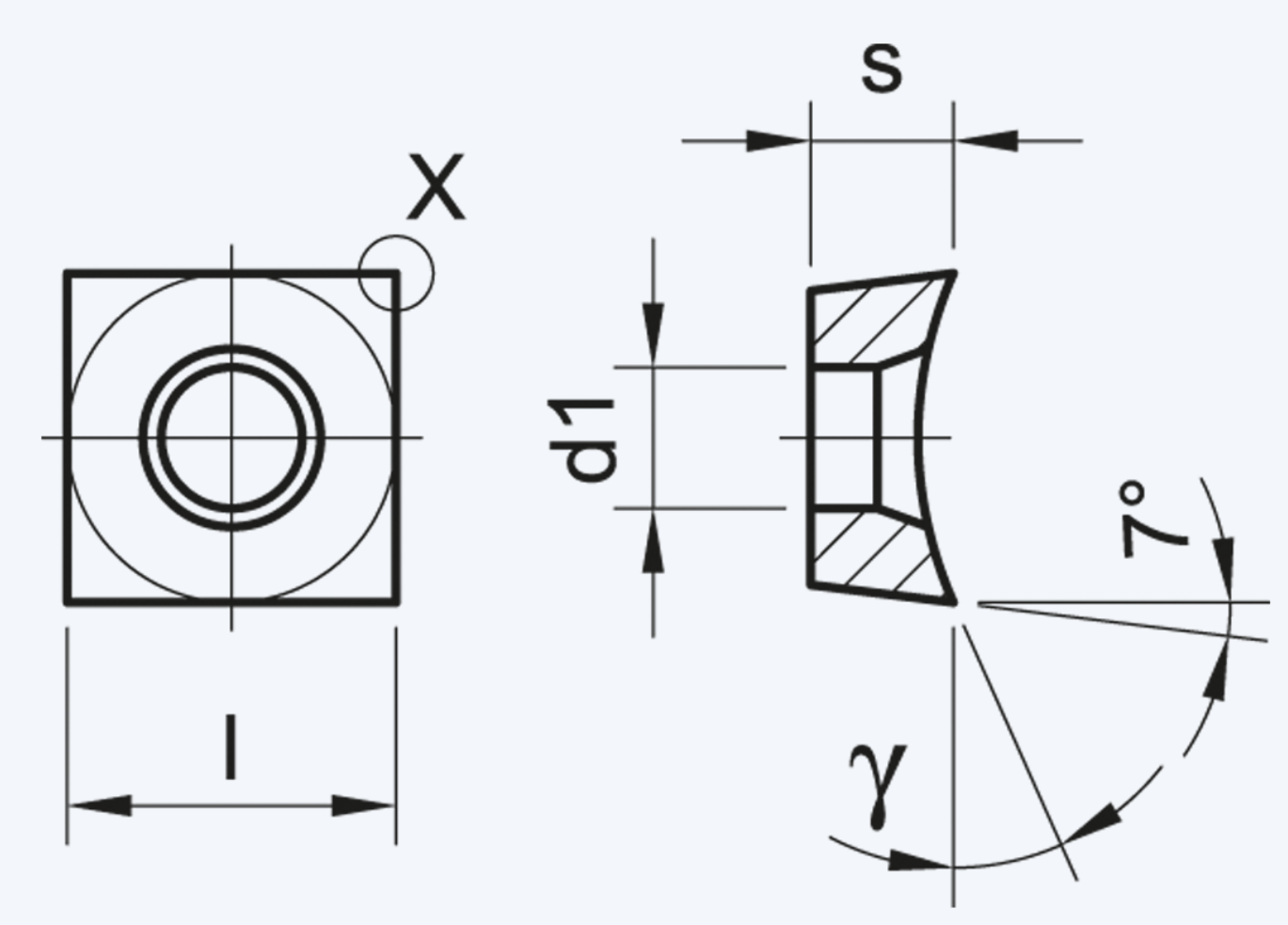

ALESA 可转位刀片，高速钢（HSS）和硬质合金材质货号参数
| Coating | Part No
| ISO Code | Type G/K
| l
mm
| s
mm
| d1
mm | Detail X | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HSS-E | TiN | 15910200 | SCFT 09 04 04 FN | G | 9.52 | 4 | 4.5 | 25° | R 0.4 | r/l | ||||
HSS-E | TiN | 15910220 | SCFT 09 04 08 FN | G | 9.52 | 4 | 4.5 | 25° | R 0.8 | r/l | ||||
HSS-E | TiN | 15910270 | SCFT 12 05 04 FN | G | 12.83 | 5.56 | 5.5 | 24° | R 0.4 | r/l | ||||
HSS-E | TiN | 15910290 | SCFT 12 05 08 FN | G | 12.83 | 5.56 | 5.5 | 24° | R 0.8 | r/l | ||||
HSS-E | TiN | 15910310 | SCFT 12 05 12 FN | G | 12.83 | 5.56 | 5.5 | 24° | R 1.2 | r/l | ||||
HSS-E | TiN | 15910700 | SCFT 09 04 04 FN | K | 9.52 | 4 | 4.5 | 30° | R 0.4 | r/l | ||||
HSS-E | TiN | 15910770 | SCFT 12 05 04 FN | K | 12.83 | 5.56 | 5.5 | 30° | R 0.4 | r/l | ||||
HSS-E | TiN | 15910790 | SCFT 12 05 08 FN | K | 12.83 | 5.56 | 5.5 | 30° | R 0.8 | r/l | ||||
HSS-E | TiAlN | 16660200 | SCFT 09 04 04 FN | G | 9.52 | 4 | 4.5 | 25° | R 0.4 | r/l | ||||
HSS-E | TiAlN | 16660220 | SCFT 09 04 08 FN | G | 9.52 | 4 | 4.5 | 25° | R 0.8 | r/l | ||||
HSS-E | TiAlN | 16660250 | SCFT 12 05 AC FN | G | 12.83 | 5.56 | 5.5 | 24° | 0.2×45° | r/l | ||||
HSS-E | TiAlN | 16660270 | SCFT 12 05 04 FN | G | 12.83 | 5.56 | 5.5 | 24° | R 0.4 | r/l | ||||
HSS-E | TiAlN | 16660290 | SCFT 12 05 08 FN | G | 12.83 | 5.56 | 5.5 | 24° | R 0.8 | r/l | ||||
HSS-E | TiAlN | 16660310 | SCFT 12 05 12 FN | G | 12.83 | 5.56 | 5.5 | 24° | R 1.2 | r/l | ||||
HSS-E | TiAlN | 16660700 | SCFT 09 04 04 FN | K | 9.52 | 4 | 4.5 | 30° | R 0.4 | r/l | ||||
Carbide MG20 | TiAlN | 17910255 * | SCFT 12 05 AC FN-111 | G | 12.83 | 5.56 | 5.5 | 24° | 0.2×45° | r/l | ||||
Carbide MG20 | TiAlN | 17910295 * | SCFT 12 05 08 FN-111 | G | 12.83 | 5.56 | 5.5 | 24° | R 0.8 | r/l | ||||
Carbide MG20 | AlCrN | 17910265 * | SCFT 12 05 AC FN-111 | G | 12.83 | 5.56 | 5.5 | 24° | 0.2×45° | r/l | ||||
Carbide MG20 | AlCrN | 17910305 * | SCFT 12 05 08 FN-111 | G | 12.83 | 5.56 | 5.5 | 24° | R 0.8 | r/l | ||||
Carbide CTS | AlCrN | 12910160 | SCFT 12 05 AC FN-312 | G | 12.83 | 5.56 | 5.5 | 24° | 0.2×45° | r/l | ||||
Carbide CTS | AlCrN | 12910180 | SCFT 12 05 08 FN-312 | G | 12.83 | 5.56 | 5.5 | 24° | R 0.8 | r/l |
ALESA 15910270

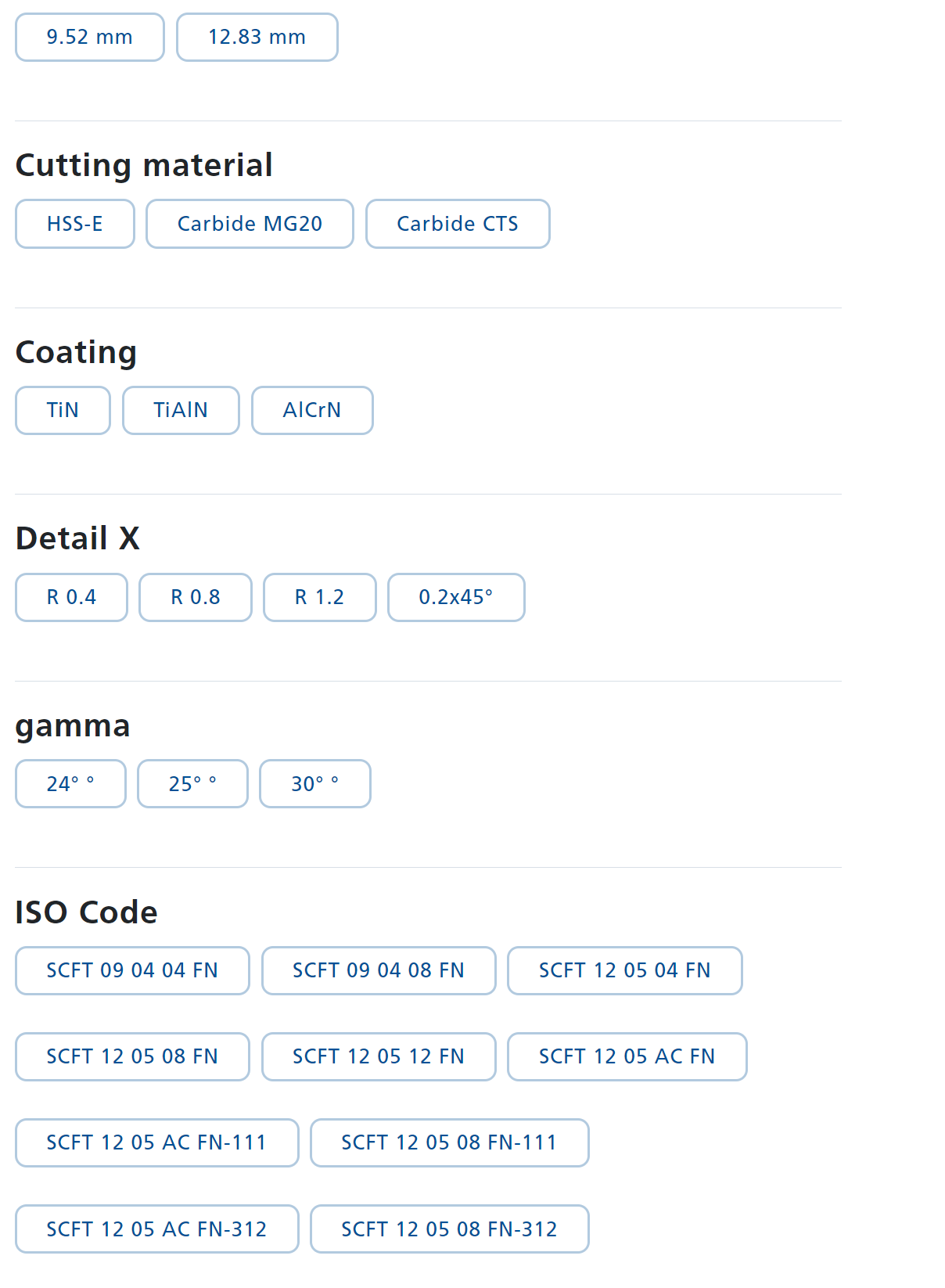

ALESA 可转位刀片，高速钢（HSS）和硬质合金材质选型参数：
