对频率或脉冲序列（例如流量、能量或旋转速度）进行测量和转换，将其转换为模拟标准信号，同时进行限值处理。
模拟标准信号输出

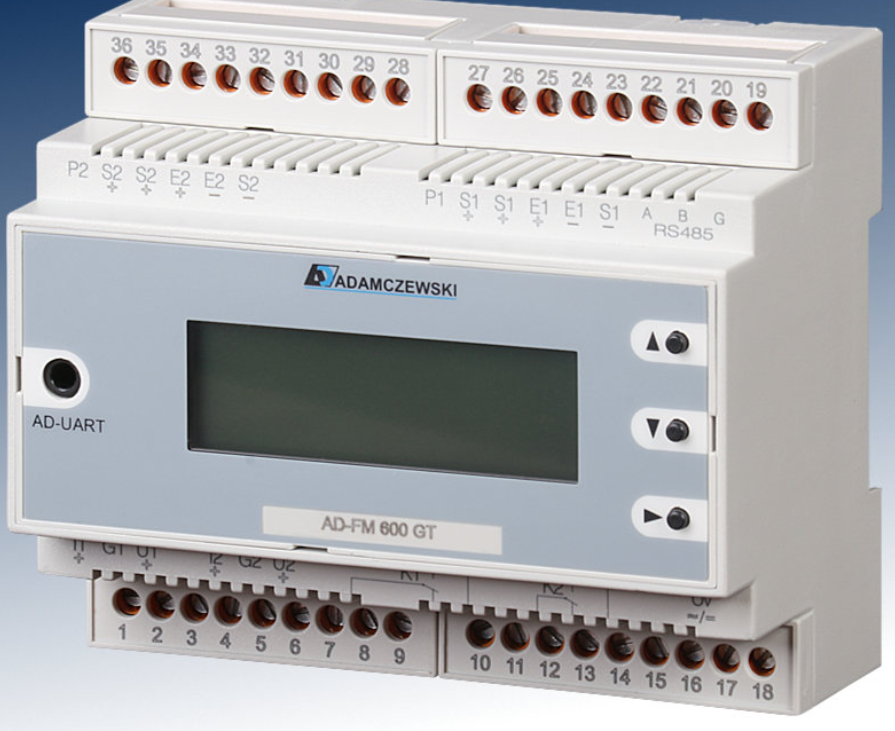

AD-FM 300 GT，AD-FM 600 GT
产品介绍
AD-FM 300 GT（1通道）和AD-FM 600 GT（2通道）是带有集成显示单元的可自由编程频率/模拟测量变送器。由于其对输入频率和每通道的最多2个模拟输出（电流/电压）或可评估的数字输出的多功能处理，该设备非常适用于同时显示瞬时流量并具有可评估的计数脉冲输出的水表（包括主表和子表）。特别是对于带有旁通的大型水表，AD-FM 600 GT中集成了一个经过缩放的求和。既输出瞬时流量，又输出计数数量。可以切换低水平抑制。
产品参数
| Digital inputs | |
|---|---|
| Input | NAMUR (EN 60947-5-6), reed contact, open-collector, 3-lead opto-transmitteror 24V active |
| Input frequency | Min. 0 … 10 mHz; max. 0 … 10 kHz |
| Frequency generator supply | Active: max. 10V/10mA; NAMUR:8V/8mA |
| Contact debouncing | Activatable, pulse duration > 40 ms |
| Current outputs | |
| Output range | 0 … 20 mA; 4 … 20 mA |
| Max. burden | 400 Ohm |
| Residual ripple | < 50 µAss |
| Voltage outputs | |
| Output range | 0 … 10 V, 2 … 10 V |
| Min. burden | 10 kOhm |
| Residual ripple | < 20 µVss |
| Relay outputs | |
| Maximum switching load AC | 250 V, 2 A |
| Maximum switching load DC | 50 V, 2 A |
| Contact construction | Changeover contact |
| Switching operations mechanical | 10000000 |
| At 230V/2A AC, cos(phi)=1 | 600000 |
| At 230V/2A AC, cos(phi)=0,4 | 200000 |
| At 24V/1 A DC | 200000 |
| Display | |
| Graphic-LCD | 122×32 Pixel, background lit |
| Digital display | 5-digit, can be configured |
| Display functions each channel | Input frequency, scaled instantaneous measuring value, quantity impulse, scaled dimension as quasi analogue bar |
| Accuracy | |
| Unit | 0,3% |
| Temperature influence | <100 ppm / K |
| Update rate | 1 s |
| Supply | |
| Supply voltage | 20 … 253 V DC / 50 … 253 V AC |
| Max. power consumption | 4,5 W / 7,5 VA |
| RS485-Bus | |
| Software protocol | Modbus-RTU |
| Data format | 19200, e, 8, 1 |
| Max. bus users | 247 |
| Bus termination | 120 ohms both sides at the end |
| Max. length of bus | 500 m (no stubs) |
| Cable | Twisted and shielded |
| Housing | |
| Dimensions (WxHxD) | 105x90x58 mm |
| Type of protection | IP 20 |
| Connection method | Screw clamp |
| Terminals, wire cross section | 2,5 mm² flex wire / 4 mm² one wire |
| Bolting torque terminals | 0,6 Nm |
| Skinning length | 6 mm |
| Weight | ~ 300 g |
| Manner of fastening | 35 mm DIN rail |
| Environmental conditions | |
| Ambient temperature | -10 … 50 °C |
| Storage and transport | -10 … 70 °C (no condensation) |
| EMC | |
| Product family standard | EN 61326-1 |
| Emitted interference | EN 55011, CISPR11 Cl. B, Gr. 1 |
| In a critical EMC environment, shielded encoder cables are recommended. | |
| Electrical safety requirements | |
| Product family standard | EN 61010-1 |
| Overvoltage category | II |
| Pollution degree | 2 |
| Galvanic isolation, test voltages | |
| Input/output | 1 kV RMS (1 min.) |
| Signal/auxiliary voltage | 3 kV RMS (1 min.) |

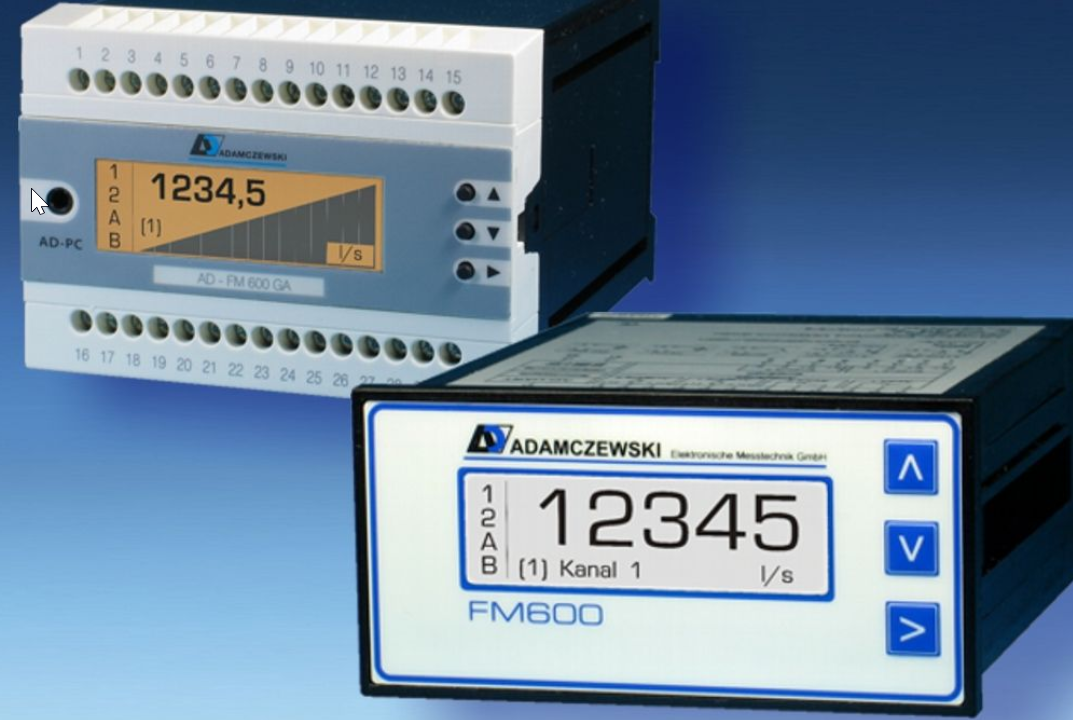

开关和脉冲输出
AD-FM 300/600 GA, AD-FM 300/600 FE
产品介绍
AD-FM 300 FE/GA（1通道）和AD-FM 600 FE/GA（2通道）是带有面板安装显示单元（FE）和DIN导轨安装（GA）的可自由编程的频率/模拟测量变送器。通过其对输入频率的多功能处理以及每通道的最多2个模拟输出（电流/电压）和可评估的数字输出，该设备非常适用于同时显示瞬时流量并具有可评估的计数脉冲输出的水表（包括主表和子表）。特别是对于带有旁通的水表，AD-FM 600 FE/GA中集成了一个经过缩放的求和。可以切换低水平抑制。瞬时流量和计数数量都会被输出和累加。
产品参数
| Digital inputs | |
|---|---|
| Input | NAMUR (EN 60947-5-6), reed contact, open-collector, 3-lead opto-transmitteror 24V active |
| Input frequency | Min. 0 … 10 mHz; max. 0 … 10 kHz |
| Frequency generator supply | Active: max. 13,5V (max. 20mA); NAMUR:8V/8mA |
| Contact debouncing | Activatable, pulse duration > 40 ms |
| Current outputs | |
| Output range | 0 … 20 mA; 4 … 20 mA |
| Max. burden | 400 Ohm |
| Residual ripple | <50 µAss |
| Voltage outputs | |
| Output range | 0 … 10 V, 2 … 10 V |
| Min. burden | 10 kOhm |
| Residual ripple | <20 µVss |
| Relay outputs | |
| Maximum switching load AC | 250 V, 2 A |
| Maximum switching load DC | 50 V, 2 A |
| Contact construction | Changeover contact |
| Switching operations mechanical | 10000000 |
| at 230V/2A AC, cos(phi)=1 | 600000 |
| at 230V/2A AC, cos(phi)=0,4 | 200000 |
| at 24V/1 A DC | 200000 |
| Display | |
| Graphic-LCD | 122×32 Pixel, background lit |
| Digital display | 5-digit, can be configured |
| Display functions each channel | Input frequency, scaled instantaneous measuring value, quantity impulse, scaled dimension as quasi analogue bar, channel description and scaling unit in plain language |
| Accuracy | |
| Unit | 0,3% |
| Temperature influence | <100 ppm / K |
| Response time | ~70 ms |
| Supply | |
| Supply voltage | 20 … 253 V DC / 50 … 253 V AC |
| Max. power consumption | 4 W / 5 VA |
| Housing front mounting | |
| Manner of fastening | Panel-mount-case (DIN 43 700) |
| Type of protection | IP 65 |
| Connection method | Screw clamp |
| Dimensions (WxHxD) | 96x48x131 mm |
| Front panel cut out | 92×44 mm |
| Switchboard thickness | 1,5-10 mm |
| Weight | ~230 g |
| DIN rail housing | |
| Manner of fastening | DIN rail 35mm (EN 50022) |
| Type of protection | IP 20 |
| Connection method | Screw clamp |
| Dimensions (WxHxD) | 100x74x119 mm |
| Weight | ~230 g |
| Environmental conditions | |
| Ambient temperature | -10 … 50 °C |
| Storage and transport | -10 … 70 °C (no condensation) |
| EMC | |
| Product family standard | EN 61326-1 |
| Emitted interference | EN 55011, CISPR11 Cl. B, Gr. 1 |
| In a critical EMC environment, shielded encoder cables are recommended. | |
| Electrical safety requirements | |
| Product family standard | EN 61010-1 |
| Overvoltage category | II |
| Pollution degree | 2 |
| Galvanic isolation, test voltages | |
| Input/output | 2 kV RMS (1 min.) |
| Signal/auxiliary voltage | 4 kV RMS (1 min.) |

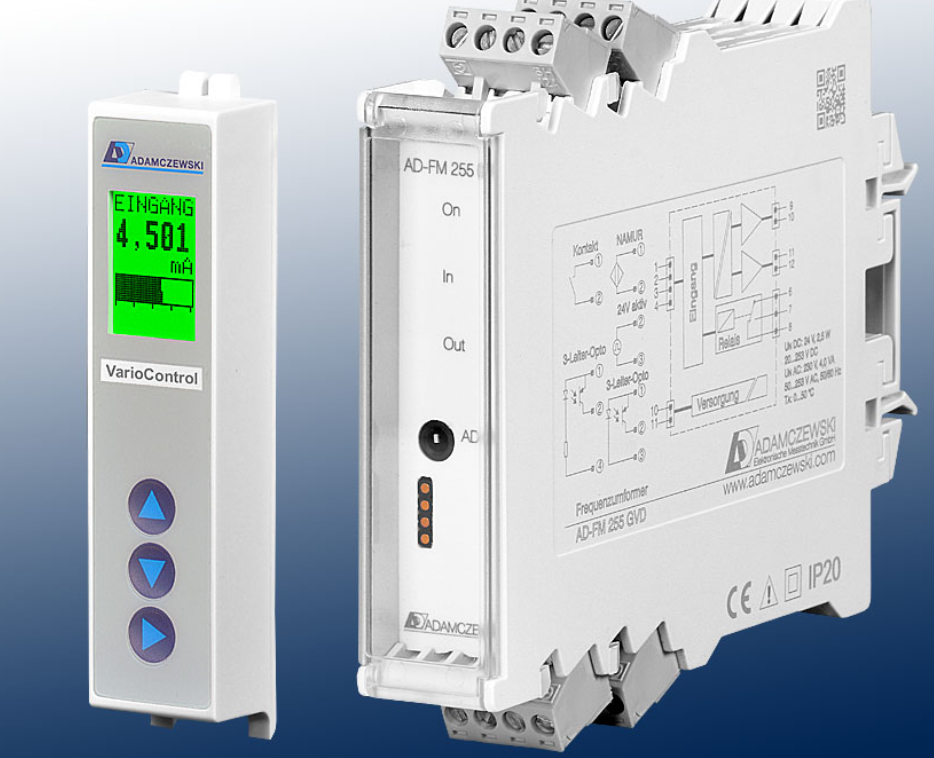

分频或倍频脉冲
AD-FM 255 GVD
产品介绍
频率测量转换器AD-FM 255 GVD提供了一个触发器或一个接触器，并将其脉冲序列转换为与之成比例的模拟信号。输出信号独立于连接负载，直到达到最大值。所有测量范围和输出都可以自由参数化。这可以通过可选的操作面板AD-VarioControl或通过编程软件AD-Studio进行。输入、输出和供电电压在高隔离度的情况下相互分离。
产品参数
| Digital input | |
|---|---|
| Input | NAMUR (EN 60947-5-6), reed contact, open-collector, 3-lead opto-transmitteror 24V active |
| Input frequency | Min. 0 … 10 mHz; max. 0 … 10 kHz |
| Frequency generator supply | Active: 8V / 8mA |
| Kontaktentprellung (activatable) | 40 ms |
| Output current | |
| Output range | 0 … 20 mA |
| Max. burden | 400 Ohm |
| Residual ripple | < 50 µAss |
| Output voltage | |
| Output range | 0 … 10 V |
| Min. burden | 10 kOhm |
| Residual ripple | <20 µVss |
| Accuracy | |
| Unit | <0,3% |
| Temperature influence | <100 ppm / K |
| Response time | Approx. 70 ms |
| Relay output | |
| Contact type | Potential-free changeover |
| Max. AC-breaking capacity | 250 V AC, 2 A AC, 50Hz |
| Max. DC-breaking capacity | 50 V DC, 2 A DC |
| Switching operations | |
| Mechanical | 107 |
| AC: 230V / 2A, cos(phi)=1 | 6 * 105 |
| AC: 230V / 2A, cos(phi)=0,4 | 2 * 105 |
| DC: 24V / 1A | 2 * 105 |
| Semiconductor output (optional) | |
| Max switching voltage | 30 V DC |
| Max. switching current | 50 mA DC |
| Voltage drop | < 1 V |
| Supply | |
| Voltage range AC | 50 … 253 V AC, 50/60 Hz |
| Nominal voltage AC | 230 V AC |
| Voltage range DC | 20 … 253 V DC |
| Nominal voltage DC | 24 V DC |
| Power consumption AC / DC | 3,7 VA / 2,1 W |
| Housing | |
| Dimensions (WxHxD) | 23x110x134 mm |
| With operating module (bxhxt) | 23x110x138 mm |
| Type of protection | IP 20 |
| Connection method | Detachable terminal clamp |
| Terminals, wire cross section | 2,5 mm² flex wire / 4 mm² one wire |
| Bolting torque terminals | 0,5 Nm |
| Weight | ~ 140 g |
| Manner of fastening | 35 mm DIN rail 35mm |
| Environmental conditions | |
| Ambient temperature | -10 … 50 °C |
| Storage and transport | -10 … 70 °C (no condensation) |
| EMC | |
| Product family standard 1) | EN 61326-1 |
| Emitted interference | EN 55011, CISPR11 Cl. B, Gr. 1 |
| In a critical EMC environment, shielded encoder cables are recommended. | |
| 1)During electromagnetic disturbance minor changes in output signal are possible. | |
| Electrical safety requirements | |
| Product family standard | EN 61010-1 |
| Overvoltage category | II |
| Pollution degree | 2 |
| Galvanic isolation, test voltages | |
| Input/output | 2 kV RMS (1 min.) |
| Signal/auxiliary voltage | 3 kV RMS (1 min.) |

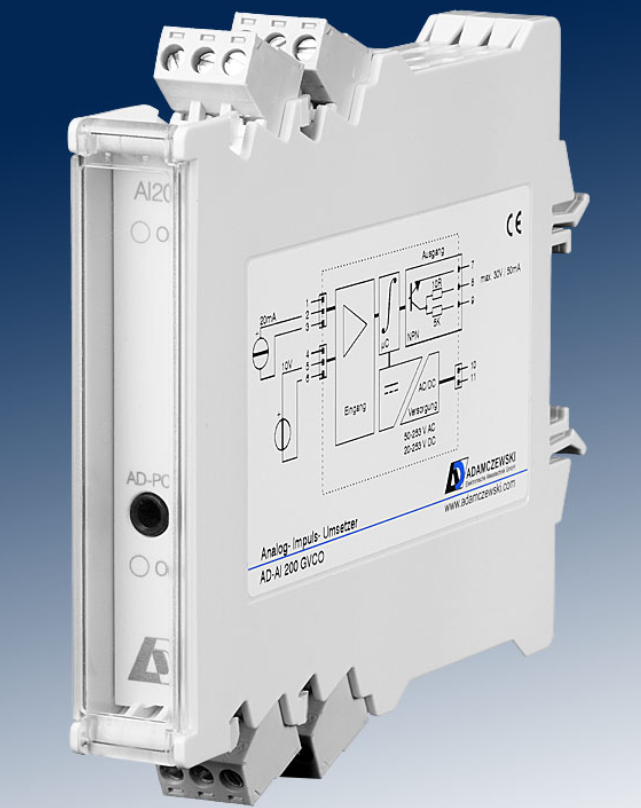

模拟标准信号转脉冲
AD-AI 200 GVC
产品介绍
模拟脉冲转换器AD-AI 200 GVC将模拟信号转换为数量信号，例如对应于流量或吞吐量。这些脉冲可以通过内部继电器输出，或者选择性地通过更快的晶体管输出。AD-AI 200 GVC配备了一个紧凑的开关电源，在广泛的供电电压范围内高效工作。该转换器可以通过具有可用参数软件AD-Studio的PC进行配置。但是，它也可以预设交付。
产品参数
| Input | |
|---|---|
| Input current | 0/4 … 20 mA (Rin: 50 Ohm) resolution 10 Bit |
| Input voltage | 0/2 … 10 V (Rin: 100 kOhm) resolution 10 Bit |
| Relay output | |
| Max. load AC | 250 V / 2 A (cos phi = 1) |
| Max. load DC | 50 V / 1 A (resistive load) |
| Cycles AC- load | 2 A (cos phi = 1): ca. 110000 |
| Cycles DC- load | 1 A (resistive load): ca. 100000 |
| Pulse duration | 0,5 … 5 s |
| Transistor output (optional) | |
| Max. load DC | 30V / 50mA |
| Pulse duration | 0,05 … 5 s (50% duty cycle at high frequency) |
| Supply | |
| Voltage range | 20 … 253 V DC / 50 … 253 V AC |
| Power consumption | Max. 1,5 W / 2,6 VA (50 Hz) |
| Accuracy | |
| Accuracy | < 0,2 % |
| Input (AD-Converter) | Ca. 0,1 % of full scale |
| Housing | |
| Dimensions (WxHxD) | 18x110x134 mm |
| Type of protection | IP 20 |
| Connection method | Detachable terminal clamp (2,5 mm² flex wire / 4 mm² one wire) |
| Bolting torque screw terminals | 0,5 Nm |
| Weight | 135 g |
| Manner of fastening | DIN rail 35mm (EN 50022) |
| Environmental conditions | |
| Ambient temperature | -10 … 50 °C |
| Storage and transport | -10 … 70 °C (no condensation) |
| EMC | |
| Product family standard | EN 61326-1 |
| Emitted interference | EN 55011, CISPR11 Cl. B, Gr. 1 |
| Electrical safety requirements | |
| Product family standard | EN 61010-1 |
| Galvanic isolation, test voltages | |
| Input / output | 4 kV (1 min.) |
| Signal / supply unit | 4 kV (1 min.) |
| Protection circuits | |
| Input | Electrical surge protection |
| Power supply | Electrical surge and reverse current protection |
| Relay output | No protection |
| Transistor output | Electrical surge protection |

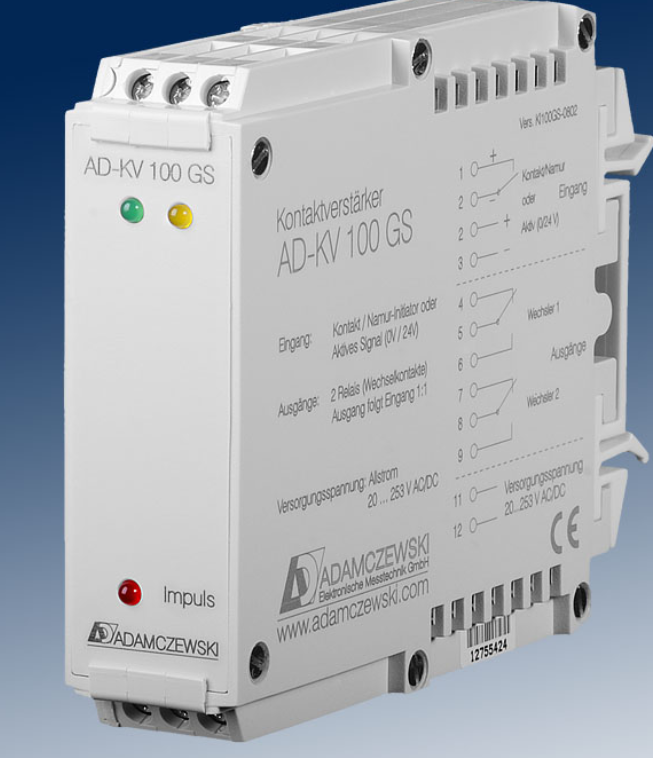

接点保护
AD-KV 100 GS, AD-KV 100 GS-O
产品介绍
接点保护脉冲继电器（开关放大器）主要用于保护弱传感器接点或放大二进制传感器信号。AD-KV 100 GS(o)在输出上提供输入脉冲，暂时放大1:1。同时，它将经过处理的输入信号转换为具有恒定可调长度的输出脉冲（通过前面的调节器进行调整）。典型的输入信号包括簧片开关、根据Namur标准（DIN EN 60947-5-6）的信号发生器、TTL电平、电压信号或电阻变化。输出处有耐用且无电位的触点。版本AD-KI 100 GSO具有无磨损的晶体管输出，通过光耦合器也进行了电气隔离。此外，该设备还配备了一种电子宽范围电源，可以从广泛的供电电压范围内高效供应AD-KV 100 GS(o)的能量。
产品参数
| Impulse input | |
|---|---|
| Min. pulse width | 2 ms |
| Namur supply voltage | Ca. 8,2 V DC |
| Logic level for Namur signals | Low < 1,2 mA … High > 2,1 mA |
| Max. input voltage (active) | 30 V DC |
| Logic level for active signals | Low < 5 V … High > 20 V |
| Type of contact | Potential-free |
| Pulse processing | |
| Output pulse length | Output follows input 1:1 |
| Relay outputs | |
| Maximum switching load AC | 250 V, 2 A |
| Maximum switching load DC | 50 V, 2 A |
| Contact construction | Potential-free changeover |
| Switching operations mechanical | 10000000 |
| At 230V/2A AC, cos(phi)=1 | 600000 |
| At 230V/2A AC, cos(phi)=0,4 | 200000 |
| At 24V/1 A DC | 200000 |
| Semiconductor outputs | |
| Max switching voltage | 30 V DC |
| Max. switching current | 50 mA DC |
| Working voltage at pullup | 10 … 30 V DC |
| Internal pullup | 5 kOhm |
| Supply | |
| Voltage range AC | 50 … 253 V AC, 50/60 Hz |
| Nominal voltage AC | 230 V AC |
| Voltage range DC | 20 … 253 V DC |
| Nominal voltage DC | 24 V DC |
| Power consumption AC / DC | 3 VA / 2W |
| Transmission behaviour | |
| Temperature influence | 100 ppm/K |
| Response time | ~ 5 ms |
| Housing | |
| Dimensions (WxHxD) | 23x78x103 mm |
| Type of protection | IP 20 |
| Connection method | Screw clamp |
| Terminals, wire cross section | 2,5 mm² flex wire / 4 mm² one wire |
| Bolting torque terminals | 0,5 Nm |
| Weight | ~ 115 g |
| Manner of fastening | 35 mm DIN rail 35mm |
| Environmental conditions | |
| Ambient temperature | -10 … 50 °C |
| Storage and transport | -10 … 70 °C (no condensation) |
| EMC | |
| Product family standard | EN 61326-1 1) |
| Emitted interference | EN 55011, CISPR11 Cl. B, Gr. 1 |
| Electrical safety requirements | |
| Product family standard | EN 61010-1 |
| Overvoltage category | II |
| Pollution degree | 2 |
| Galvanic isolation, test voltages | |
| Input / output | 3,75 kV, 50 Hz (1 min.) |
| Signal / supply unit | 4 kV, 50 Hz (1 min.) |
| Protection circuits | |
| Input | Electrical surge protection |
| Power supply | Protection against over voltage, over temperature and reverse polarity |
耦合继电器
AD-KR 11 GX, AD-KR 12 GX, AD-KR 22 GX
产品介绍

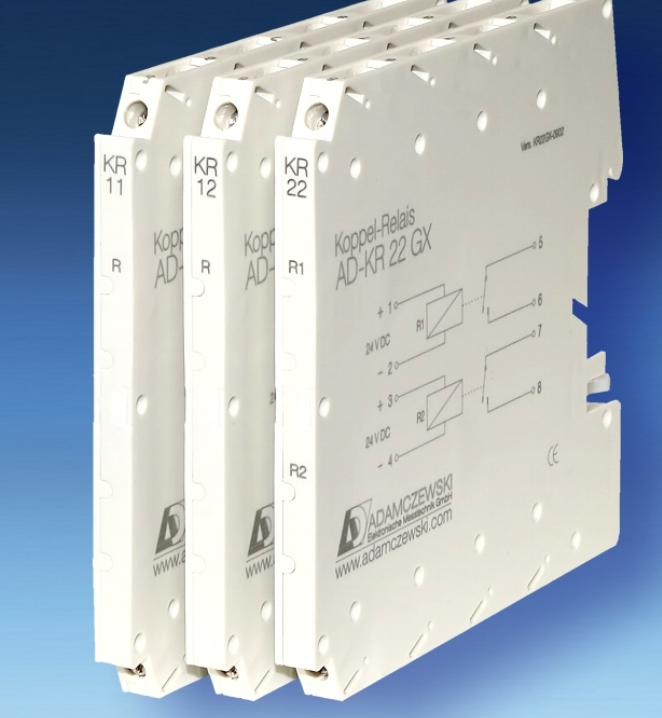

AD-KR 11 GX、AD-KR 12 GX（1通道）和AD-KR 22 GX（2通道）系列的耦合继电器通过24V辅助电压实现对接点消息的电气隔离和放大。在前面，继电器的工作状态通过红色发光二极管指示。一个自由轮二极管和反极性保护是内置的。由于其狭窄的构造类型，整体外壳宽度仅为6.2毫米，实现了高的装箱密度。
