| Current-inputs (I1…I3) |
|---|
| Measuring range | 0 … 33 mA AC (0 … 100 A AC via external current transformer) |
| Input resistance | Ca. 10 Ohm |
| Voltage-inputs (L1…L3) |
|---|
| Measuring range | 230 V AC (+/- 10 %) |
| Input resistance | Ca. 500 kOhms |
| External current-transformer |
|---|
| Primary current | 0 … 100 A AC |
| Secondary current | 0 … 33 mA AC |
| Transformation ratio | 1:3000 (Np : Ns) |
| Maximum wire diameter | 15 mm |
| Max. secundary wire length | 2 m |
| Isolation-voltage | 2,5 kV / 1 min |
| Dimensions (WxHxD) | 32x42x46 mm |
| Load relays (K1 to K3) |
|---|
| Maximum switching load AC | 250 V, 9 A |
| Maximum switching load DC | 50 V, 9 A |
| Contact construction | Closing contact |
| Switching operations mechanical | 6 000 000 |
| At 230V/9A AC, cos(phi)=1 | 400 000 |
| At 230V/9A AC, cos(phi)=0,4 | 150 000 |
| At 24V/9A DC | 200 000 |
| Error-relay |
|---|
| Maximum switching load AC | 250 V, 2 A |
| Maximum switching load DC | 50 V, 2 A |
| Contact construction | Changeover contact |
| Switching operations mechanical | 10 000 000 |
| At 230V/2A AC, cos(phi)=1 | 600 000 |
| At 230V/2A AC, cos(phi)=0,4 | 200 000 |
| At 24V/2A DC | 200 000 |
| Supply |
|---|
| Voltage range AC | 230 V AC (+/- 10 %), 50/60 Hz (see voltage-inputs) |
| Nominal voltage AC | 230 V AC |
| Power consumption | Max. 5 VA |
| Transfer behavior – in reference to the current value |
|---|
| Basic accuracy | < 1 % (class 1) |
| Temperature influence | 80 ppm/K |
| Response time | < 2 s |
| Housing |
|---|
| Dimensions (WxHxD) | 105x90x58 mm |
| Type of protection | IP 20 |
| Connection method | Screw clamp |
| Terminals, wire cross section | 2,5 mm² flex wire / 4 mm² one wire |
| Bolting torque terminals | 0,6 Nm |
| Skinning length | 6 mm |
| Weight | ~ 225 g + 3x 75 g (current-transf.) |
| Manner of fastening | 35 mm DIN rail 35mm |
| Environmental conditions |
|---|
| Ambient temperature | -10 … 50 °C |
| Storage and transport | -10 … 70 °C (no condensation) |
| EMC |
|---|
| Product family standard | EN 61326-1 1) |
| Emitted interference | EN 55011, CISPR11 Cl. B, Gr. 1 |
| Electrical safety requirements |
|---|
| Product family standard | EN 61010-1 |
| Overvoltage category | II |
| Pollution degree | 2 |
| Safety measurement | EN 61010-2-030 |
| Measurement category | CAT III |
| Galvanic isolation, test voltages |
|---|
| Grid side to relay outputs | 4 kV, 50 Hz (1 min.) |
| Grid side to the pc-interface | 4 kV, 50 Hz (1 min.) |
| Grid side to control elements | 4 kV, 50 Hz (1 min.) |
| Load-relay to error-relay | 4 kV, 50 Hz (1 min.) |
| Protection circuits |
|---|
| Input | Electrical surge protection |
| Load-relay | Spark quenching |
| Power supply | Protection against over-temperature, over-voltage and over-current |
|
|---|
| 1) During checking, slight signal deviations are possible. |
| Heat pump control |
|---|
| SG-Ready |

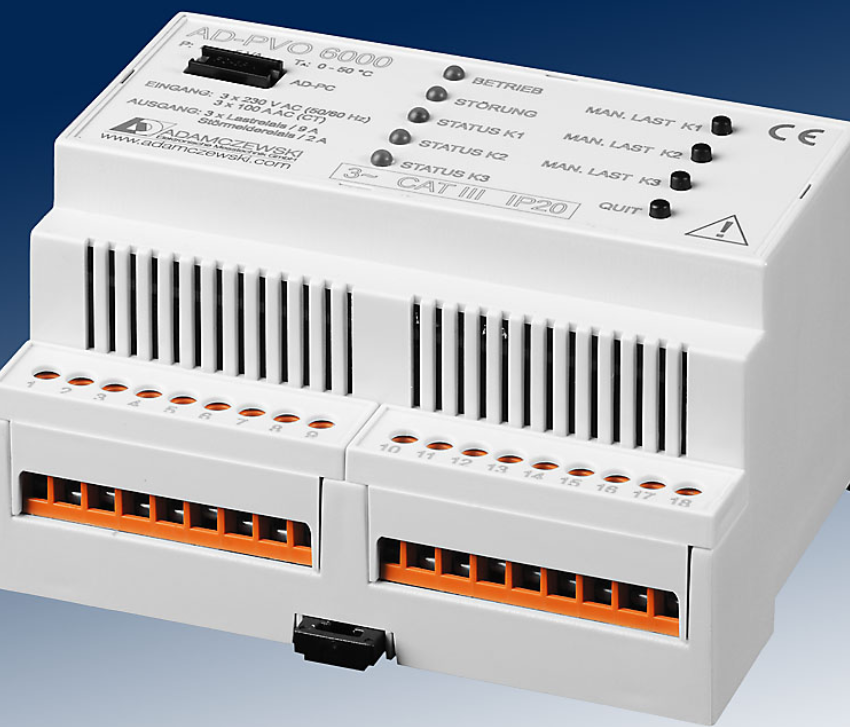

| With the PV optimizer AD PVO 6000 heat pumps can be signaled that enough PV surplus exists. |
| Thus, the heat pump can raise their storage or flow temperature and increase the personal consumption. |
| The optimizer is compatible with many SG-Ready (Smart Grid Ready) enabled heat pumps. The SG-Ready logo can be found on your heat pump. |
| The SG-ready interface is designed in in most cases as a contact input therefore, the overload relay of the PVO can be used easily as a signal for the temperature increase of the heat pump. |
| What is to be done at a SG-signal, it must be parameterized on the heat pump. |
| Through the three internal load relays, the heat pump can switch multiple states. It can be driven so several power levels. |
