将模拟和数字输入输出信号转换为RS485总线技术（差分双线总线），采用Modbus RTU协议。
在总线上的模拟标准信号输入

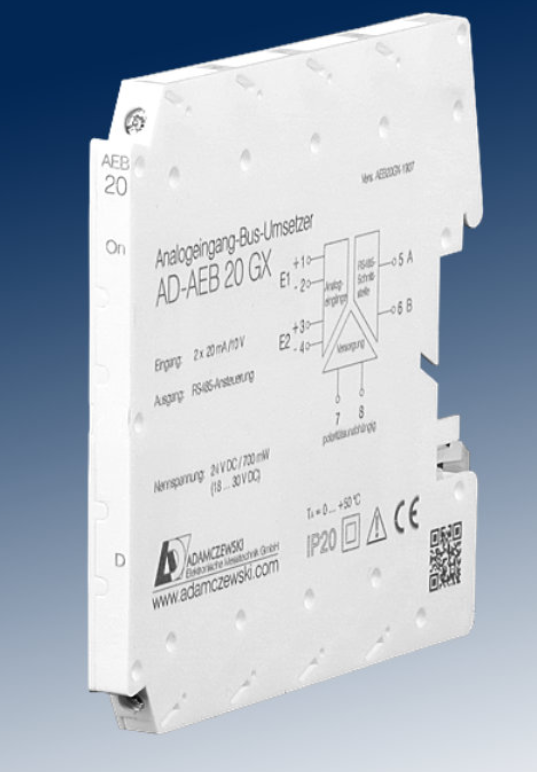

AD-AEB 20 GX
产品介绍
AD-AEB 20 GX实现了2通道模拟信号采集，同时提供经过数字处理的过程变量。信号通过RS485总线接口提供。可以通过实现的MODBUS命令调用模拟值和缩放值。有关缩放或滤波器的所有设置均通过MODBUS命令进行。
电源和RS485总线连接可以通过后方的DIN导轨连接器进行。该设备配备有两个旋转编码开关，可用于在设备上设置总线地址。
读取电流值时，输入电流电阻会自动开启。通过输入信号开关（E1 / E2），可以将每个信号输入永久连接到50欧姆的终端电阻，以便在供电电压失败时安全地完成电流回路。
产品参数
| Current inputs | |
|---|---|
| Measuring range | 0 … 20 mA |
| Input resistance | 50 Ohm |
| Voltage inputs | |
| Measuring range | 0 … 10 V |
| Input resistance | 100 kOhm |
| Signal detection | |
| Channel counts (U/I) | 2 |
| Basic accuracy | < +/- 0,3 % |
| Temperature influence | 80 ppm/K |
| Sampling rate / resolution | 100 ms / 10 bit |
| Transmission behaviour | |
| Response time | Max. 15 ms |
| RS485-Bus | |
| Software protocol | Modbus-RTU |
| Data format | 19200, e, 8, 1 |
| Max. bus users | 99 |
| Bus termination | 120 ohms both sides at the end |
| Max. length of bus | 500 m (no spur lines) |
| Cable | Twisted and shielded |
| Supply | |
| Supply voltage | 18 … 30 V DC |
| Max. power consumption | 600 mW (24V DC) |
| Housing | |
| Dimensions (WxHxD) | 6,2 x 92 x 101 mm³ |
| Manner of fastening | DIN rail mounting 35mm, EN 50022 |
| Type of protection | IP 20 |
| Connection method | Screw clamp |
| Bolting torque terminals | 0,5 Nm |
| Wire cross section | Max. 2,5 mm2 |
| Weight | ~ 70 g |
| Environmental conditions | |
| Permissible ambient temperature | -10 … +50 °C |
| Storage and transport | -10 … +70 °C (no condensation) |
| EMC | |
| Product family standard 1) | EN 613261 |
| Emission 2) | EN 55011, CISPR11 Cl. A, Gr. 1 |
| 1) During checking, slight signal deviations are possible. | |
| 2) Warning: This device is not intended to be used in residential areas and can not ensure adequate protection of radio reception in such environments. | |
| Electrical safety requirements | |
| Product family standard | EN 61010-1 |
| Galvanic isolation, test voltages | |
| RS485 bus / power supply | 1,5 kV, 50 Hz (1 min) |
| Analog inputs / power supply | 1.5 kV, 50 Hz (1 min) |
| Analog input / RS485 bus | 1,5 kV, 50 Hz (1 min) |
| Analog inputs between themselves | 0 kV |
| Protection circuits | |
| Power supply | Electrical surge and reverse current protection |

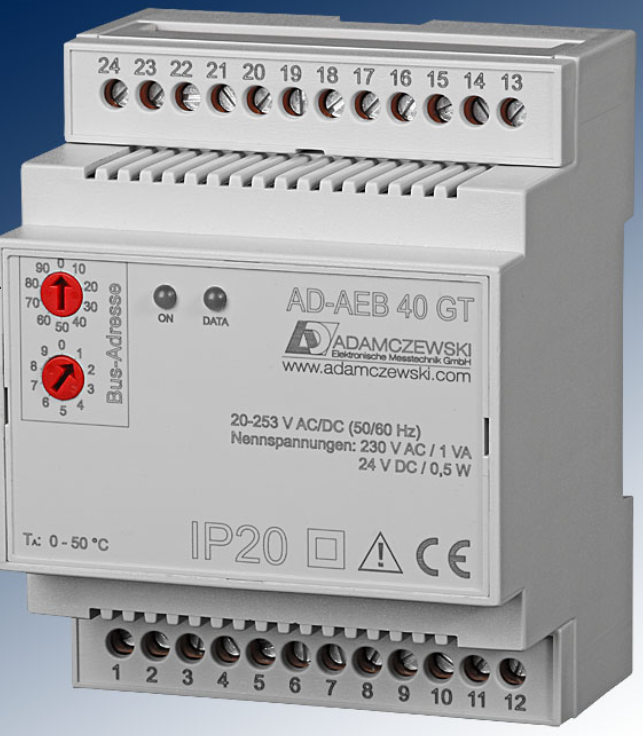

AD AEB 40 GT
产品介绍
AD AEB 40 GT实现了4通道模拟信号采集，同时提供经过数字处理的过程变量。信号通过可用的RS485总线接口提供。可以通过实现的MODBUS命令获取模拟值和缩放值。所有关于缩放或滤波器的设置都通过MODBUS命令进行。
工作电压由绿色LED指示。数据通信由黄色LED指示。检测到超出定义的测量范围的无效测量信号时，绿色LED会闪烁。
产品参数
| Current inputs | |
|---|---|
| Measuring range | 0 … 20 mA |
| Input resistance | 50 Ohm |
| Voltage inputs | |
| Measuring range | 0 … 10 V |
| Input resistance | 100 kOhm |
| Signal detection | |
| Channel counts (U/I) | 4 |
| Basic accuracy | < 0,2 % |
| Temperature influence | 80 ppm/K |
| Sampling rate / resolution | 100 ms / 11 bit |
| RS485-Bus | |
| Software protocol | Modbus-RTU |
| Data format | 19200, e, 8, 1 |
| Max. bus users | 99 |
| Bus termination | 120 ohms both sides at the end |
| Max. length of bus | 500 m (no stubs) |
| Cable | Twisted and shielded |
| Supply | |
| Voltage range AC | 50 … 253 V AC, 50/60 Hz |
| Nominal voltage AC | 230 V AC |
| Power consumption | Max. 1,5 VA |
| Voltage range DC | 20 … 253 V DC |
| Nominal voltage DC | 24 V DC |
| Power consumption | Max. 0,5 W |
| Housing | |
| Dimensions (WxHxD) | 71 x 90 x 58 mm |
| Type of protection | IP 20 |
| Connection method | Screw clamp |
| Terminals, wire cross section | 2,5 mm² flex wire / 4 mm² one wire |
| Bolting torque terminals | 0,6 Nm |
| Skinning length | 6 mm |
| Weight | ~ 140 g |
| Manner of fastening | 35 mm DIN rail 35mm |
| Environmental conditions | |
| Ambient temperature | -10 … 50 °C |
| Storage and transport | -10 … 70 °C (no condensation) |
| EMC | |
| Product family standard | EN 61326-1 1) |
| Emitted interference | EN 55011, CISPR11 Cl. B, Gr. 1 |
| Electrical safety requirements | |
| Product family standard | EN 61010-1 |
| Overvoltage category | II |
| Pollution degree | 2 |
| Galvanic isolation, test voltages | |
| Grid side to RS485-Bus | 3 kV, 50 Hz (1 min.) |
| Signal / supply unit | 3 kV, 50 Hz (1 min.) |
| Signal / RS485 bus | 1 kV, 50 Hz (1 min.) |
| Protection circuits | |
| Input | Electrical surge protection |
| RS485-Bus | Electrical surge protection |
| Power supply | Electrical surge protection |
总线上的数字输入
AD-KEB 20 GX
产品介绍
两通道的AD-KEB 20 GX用于读取以触点或主动24V信号形式存在的数字信号。通过红色LED在设备上指示相应的信号状态。设备通信通过RS485总线接口进行，并使用MODBUS RTU协议实现。 电源和RS485总线连接可以通过后方的DIN导轨连接器进行。该设备配备有两个旋转编码开关，可用于在设备上设置总线地址。 光学搜索功能允许在网络中定位单个设备。为此，绿色LED在限定时间内以闪烁模式设置，时间范围为1到255秒。 界面设置以及设备地址可以通过Modbus命令在操作过程中进行修改。 所有Modbus寄存器地址及其相关命令都列在文档附件中。可预设的绝对计数器不断累加传入的脉冲，并每小时保存在非易失性存储器中。在读数期间，当前计数器会重置以检测子集。
产品参数
| Input | |
|---|---|
| Input voltage | 24 V DC / 3,5 mA (max. 30V) |
| Switching threshold | ~ 17 V |
| Contact load | 5 V / 1,5 mA |
| Measure | |
| Frequency | < 2200 Hz |
| Gate time | 1 s |
| Accuracy | +/- 0,3% |
| Counter | 0…4294967295 |
| Pulse width (counter) | > 25 ms |
| Counting frequency | < 20 Hz |
| Contact debouncing | 20 ms |
| Counter storage | Stündlich |
| Transmission behaviour | |
| Response time | Max. 15 ms |
| RS485-Bus | |
| Software protocol | Modbus-RTU |
| Data format | 19200, e, 8, 1 |
| Max. bus users | 99 |
| Bus termination | 120 ohms both sides at the end |
| Max. length of bus | 500 m (no spur lines) |
| Cable | Twisted and shielded |
| Supply | |
| Supply voltage | 18 … 30 V DC |
| Max. power consumption | 800 mW (24V DC) |
| Housing | |
| Dimensions (WxHxD) | 6,2 x 92 x 101 mm³ |
| Manner of fastening | DIN rail mounting 35mm, EN 50022 |
| Type of protection | IP 20 |
| Connection method | Screw clamp |
| Bolting torque terminals | 0,5 Nm |
| Wire cross section | Max. 2,5 mm2 |
| Weight | ~ 70 g |
| Environmental conditions | |
| Permissible ambient temperature | -10 … +50 °C |
| Storage and transport | -10 … +70 °C (no condensation) |
| EMC | |
| Product family standard 1) | EN 61326-1 |
| Emission 2) | EN 55011, CISPR11 Cl. A, Gr. 1 |
| 1) During checking, slight signal deviations are possible. | |
| 2) Warning: This device is not intended to be used in residential areas and can not ensure adequate protection of radio reception in such environments. | |
| Electrical safety requirements | |
| Product family standard | EN 61010-1 |
| Galvanic isolation, test voltages | |
| RS485 bus / power supply | 1,5 kV, 50 Hz (1 min) |
| Digital input / Power supply | 1.5 kV, 50 Hz (1 min) |
| Digital input / RS485 bus | 1,5 kV, 50 Hz (1 min) |
| Digital input between themselves | 0 kV |
| Protection circuits | |
| RS485-Bus | Electrical surge protection |
| Power supply | Electrical surge and reverse current protection |
总线上的温度信号

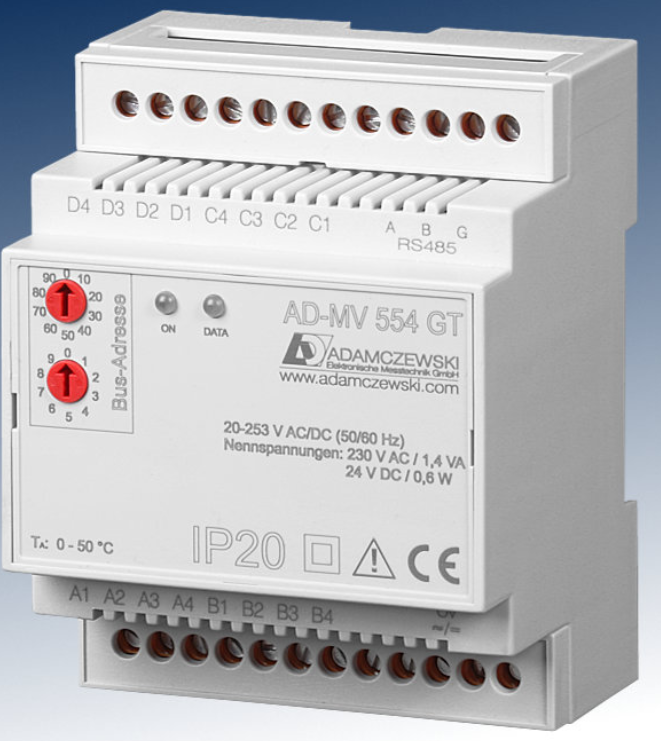

AD-MV 554 GT
产品介绍
4通道变送器AD-MV 554 GT是一款可编程的测量设备，用于测量电阻和毫伏信号。由于集成了功能块和自由线性化曲线，AD-MV 554 GT可以通用使用，主要用于温度传感器的温度测量。通过Modbus RTU协议，可以通过适当的寄存器访问测量值。通过前面板可访问的地址开关，可以设置1到99的设备地址。所有参数都通过RS485接口使用“AD-Studio” PC配置软件进行设置。接口参数也可以设置用于将设备插入现有总线系统中。工作电压由绿色发光二极管指示。数据通信由黄色发光二极管表示。检测到超出定义的测量范围的无效测量信号时，绿色LED会闪烁。
产品参数
总线到模拟标准信号输出

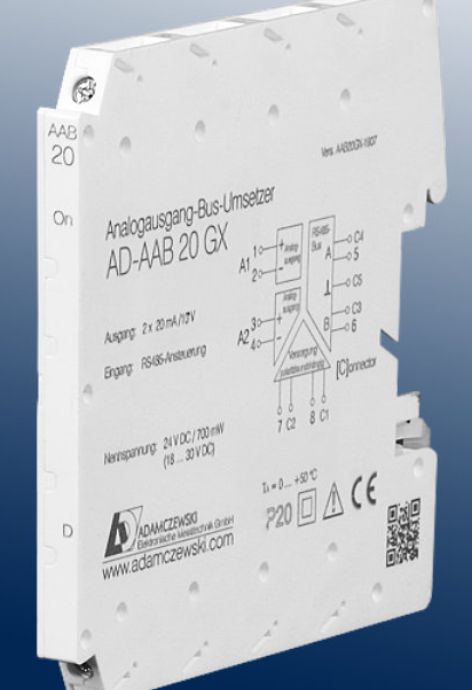

AD-AAB 20 GX
产品介绍
AD-AAB 20 GX提供2通道模拟信号的输出。设备通信采用MODBUS RTU协议实现。可以通过实现的MODBUS命令设置模拟设定值。 电源和RS485总线连接可以通过后方的DIN导轨连接器进行。该设备配备有两个旋转编码开关，可用于在设备上设置总线地址。 工作电压由绿色LED指示。数据通信由黄色LED指示。光学搜索功能允许在网络中定位单个设备。为此，绿色LED在限定时间内以闪烁模式设置，时间范围为1到255秒。 界面设置以及设备地址可以通过Modbus命令在操作过程中进行修改。所有Modbus寄存器地址及其相关命令都列在文档附件中。
产品参数
| Current outputs | |
|---|---|
| Range | 0 … 20 mA |
| Output load | Max. 450 Ohm |
| Voltage outputs | |
| Range | 0 … 10 V |
| Output load | Min. 10 kOhm |
| Signal output | |
| Channel counts (U/I) | 2 |
| Basic accuracy | < +/- 0,3 % |
| Temperature influence | 100 ppm/K |
| Resolution | 12 bit |
| Transmission behaviour | |
| Response time | Max. 15 ms |
| RS485-Bus | |
| Software protocol | Modbus-RTU |
| Data format | 19200, e, 8, 1 |
| Max. bus users | 99 |
| Bus termination | 120 ohms both sides at the end |
| Max. length of bus | 500 m (no spur lines) |
| Cable | Twisted and shielded |
| Supply | |
| Supply voltage | 18 … 30 V DC |
| Max. power consumption | 1400 mW (24V DC) |
| Housing | |
| Dimensions (WxHxD) | 6,2 x 92 x 101 mm³ |
| Manner of fastening | DIN rail mounting 35mm, EN 50022 |
| Type of protection | IP 20 |
| Connection method | Screw clamp |
| Bolting torque terminals | 0,5 Nm |
| Wire cross section | Max. 2,5 mm2 |
| Weight | ~ 70 g |
| Environmental conditions | |
| Permissible ambient temperature | -10 … +50 °C |
| Storage and transport | -10 … +70 °C (no condensation) |
| EMC | |
| Product family standard 1) | EN 61326-1 |
| Emission 2) | EN 55011, CISPR11 Cl. A, Gr. 1 |
| 1) During checking, slight signal deviations are possible. | |
| 2) Warning: This device is not intended to be used in residential areas and can not ensure adequate protection of radio reception in such environments. | |
| Electrical safety requirements | |
| Product family standard | EN 61010-1 |
| Galvanic isolation, test voltages | |
| RS485 bus / power supply | 1,5 kV, 50 Hz (1 min) |
| Analog output / power supply | 1.5 kV, 50 Hz (1 min) |
| Analog output / RS485 bus | 1,5 kV, 50 Hz (1 min) |
| Analog outputs between themselves | 0,5 kV, 50 Hz (1 min) |
| Protection circuits | |
| Power supply | Electrical surge and reverse current protection |
总线到切换输出

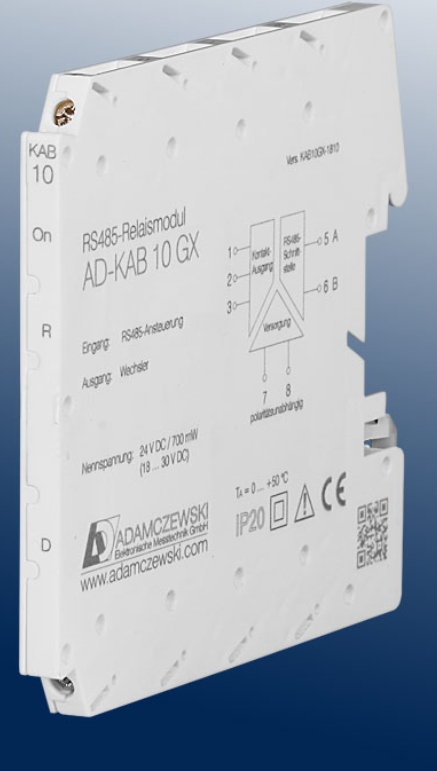

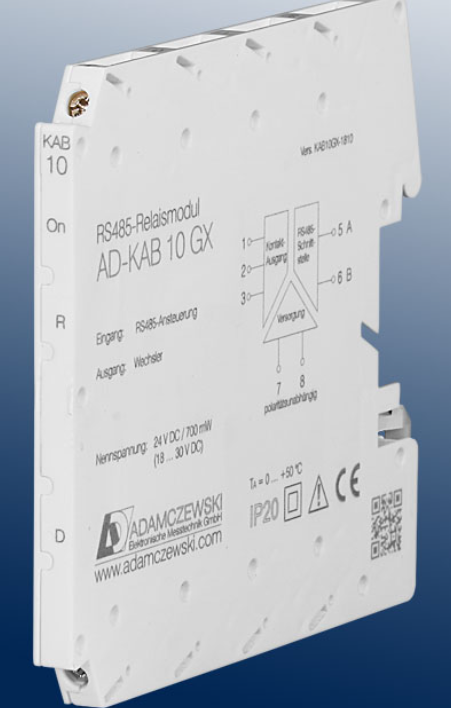

AD-KAB10 GX
产品介绍
AD-KAB10 GX提供可远程控制的继电器切换接触（切换接触）。远程控制通过RS-485总线接口进行，设备通信采用MODBUS RTU协议。
电源和RS485总线连接可以通过后方的DIN导轨连接器进行。该设备配备有两个旋转编码开关，可用于在设备上设置总线地址。
静态接触控制是通过控制值0或1进行的。
脉冲输出功能（1Hz）在控制值为1到255时触发，并可以随时使用其他值进行修改或停止。当在柜子中有多个设备安装在一条导轨上时，光学搜索功能允许在设备网络中定位单个设备。为此，绿色LED在限定时间内以闪烁模式设置，时间范围为1到255秒。
对于继电器，可以设置定义的起始状态，以便在供电电压在停电后恢复时，系统可以假定所需的起始状态。
界面设置以及设备地址可以通过Modbus命令在操作过程中进行修改。所有Modbus寄存器地址及其相关命令都列在文档附件中。
产品参数
| Relay | |
|---|---|
| Maximum switching load AC | 250 V, 2 A |
| Maximum switching load DC | 50 V, 2 A |
| Contact construction | Changeover contact |
| Switching operations mechanical | 10000000 |
| At 230V/2A AC, cos(phi)=1 | 500000 |
| At 24V/1 A DC | 1000000 |
| Transmission behaviour | |
| Response time | Max. 15 ms |
| RS485-Bus | |
| Software protocol | Modbus-RTU |
| Data format | 19200, e, 8, 1 |
| Max. bus users | 99 |
| Bus termination | 120 ohms both sides at the end |
| Max. length of bus | 500 m (no spur lines) |
| Cable | Twisted and shielded |
| Supply | |
| Supply voltage | 18 … 30 V DC |
| Max. power consumption | 700 mW (24V DC) |
| Housing | |
| Dimensions (WxHxD) | 6,2 x 92 x 101 mm³ |
| Manner of fastening | DIN rail mounting 35mm, EN 50022 |
| Type of protection | IP 20 |
| Connection method | Screw clamp |
| Bolting torque terminals | 0,5 Nm |
| Wire cross section | Max. 2,5 mm2 |
| Weight | ~ 70 g |
| Environmental conditions | |
| Permissible ambient temperature | -10 … +50 °C |
| Storage and transport | -10 … +70 °C (no condensation) |
| EMC | |
| Product family standard 1) | EN 61326-1 |
| Emission 2) | EN 55011, CISPR11 Cl. A, Gr. 1 |
| 1) During checking, slight signal deviations are possible. | |
| 2) Warning: This device is not intended to be used in residential areas and can not ensure adequate protection of radio reception in such environments. | |
| Electrical safety requirements | |
| Product family standard | EN 61010-1 |
| Galvanic isolation, test voltages | |
| RS485 bus / power supply | 1,5 kV, 50 Hz (1 min) |
| Relay contact | 3 kV, 50 Hz (1 min) |
| Protection circuits | |
| RS485-Bus | Electrical surge protection |
| Power supply | Electrical surge and reverse current protection |
AD-KAB 40 GT和AD-KAB 80 GT
产品介绍
使用RS485继电器模块AD-KAB 40 GT和AD-KAB 80 GT，可以通过RS485总线远程控制4个或8个无电位的常开触点。在RS485总线上使用的Modbus-RTU协议是一种开放标准，因此非常灵活。最多可以通过单独的Modbus寄存器对八个继电器进行个别控制。这些设备配备有两个旋转编码开关，可用于在设备上设置总线地址。如果DIP开关处于活动状态（手动操作中），则会忽略相应继电器的总线命令，因为手动操作具有优先权。由于紧凑而高效的开关电源，这些设备可以在广泛的供电电压范围内运行。
产品参数
| RS485-Bus | |
|---|---|
| Software protocol | Modbus-RTU |
| Data format (default setting) | 19200, e, 8, 1 |
| Max. bus users | 99 |
| Bus termination | 120 ohms both sides at the end |
| Max. length of bus | 500 m (no spur lines) |
| Cable | Twisted and shielded |
| Relay | |
| Maximum switching load AC | 250 V, 2 A |
| Maximum switching load DC | 50 V, 2 A |
| Contact construction | Closing contact |
| Switching operations mechanical | 10000000 |
| At 230V/2A AC, cos(phi)=1 | 600000 |
| At 230V/2A AC, cos(phi)=0,4 | 200000 |
| At 24V/1 A DC | 200000 |
| Supply | |
| Voltage range AC | 50 … 253 V AC, 50/60 Hz |
| Nominal voltage AC | 230 V AC |
| Voltage range DC | 22 … 253 V DC |
| Nominal voltage DC | 24 V DC |
| Power consumption AC / DC | 3,5 VA / 2,5 W |
| Transmission behaviour | |
| Response time | Max. 5 ms |
| Housing | |
| Dimensions (WxHxD) | 71x90x58 mm |
| Type of protection | IP 20 |
| Connection method | Detachable terminal clamp |
| Terminals, wire cross section | 2,5 mm² flex wire / 4 mm² one wire |
| Bolting torque terminals | 0,5 Nm |
| Weight | ~ 200 g |
| Manner of fastening | 35 mm DIN rail 35mm |
| Environmental conditions | |
| Ambient temperature | -10 … 60 °C |
| Storage and transport | -10 … 70 °C (no condensation) |
| EMC | |
| Product family standard | EN 61326-1 1) |
| Emitted interference | EN 55011, CISPR11 Cl. B, Gr. 1 |
| Electrical safety requirements | |
| Product family standard | EN 61010-1 |
| Overvoltage category | II |
| Pollution degree | 2 |
| Galvanic isolation, test voltages | |
| Power supply / RS485-Bus | 3 kV, 50 Hz (1 min.) |
| Power supply / relay output | 3 kV, 50 Hz (1 min.) |
| Relay output / RS485-Bus | 3 kV, 50 Hz (1 min.) |
| Protection circuits | |
| RS485-Bus | Electrical surge protection |
| Power supply | Electrical surge and reverse current protection |

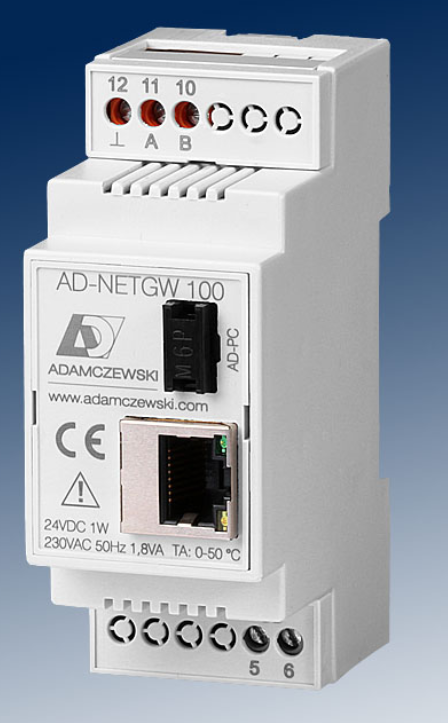

总线转换器
AD-NETGW 100 GT
产品介绍
网络接口转换器（AD-NETGW 100 GT）允许通过基于IP的网络（LAN）连接到具有串行接口的设备。为此，该设备包含一个LAN连接、一个RS485接口和一个AD-UART接口。内置的宽范围电源模块使其可以在几乎所有的供电情况下运行。
产品参数
| Ethernet-interface | |
|---|---|
| LAN | 10/100 Mbit |
| Protocol | TCP/IP |
| Addressing | IP4 |
| DHCP | Can be deactivated |
| IP standard address | 192.168.178.99 |
| Access port | 80 |
| Password protection | Configuration / webserver |
| RS485-interface | |
| Baud rate | 2400, 4800, 9600, 14400, 19200, 28800, 38400, 57600, 76800 |
| Data format | 8N1, 8E1, 8O1 |
| Max. bus users | 32 |
| Bus termination | 120 ohms both sides at the end |
| Max. length of bus | 500 m (no stubs) |
| Cable | Twisted and shielded |
| AD-UART-interface | |
| Baud rate | 2400, 4800, 9600, 14400, 19200, 28800, 38400, 57600, 76800 |
| Data format | 8N1, 8E1, 8O1 |
| Supply | |
| Voltage range AC | 50 … 253 V AC, 50/60 Hz |
| Nominal voltage AC | 230 V AC |
| Voltage range DC | 20 … 253 V DC |
| Nominal voltage DC | 24 V DC |
| Input power AC/DC | 1,8 VA / 1 W |
| Housing | |
| Dimensions (WxHxD) | 35,5 x 90 x 58 mm |
| Type of protection | IP 20 |
| Connection method | Screw clamp |
| Terminals, wire cross section | 2,5 mm² flex wire / 4 mm² one wire |
| Bolting torque terminals | 0,6 Nm |
| Skinning length | 6 mm |
| Weight | ~ 90 g |
| Manner of fastening | 35 mm DIN rail 35mm |
| Environmental conditions | |
| Ambient temperature | -10 … 50 °C |
| Storage and transport | -10 … 70 °C (no condensation) |
| EMC | |
| Product family standard | EN 61326-1 1) |
| Emitted interference | EN 55011, CISPR11 Cl. B, Gr. 1 |
| Electrical safety requirements | |
| Product family standard | EN 61010-1 |
| Overvoltage category | II |
| Pollution degree | 2 |
| Galvanic isolation, test voltages | |
| Supply line to all interfaces | 3 kV, 50 Hz (1 min.) |
| Ethernet to AD-UART/RS-485 | 1,5 kV, 50 Hz (1 min.) |
| Protection circuits | |
| Interfaces | Electrical surge protection |
| Power supply | Protection against over-temperature, over-voltage and over-current |

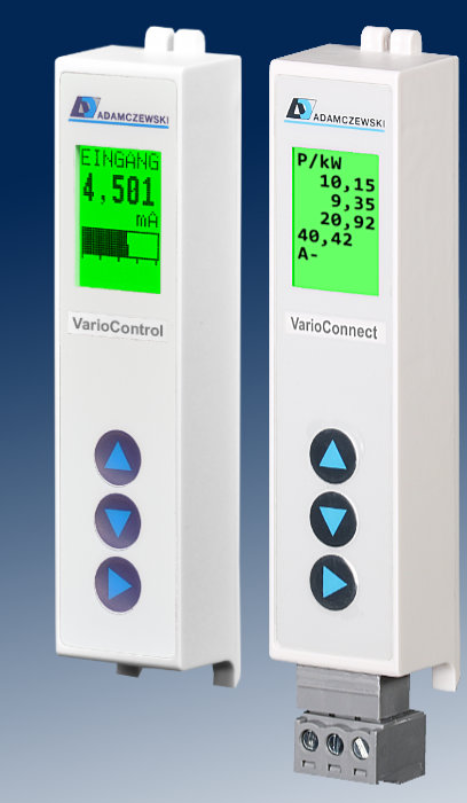

AD-VARIOCONTROL, AD-VARIOCONNECT
产品介绍
可拆卸的控制模块AD-VarioControl用于显示具有相关接口的基础设备（发射器、隔离放大器等…）的测量值。插入后（即使在基础设备运行期间也可以无限制地插入），基础设备将被自动读取，并显示相应的测量值。除了显示功能外，还可以访问基础设备的参数和控制功能。可以使用备份功能将参数设置加载到控制面板中，并在相同类型的不同基础设备上进行恢复。
建立发射器通常只需要在设备的操作周期内进行一次，因此并非每个设备都需要永久性的显示和操作元素。通过将AD-VarioControl与兼容的基础设备配合使用，可以省去每个单独设备上的操作元素和显示。这样，安装的设备就是防篡改的，并且更具成本效益。
AD-VarioConnect具有通过RS485的Modbus-RTU协议的现场总线接口。通过这个接口，可以获取基本单元的所有测量值。
产品参数
