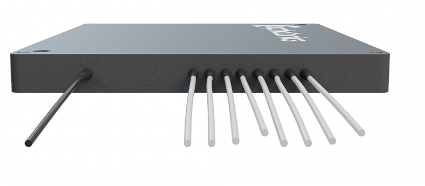

100GHz密集波分复用器

密集波分复用(DWDM)需要通过同一根光纤以多个紧密间隔的波长传输信号。ACP提供信道间隔为200ghz、100ghz或50GHz的dwdm;分别对应约1.6nm, 0.8nm, 0.4nm。

ACP的100 GHz密集波分复用器(DWDM)利用薄膜涂层技术和专有的非通量金属键合微光学封装设计，实现了国际电联波长的光增益和下降。它提供ITU通道中心波长、低插入损耗、高通道隔离、宽通带、低温灵敏度和无环氧树脂光路。它可用于电信网络系统中的波长加/减。

所有AC Photonics的产品都经过Telcordia认证测试。

特性

100GHz ITU信道间隔
低插入损耗
宽通带
高通道隔离
高稳定性和可靠性
无环氧光路

应用程序

通道添加/删除
DWDM网络
波长路由
光纤放大器
有线电视光纤系统

产品规格

Parameter	Unit	Specifications
		Mux/Demux
Channel Wavelength	GHz Grid	ITU 100
Minimum Channel Spacing	GHz	100
Center Wavelength Accuracy	nm	± 0.05
Channel Passband (@-0.5dB bandwidth)	nm	≥ 0.22
1310nm Express Channel Wavelength	nm	1260 to 1360
UPG Channel Wavelength	nm	1528 to 1563 (except drop channels)
Max. Insertion Loss (COM to Ch. and COM to UPG)	dB	Option: U0¹⁾ 4ch: 1.8 8ch: 3.2 16ch: 4.2 32ch: 5.4 40ch: 6.0	Option: U1²⁾ 4ch: 1.9 8ch: 3.3 16ch: 4.3 32ch: 5.5 40ch: 6.1	Option: U2/U4³⁾ 4ch: 2.1 8ch: 3.5 16ch: 4.5 32ch: 5.7 40ch: 6.2	Option: U3/U5⁴⁾ 4ch: 2.2 8ch: 3.6 16ch: 4.6 32ch: 5.8 40ch: 6.4
1% TAP Port Loss	dB	20.4
1310nm Express Port Loss	dB	≤1.4
Channel Uniformity	dB	4ch: ≤0.6 8ch: ≤1.0 16ch: ≤1.5 32ch: ≤2.0 40ch: ≤2.2
Channel Ripple	dB	≤ 0.3
Channel Isolation (Demux only)	dB	≥ 25 (Adjacent) ≥ 35(Non-adjacent)
Insertion Loss Temperature Sensitivity	dB/°C	4/8ch: ≤ 0.005 16/32/40ch: ≤ 0.01
Wavelength Temperature Shifting	nm/°C	≤ 0.002
Polarization Dependent Loss	dB	4/8ch: ≤ 0.10 16/32/40ch: ≤ 0.15
Polarization Mode Dispersion	ps	≤ 0.1
Directivity	dB	≥ 50
Return Loss	dB	≥ 45
Optical Power	mW	≤ 300
Operating Temperature	°C	0 to +70 (Extended temperatures are also available upon request)
Storage Temperature	°C	– 40 to +85
Package Dimensions (LxWxH)	mm	S= 89x51x8.0 case (4 Ch) F= 96x78x8 case (4/8 Ch) G=96x78x13 case (16 Ch) H=96x78x16 case (32/40/48 Ch) L1=Single LGX Box (4/8 Ch, Maximum 16 Ch with LC) L2=Double LGX Box R1=19” Rack (1RU)

注意：

1) U0: UPG (Upgrade) port
2) U1: 1% Tap + UPG port
3) U2: 1310nm port U4: 1310nm + UPG port
4) U3: 1310nm + 1% Tap port U5: 1310nm + UPG +1% Tap port

All values refenced are without connector.
