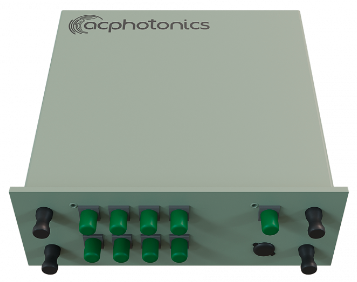

单模Tree & Star耦合器(4 ~ 32 Ch)

特性

低超额损失
均匀功率分割
坚固的包装
优异的环境和机械稳定性

应用程序

长途电信
数字，混合和am -视频系统
有线电视系统
高速局域网
光纤传感器

产品规格

Parameter	Unit	Specifications
Operating wavelength	nm	1310±10, 1550±10, 1585±10, or Custom Wavelength
Port Configurations		1×4/4×4	1×8/8×8	1×16/16×16	1×32/32×32
Insertion Loss	dB	≤ 6.8	≤ 10.2	≤ 13.6	≤ 17.5
Uniformity	dB	≤ 0.70	≤ 1.0	≤ 1.2	≤ 1.4
Polarization dependent loss	dB	≤ 0.15	≤ 0.20	≤ 0.25	≤ 0.30

Operating Wavelength	nm	1310±40, 1550±40, 1585±40, or Custom Wavelength
Port Configurations		1×4/4×4	1×8/8×8	1×16/16×16	1×32/32×32
Insertion Loss	dB	≤ 6.8	≤ 10.2	≤ 13.6	≤ 17.5
Uniformity	dB	≤ 0.80	≤ 1.2	≤ 1.6	≤ 2.0
Polarization Dependent loss	dB	≤ 0.15	≤ 0.20	≤ 0.25	≤ 0.30

Operating Wavelength	nm	1310/1550±40, 1310/1585±40 (* 1310/1550±20, 1310/1585±20), or Custom Wavelength
Port Configurations		1×4/4×4	1×8/8×8	1×16/16×16	1×32/32×32
Insertion Loss	dB	≤ 7.6(7.2)*	≤ 11.5(10.8)*	≤ 15.5(14.5)*	≤ 19.5(18.5)*
Uniformity	dB	≤ 1.6(1.4)	≤ 2.5(2.1)	≤ 3.4 (2.8)	≤ 4.1(3.5)
Polarization Dependent loss	dB	≤ 0.15	≤ 0.20	≤ 0.30	≤ 0.50
Directivity	dB	≥ 55
Optical Power	mW	≤ 500
Operating Temperature	°C	– 20 to +75 ( – 40 to +85 Available )
Storage Temperature	°C	– 40 to +85
Package Type		S and D	S and D	E	E
Package Dimensions (LxWxH)	mm	S= 89x51x9.2 case D= 120x80x11.6 case E= 142x102x14.5 case

Note

*This specification is only 1xN Coupler.

All values refenced are without connector.
