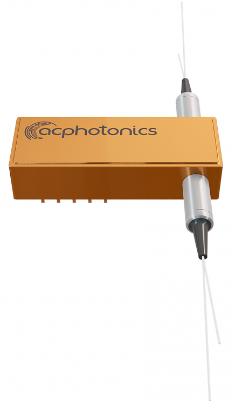

2×2多模旁路机械光纤开关
ACP的MMS系列开关通过将输入的光信号重定向到选定的输出光纤来连接光通道。这是使用正在申请专利的光机械专有配置实现的，并通过电气控制信号激活。Switch提供超高的可靠性和快速的交换速度以及双向性能。MS光纤开关是光网络应用的真正交换解决方案。
特性
低成本
低插入损耗
高通道隔离
高度稳定可靠
无环氧光路
闭锁或非闭锁
应用程序
光网络保护/恢复
光信号路由
可配置光的添加/删除
发射机和接收机保护
网络测试系统
仪表
产品规格
| Parameter | Unit | Specifications | |||
|---|---|---|---|---|---|
| Operating Windows | Single | Dual | |||
| Operating Wavelength | nm | 850 ± 40 or 1310 ± 40 | 850/1310 ± 30 | ||
| Grade | P | A | P | A | |
| Insertion Loss | dB | ≤ 1.0 | ≤ 1.2 | ≤ 1.2 | ≤ 1.4 |
| Wavelength Dependent Loss | dB | ≤ 0.25 | ≤ 0.30 | ||
| Temperature Dependent Loss (TDL) | dB | ≤ 0.25 | |||
| Channel Cross Talk | dB | ≥ 35 | |||
| Return Loss | dB | ≥ 30 | |||
| Repeatability | dB | ± 0.02 | |||
| Switching Speed | ms | Typ.: 4 Max.: ≤10 | |||
| Operating Voltage | V | 5 | |||
| Durability (Cycles) | Million | 10 | |||
| Optical Power | mW | ≤ 500 | |||
| Operating Temperature | °C | 0 to +70 | |||
| Storage Temperature | °C | – 40 to +85 | |||
| Package Dimensions | mm | V=L32.76 x W12.6 x H11.0 | |||
All values referenced are without connector.
