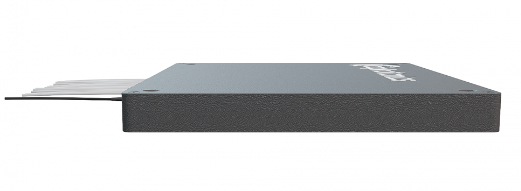

100GHz AAWG
ACP的非热AWG (AAWG)产品采用硅对硅平面技术，具有高性能和高可靠性，可用于一般的DWDM系统。基于非热设计和包装，它是完全无源产品，不需要任何电力或温度控制。对于100G AAWG Mux/Demux，它支持基于高斯或Flattop配置文件的单芯片组高达48ch。
所有AC Photonics的产品都经过Telcordia认证测试。
特性
低插入损耗
宽通带
高通道隔离
MUX和DEMUX配置
平顶或高斯轮廓
高稳定性和可靠性
应用程序
DWDM网络
电信
访问网络
产品规格
| Parameter | Unit | Specifications | |
|---|---|---|---|
| Gaussian | Flat-Top | ||
| Number of Channel | 16, 32, 40 and 48 | ||
| Operating Wavelength | nm | 1528.773 – 1566.314 (14~ 61 ITU grid) | |
| Channel Spacing | GHz | 100 | |
| Wavelength Stability | nm | ± 0.05 | |
| Channel Passband | nm | ± 0.10 | |
| Channel Passband | nm | ≥ 0.20(@ -1dB Bandwidth) ≥ 0.40(@ -3dB Bandwidth) | ≥ 0.40(@ -1dB Bandwidth) ≥ 0.60(@ -3dB Bandwidth) |
| Insertion loss | dB | ≤ 4.0 | ≤ 5.5 |
| Isolation | dB | ≥ 25 (Adjacent Channel) ≥ 29 (Non-Adjacent Channel) | |
| Channel Uniformity | dB | ≤ 1.5 | |
| Wavelength Temperature Shifting | nm/°C | ≤ 0.002 | |
| Polarization Dependent Loss | dB | ≤ 0.50 | |
| Polarization Mode Dispersion | ps | ≤ 0.50 | |
| Directivity | dB | 40 | |
| Return Loss | dB | 40 | |
| Optical Power | mW | ≤ 200 | |
| Operating Temperature | °C | – 5 to +65 | |
| Storage Temperature | °C | – 40 to +85 | |
| Package Dimensions (LxWxH) | mm | H=96x78x16 case L2=Double LGX Box R1=19” Rack (1RU) | |
All values referenced are without connector.
