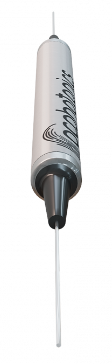

增益平坦滤波器-隔离器混合
ACP的用于EDFA的GFFI是增益平坦滤波器和1550隔离器的组合。GFFI提供edfa频谱增益曲线的在线补偿，具有高隔离度、低PDL和低PMD等优异性能。
特性
宽工作波长范围
低插入损耗
高的隔离
平坦谱增益
高稳定性和可靠性
无环氧光路
应用程序
光纤放大器
产品规格
| Parameter | Unit | Specifications | |
|---|---|---|---|
| Stage | Single | Dual | |
| Operating Wavelength (C-Band) | nm | 1528 – 1565 or custom | |
| Operating Wavelength (L-Band) | nm | 1570 – 1610 or custom | |
| Insertion Loss | dB | ≤ 1.0 | ≤ 1.1 |
| Modulation Depth | dB | 1 – 3 | 3.1 -6 |
| Peak to Peak Error Function | dB | ≤ 0.50 | ≤ 0.80 |
| Isolation | dB | ≥ 28 | ≥ 45 |
| Polarization Dependent Loss | dB | ≤ 0.10 | |
| Return Loss | dB | ≥ 50 | |
| Optical Power | mW | ≤ 500 | |
| Operating Temperature | °C | 0 to +70 | |
| Storage Temperature | °C | – 40 to +85 | |
| Package Dimensions | mm | A=standard, Ø 5.5 x L34 for bare fiber Ø 5.5 x L38 for 900um fiber M=Compact, Ø4.8XL30 (250um bare fiber) | |
All values referenced are without connector.
