Mcallister真空样品台BLT106

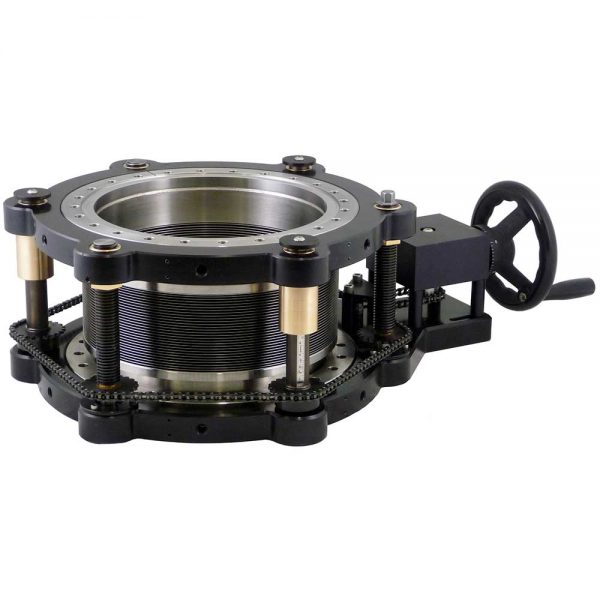

Mcallister真空样品台BLT106 10″ (CF200) Z Translator Inch and Metric Scale Available Dimensions are in inches (mm)

Product Description

All BLT106s use double ball bearings on the jacking screws. The screws and bearings are lubricated with high temperature grease for low friction and long life. All parts are field replaceable. The traveling flange is supported by three jacking screws and aligned by three guide rods (see drawing). All translators are also available with long strokes, motor drives, linear encoders, tapped flanges and special heights.

Model BLT106 Translator Dimensions
Clear ID  7.80″ (198)
Model Stroke OAL Compressed
BLT106-2 2″ (50) 4.40″ (112)
BLT106-3 3″ (75) 4.80″ (122)
BLT106-4 4″ (101) 5.20″ (132)
BLT106-6 6″ (151) 6.00″ (152)
BLT106-8 8″ (203) 6.80″ (173)
BLT106-10 10″ (250) 7.60″ (193)
BLT106-12 12″ (300) 8.40″ (213)
