Hydramotion Ltd XL7-950-IEC1-d24-TT-M4.0-928 XL7-E-IEC1.M4-928 高压常温在线粘度计

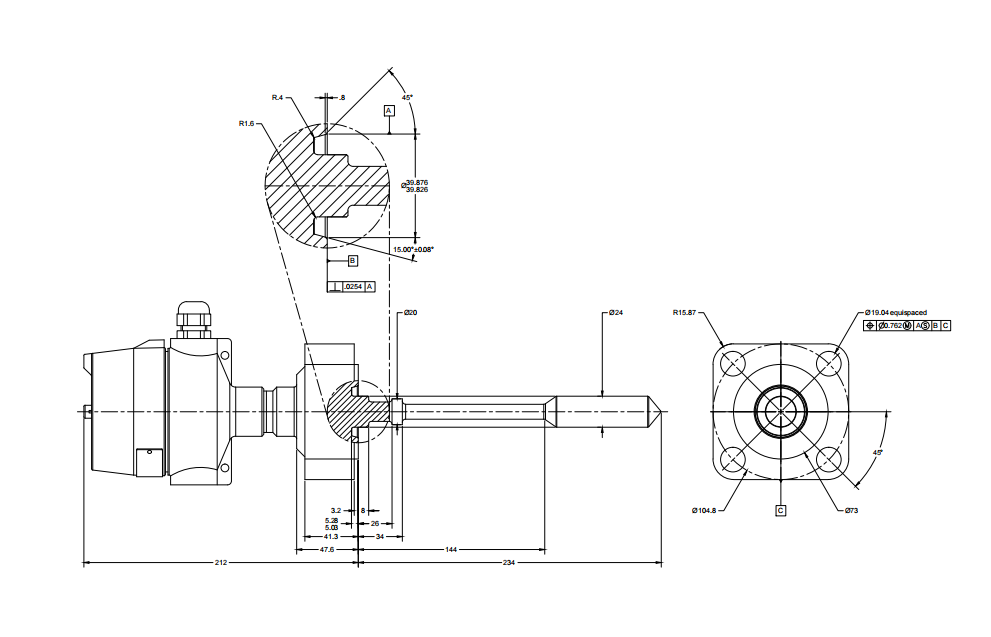

Model: XL7-950-IEC1-d24-TT-M4.0-928-0: Flange for

Grayloc-style seal ring S-1375 (Flowserve Drwg. Ref:

DWG046820)

XL7 Series Intrinsically Safe Process Viscometer

Safety Certification for Explosive Atmospheres:

IEC Cert. No.: IECEx SIR 08.0028X

ATEX Cert No.: Sira 08ATEX2085X

Equipment Marking: II 1G Ex ia IIC T1…T6 Ga

T Class Max Temperature (°C)

T1 435 (Ta = -40°C to +80°C)

T2 285 (Ta = -40°C to +80°C)

T3 185 (Ta = -40°C to +80°C)

T4 120 (Ta = -40°C to +80°C)

T5 85 (Ta = -40°C to +70°C)

T6 70 (Ta = -40°C to +55°C)

Maximum process temperature is increased by 15°C in model

without a PRT. Refer to model specification for definitive limits.

This equipment contains intrinsically safe circuits and must be

connected through a safety barrier.

Integral RTD temperature measurement

Non-wetted main external parts: SS316

Sensor diameter 'd' in product code in mm e.g. d24 = 24mm

Process fitting as specified in product code suffix

Wetted parts material: SS316

Wetted parts finish: Std 0.8 micron AA Grade N6

Instrument DESIGN PRESSURE: 220 bar at ambient

temperature

Hydrostatically pressure tested to 150% of Rated Pressure

unless otherwise specified
