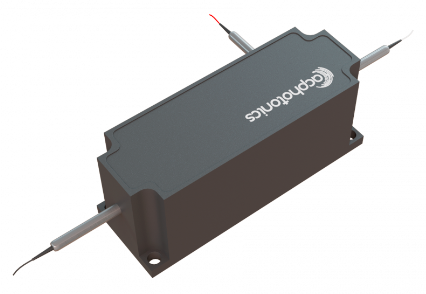

美国AC Photonics Inc. 光环行器 保偏光环行器 保偏光环行器(830-1060nm)
保偏光环行器(830-1060nm)
特性 高的隔离 低插入损耗 低PDL 高稳定性、高可靠性 成本效益 应用程序 光纤放大器 泵浦激光源 光导纤维传感器 测试与测量 仪表 产品规格Parameter | Unit | Specifications |
---|---|---|
Operating Wavelength | nm | 830, 850, 980, 1030 or 1060 |
Bandwidth | nm | ± 10 |
Grade | P | |
Peak Isolation (Typ.) | dB | 25 |
Isolation (Min.) | dB | ≥ 20 |
Insertion loss | dB | Typ.: 1.3 Max.: ≤ 1.8 |
Extinction Ratio* | dB | Typ.: 25 Max.: ≥ 20 |
Channel Crosstalk | dB | Typ.: 50 Max.: ≥ 45 |
Return Loss | dB | ≥ 50 |
Optical Power | mW | ≤ 400 |
Operating Temperature | °C | 0 to +65 |
Storage Temperature | °C | - 40 to +85 |
Package Dimensions (LxWxH) | mm | A= 60x32x29 |
Note: * Extinction Ratio is guaranteed from 10 ~ 50°C. 1. The PM fiber and the connector key are aligned to the slow axis. 2. ER value applies to fiber ≤ 0.75m. Increased fiber length will decrease ER. 3. For each connector, IL will be 0.3dB higher, RL 5dB lower, and ER 2dB lower. All values referenced are without connector.
