PAMAS GmbH PAMAS-S40 System 便携式颗粒计数器 PM10004020

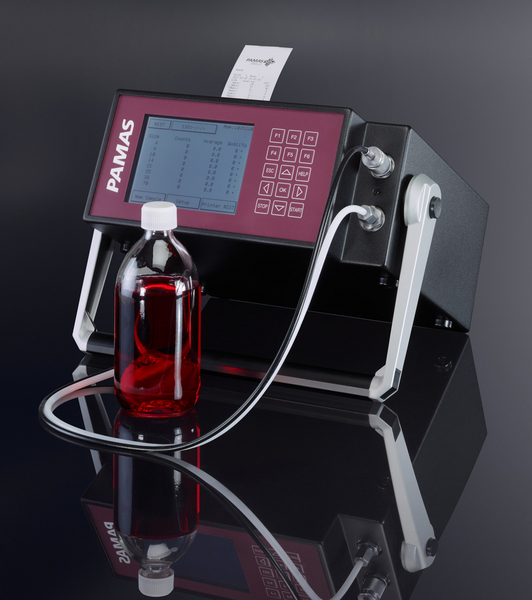

PAMAS-S40 System
Portable microprocessor controlled 8 channel particle counter for contamination control in liquids.
便携式微处理器控制的8通道颗粒计数器
用于油液的污染控制
Exclusively digital analysis.
数字分析
20 column built-in thermoprinter.
20列内置热敏打印机
Battery buffered RAM.
电池缓冲型RAM
Automatic storage of analysis setup.
自动存储分析设置
Adjustable measuring parameters.
可调测量参数
8 free adjustable size channels:
8个分析通道，颗粒尺寸可调
(2,5,10,15,20,25,50 and 100 µm according to ISO-4402)
or 或者
(4,6,10,14,21,30,38 and 70 µm according to ISO-11171)

Including PAMAS HCB-LD-50/50 sensor:
仪器包含HCB-LD-50/50传感器
Dyn. size range: 1 - 100 µm
(calibration according to ISO-4402 µm)
动态颗粒尺寸范围:1-100微米,根据ISO-4402标定
Dyn. size range: 4 - 70 µm
(calibration according ISO-11171 NIST)
动态颗粒尺寸范围:4 -70微米,根据ISO-11171 NIST标定

Sensor orifice: 500×500um传感器接口：500X500

max. concentration: 24000p/ml
最大颗粒含量：24000p/ml

Flow rate : 25ml/min
流量：25ml/min
Built-in piston pump for automatic sampling:
内置式活塞泵自动采样
-1 sample inlet pressureless to 5 bar
内置式活塞泵提供无压至5巴压力
-1 sample inlet: 5 --420 bar
提供5巴至420压力
