Allen Avionics LPS系列高性能低通滤波器

Allen Avionics LPS系列高性能低通滤波器 Allen Avionics LPS系列高性能低通滤波器主要使用切比雪夫和椭圆算法设计和制造低通滤波器。我们的LPS系列是高性能滤波器，旨在以小于1.0 dB的衰减通过基频，并衰减95 dB以上的所有谐波。它们采用适合大多数精密信号调理高性能测试应用的规格和技术设计。在典型应用中，它们用于增强所有测试发生器和信号源的性能，用于测试模数、数模转换器、放大器和其他电子元件。它们提高了所有频谱分析仪对谐波失真和互调测量的选择性和动态范围。这些滤波器装在屏蔽金属外壳中，以提供对无用信号的最佳隔离。

这些过滤器的关键参数是:

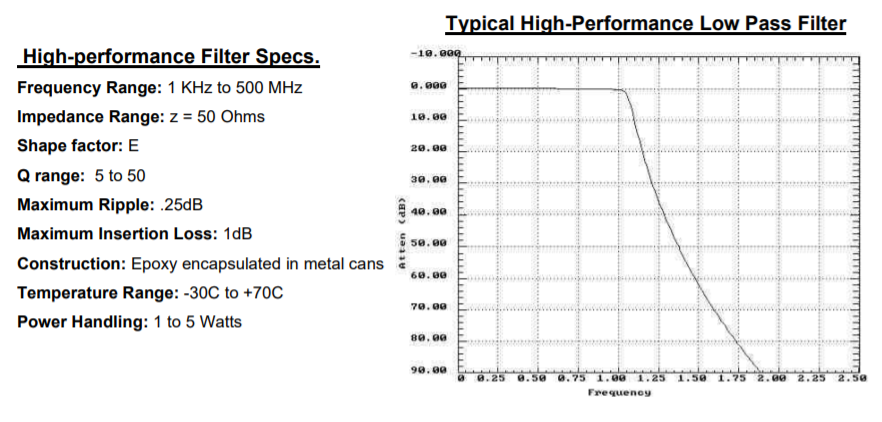

频率范围:1千赫至500兆赫阻抗:50欧姆最大插入损耗:1 dB 最大纹波:0.25 dB

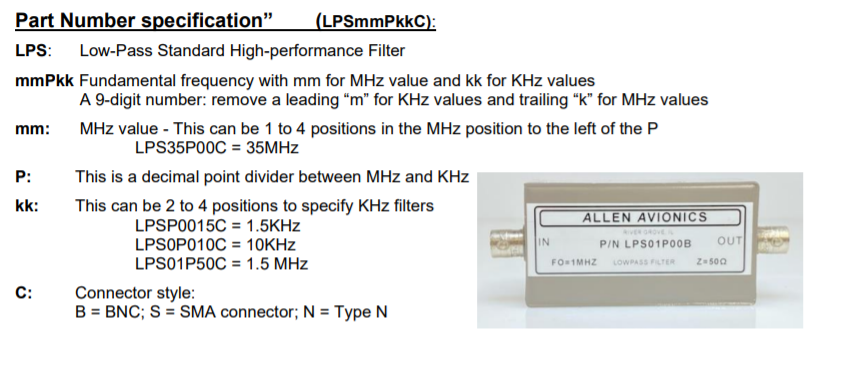

Allen Avionics LPS0P001B 1 KHZ 50 Ohms Allen Avionics LPSP0015B 1.5 KHZ 50 Ohms Allen Avionics LPS0P002B 2 KHZ 50 Ohms Allen Avionics LPSP0024B 2.4 KHZ 50 Ohms Allen Avionics LPS0P003B 3 KHZ 50 Ohms Allen Avionics LPSP0036B 3.6 KHZ 50 Ohms Allen Avionics LPSP0048B 4.8 KHZ 50 Ohms Allen Avionics LPS0P005B 5 KHZ 50 Ohms Allen Avionics LPS00P01B 10 KHZ 50 Ohms Allen Avionics LPS00P02B 20 KHZ 50 Ohms Allen Avionics LPS0P025B 25 KHZ 50 Ohms Allen Avionics LPS00P10B 100 KHZ 50 Ohms Allen Avionics LPS0P165B 165 KHZ 50 Ohms Allen Avionics LPS00P20B 200 KHZ 50 Ohms Allen Avionics LPS0P330B 330 KHZ 50 Ohms Allen Avionics LPS00P50B 500 KHZ 50 Ohms Allen Avionics LPS00P60B 600 KHZ 50 Ohms Allen Avionics LPS01P00B 1 MHZ 50 Ohms Allen Avionics LPS01P50B 1.5 MHZ 50 Ohms Allen Avionics LPS02P00B 2.0 MHZ 50 Ohms Allen Avionics LPS02P50B 2.5 MHZ 50 Ohms Allen Avionics LPS03P00B 3.0 MHZ 50 Ohms Allen Avionics LPS05P00B 5.0 MHZ 50 Ohms Allen Avionics LPS10P00B 10.0 MHZ 50 Ohms Allen Avionics LPS12P00B 12.0 MHZ 50 Ohms Allen Avionics LPS15P00B 15.0 MHZ 50 Ohms Allen Avionics LPS20P00B 20.0 MHZ 50 Ohms Allen Avionics LPS30P00B 30.0 MHZ 50 Ohms Allen Avionics LPS50P00B 50.0 MHZ 50 Ohms Allen Avionics LPS70P00B 70.0 MHZ 50 Ohms Allen Avionics LPS100P0B 100.0 MHZ 50 Ohms Allen Avionics LPS200P0B 200.0 MHZ 50 Ohms Allen Avionics LPS250P0B 250.0 MHZ 50 Ohms Allen Avionics LPS500P0B 500.0 MHZ 50 Ohms Allen Avionics LPS1000PB 1,000 MHZ 50 Ohms
