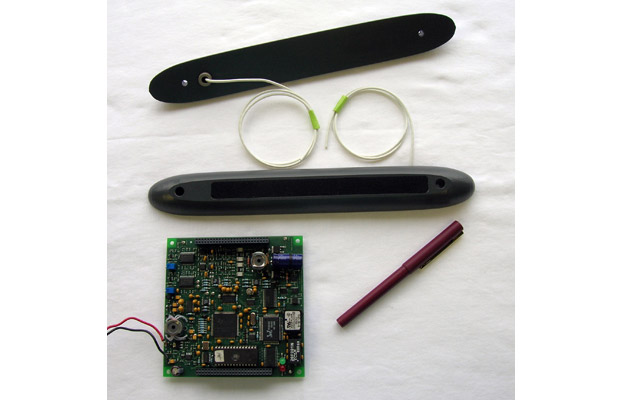

Imagenex Technology Corp. Ethernet Side Scan Kit 侧扫声纳 896-000-150
(260, 330 & 800 kHz)
c/w Faired Transducers & Rectangular PCB
Sonar/PC Software
*Option for square PCB if requested
Interface：Ethernet
Frequency：260 kHz / 330 kHz / 800 kHz nominal
Transducer Beam Width：
260 kHz: 2.2° x 75°； 330 kHz: 1.8° x 60°；800 kHz: 0.7° x 30°
Range Resolution：Range scale ÷ 1000
Power Supply：Nominal 24 VDC (22 VDC – 33 VDC) at less than 2.5 Watts
Electronics Dimensions：
Standard PCB 120.65 mm (4.75”) x 120.65 mm (4.75”)；111.76 mm (4.4”) between mounting holes
Electronics Dimensions
Narrow PCB 88.9 mm (3.5”) x 165.1 mm (6. 5”)；81.28 mm (3.2”), 157.48 mm (6.2”) between mounting holes
Weight in Air：Transducers: 385 g (0.8 lbs) each； Electronics: 121 g (0.3 lbs)
