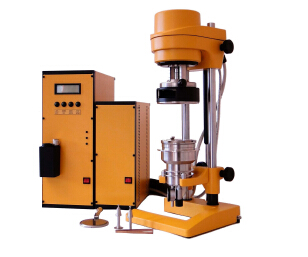

RHEOTEST Medingen GmbH DSR Bitumen Rheometer measuring place RHEOTEST® RN 5.3 RHEOTEST® RN 5.3沥青流变仪 3025.0.10000
.jpg)
speed range: 0,1 ... 2000 rpm
speed resolution: 0.015 rpm
temperature range: -10 ... +150°C
angle range: -50 ... 300°
angle resolution: 0,001°
frequency range: 0,001 ... 100Hz
torque: 0,1 ... 150 mNm
torque resolution: 0.002 mNm
normal force range 0 … 20 N
supply voltage: 230 V AC ±10 %; 49 ... 61 Hz
supply voltage: 110 V AC ±10 %; 49 ... 61 Hz
configuration:
1) basic instrument Rheometer RHEOTEST ® RN 5.1 including:
measuring head, stand, control unit
2) plate-plate-measuring system, peltier temperated consists of:
peltier control unit RHEOTEST ® PP 4.1, double side temperated measuring system,
automated gap justage, basic plate support, adapter, 2 exchangeable plates (ø25 mm + ø8 mm),
exchange grip, measuring plate P3 (ø 25mm), measuring plate P4 (ø 8mm)
3) software RHEOTEST ® RN 5 Manager for Bitumen tests acc. DIN EN 14770, ASTM D7175-08,
ASTM D 4402 / D4402 M, ASTM D7405-10a, AASHTO T350-14, AASHTO M332-14, AASHTO T315-12,
AASHTO TP 70, AASHTO M320-10
for test execution of
• CR-Tests (shear rate tests e.g. to realise viscosity test according to ASTM D 4402 / D 4402M),
• CS-Tests (shear stress tests e.g. to realise Creep Recovery tests, MSCR-Tests acc. to ASTM D7405-10a,
AASHTO TP70, AASHTO T 350-14 and AASHTO M332-14) and
• Oscillation tests (e.g. to determine complex shear modulus and phase angle acc. to ASTM D7175-08,
AASHTO T315-12, AASHTO M320-10 and DIN EN 14770),
as well as display and analysis of measuring data
4) 1 set of trimming tools, 1 set of rubber moulds, 20 ml calibration liquid NF 5 000 000
speed range: 0,1 ... 2000 rpm
speed resolution: 0.015 rpm
temperature range: -10 ... +150°C
angle range: -50 ... 300°
angle resolution: 0,001°
frequency range: 0,001 ... 100Hz
torque: 0,1 ... 150 mNm
torque resolution: 0.002 mNm
normal force range 0 … 20 N
supply voltage: 230 V AC ±10 %; 49 ... 61 Hz
supply voltage: 110 V AC ±10 %; 49 ... 61 Hz
configuration:
1) basic instrument Rheometer RHEOTEST ® RN 5.1 including:
measuring head, stand, control unit
2) plate-plate-measuring system, peltier temperated consists of:
peltier control unit RHEOTEST ® PP 4.1, double side temperated measuring system,
automated gap justage, basic plate support, adapter, 2 exchangeable plates (ø25 mm + ø8 mm),
exchange grip, measuring plate P3 (ø 25mm), measuring plate P4 (ø 8mm)
3) software RHEOTEST ® RN 5 Manager for Bitumen tests acc. DIN EN 14770, ASTM D7175-08,
ASTM D 4402 / D4402 M, ASTM D7405-10a, AASHTO T350-14, AASHTO M332-14, AASHTO T315-12,
AASHTO TP 70, AASHTO M320-10
for test execution of
• CR-Tests (shear rate tests e.g. to realise viscosity test according to ASTM D 4402 / D 4402M),
• CS-Tests (shear stress tests e.g. to realise Creep Recovery tests, MSCR-Tests acc. to ASTM D7405-10a,
AASHTO TP70, AASHTO T 350-14 and AASHTO M332-14) and
• Oscillation tests (e.g. to determine complex shear modulus and phase angle acc. to ASTM D7175-08,
AASHTO T315-12, AASHTO M320-10 and DIN EN 14770),
as well as display and analysis of measuring data
4) 1 set of trimming tools, 1 set of rubber moulds, 20 ml calibration liquid NF 5 000 000
