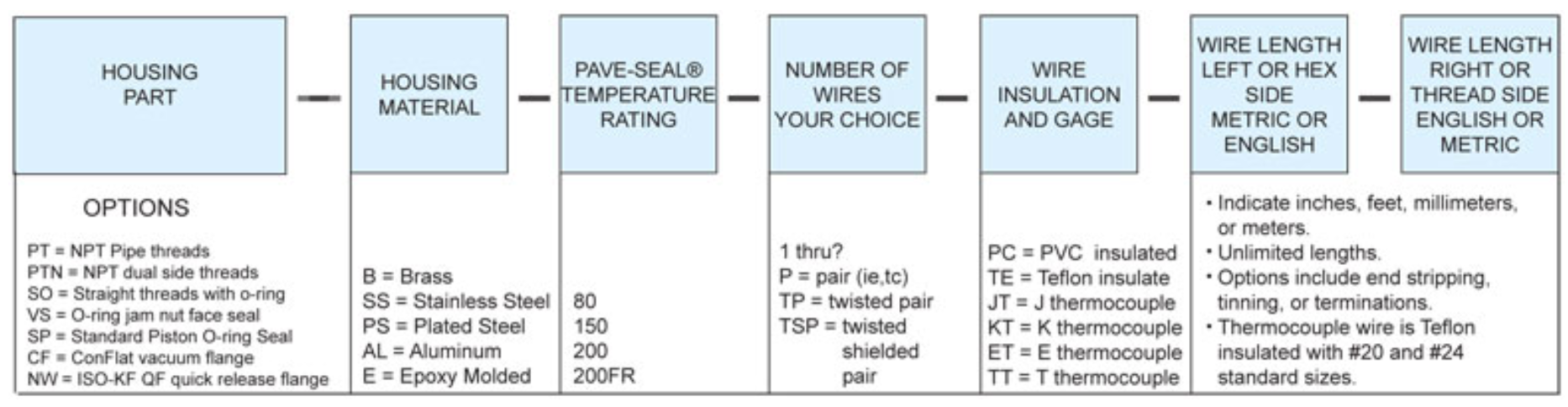

| 安装类型 | 密封 | 总线数 | PAVE 描述代码, 外壳 & 线缆 | Wires 1 | 单模或者多模 | 2nd Type Wire Combo | AWG # or Fiber Mode | 图纸号码 # |
|---|---|---|---|---|---|---|---|---|
| ½” o-ring face seal | Dual sided connector | 1 | VS8-SS-150-1-62/125u-ST-ST See Quick Ship List | 1 | Multimode | 1271 | ||
| 6.20mm piston o-ring | fiber cable | 1 | SP4S-E-150-1-SMF28ULTRA-39FC/APC-35 | 1 | single | 5123 | ||
| ½” o-ring face seal | Dual sided connector | 1 | VS8-SS-150-62.5/125u-SMA-SMA906 | 1 | Multimode | 1563 | ||
| 1/4″ mNPT | cable hermetic seal | 1 | PT4XL-SS-150-1-FG910UEC-6-42 | 1 | Multimode | 5747 | ||
| 3/8″ mNPT | cable seal | 1 | PT6-SS-150-1-SMF28E-118FC/UPC-39FC/UPC | SMF28e | single | 5227 | ||
| ½” NPT | cable | 1 | PT8-SS-150-1-FO-25T-10T 2.5k PSI FC/PC | 4956 | ||||
| ½” NPT | Dual sided connector | 1 | PT8-SS-150-1-MMFO-SMA905-SMA905 550 micron fiber | 1 | multi mode | 5668 | ||
| ½” NPT | FC/PC connector | 1 | PT8-SS-150-1-MMFO-FC/PC-FC/PC | 1 | multi mode | 5667 | ||
| ½” o-ring face seal | Dual sided connector | 1 | VS8N-SS-150-1-SMFO-QD-QD FO NIPPLE ADAPTER | 1 | single mode | 600 bar pressures | 2567 | |
| Single mode patch cord | 1 | multimode patch cord for 2567 | 1 | SMFO | 2843 | |||
| ½” o-ring face seal | Dual sided connector | 1 | VS8N-SS-150-1-MMFO-SNAPLOCK | 1 | Multimode | 600 bar pressures | 2567-1 | |
| Single mode patch cord | 1 | multimode patch cord for 2567-1 | 1 | mmfo | 2843-1 | |||
| 6.27mm piston o-ring | cable seal | 1 | SP4-E-150-1-SMF-SC-12 | 1 | single mode | 3234 | ||
| 0.307″ piston o-ring seal | cable seal | 1 | SP4.9-E-150-1-SMFO-6.5-39 single mode | 1 | Multimode | 2176 | ||
| ⅜” piston o-ring | cable seal | 1 | SP6-E-150-1-SMFO-3-36 | 1 | Single mode | 2139 | ||
| ⅜” piston o-ring | cable seal | 1 | SP6-E-80-1-FOMM-2M-2M | 1 | Multimode | 2121 | ||
| ½” piston o-ring | ST Connector | 1 | SP8M-E-150-1-STFO-12LC, 1500 psi | 1 | multi-mode | 3740 | ||
| ½” piston o-ring | cable seal | 1 | SP8/128-E-200-1/1-HV18-FO-36-36 | 1 | single mode | 1 | 4kV #18 | 1319 |
| ½” piston o-ring | cable seal | 1 | SP8H-E-200-1-MMF-39-19 | 1 | Multimode | 2851 | ||
| ½” piston o-ring seal | cable seal | 1 | SP8L-E-150-1-SMFO-2000-2000mm | 1 | SMF28e | 5339 | ||
| ½” piston o-ring | cable seal | 1 | SP8L-150-1-FO-150cm-150cm | 1 | FIBER | 2712 | ||
| 1/2″2- UNF-2A | Connector | 1 | SO8-SS-150-1-SMFO-ST-SNAPLOCK 3k psi | 1 | single mode | 4961 | ||
| ½”-20 SAE | cable seal | 1 | SO8M-SS-150-1-200/220umMMFO-589-.04 | 1 | MM | 4485 | ||
| ½” SAE | cable seal | 8 | SO8M-SS-150-2/6-MMFO/E24-24/24 | 2 | Multimode | 6 | 24 | 3300 |
| 1¼” o-ring face seal | cable seal | 1 | VS18-SS-150-1-FO-96-48 1000/1035um | 1 | multimode | 4335 | ||
| 1¼” o-ring face seal | cable seal | 1 | VS18-SS-150-1-FO-1050mm-450mm | 1 | fiber optic | 2430 | ||
| 1/2″ o-ring face seal | connector | 1 | VS8L-SS-150-1-SMFO-SNAPLOCK Delphi | 1 | Single | 5086 | ||
| ½” o-ring face seal | Cable Seal | 1 | VS8-SS-150-1-SMF28E-43-43 | SMF28e with Teflon tubing | Single | 5666 | ||
| ½” o-ring face seal | Cable Seal | 1 | VS8-SS-150-1-SMF28-35AVIM-35AVIM | 1 | Single | 4221 | ||
| ½” o-ring face seal | connector | 1 | VS8-SS-150-1-RH62.5/125um-ST-ST | Multimode | 5439 | |||
| ½” o-ring face seal | Dual sided connector | 1 | VS8-SS-150-1-100/140u-SMA-SMA 906 | 1 | Multimode | 1514 | ||
| ½” o-ring face seal | Dual sided connector | 1 | VS8-SS-150-1-100/140u-ST-ST | 1 | Multimode | 2027 | ||
| ½” o-ring face seal | Dual sided connector | 1 | VS8-SS-150-1-1000/1250u-SMA-SMA905 | 1 | Multimode | 2026 | ||
| ½” o-ring face seal | 1 | VS8-SS-150-1-1000u(LOW OH)-SMA | 1 | Multimode | 3126 | |||
| ½” o-ring face seal | Dual sided connector | 1 | VS8-SS-150-1-600-SMA-SMA | 1 | 600u | 3328 | ||
| ½” o-ring seal | sma | 1 | VS8-SS-150-3mm-SMA-SMA906 glass window | 1 | glass | 5461 | ||
| 1/8″ mNPT | cable | 2 | PT2-SS-150-2-1000umFO-35-35 urethane | 3 | Multimode | 5700 | ||
| ⅜” piston o-ring seal | cable | 2 | SP6-E-200-2-SMF28E-1M-1M | 2 | single | 5055 | ||
| ⅜” piston o-ring seal | cable | 2 | SP6-E-150-2-SMF28E-1M-1M | 2 | SMF28e | 4508 | ||
| 1/2″ piston o-ring seal | 2 plus electrical wires | SP8M-E-150-2TP/2TP/2-CAT6/TZ26/MMFO-90-11 | CAT6 + 26 | multimode | 26 | 5074 | ||
| 17.37mm piston o-rings | cable seal | 2 | SP11M-E-150-2TPT/4TP/2-CAT6/TZ26/SMFO-190-12 | CAT ^ | Single mode | 12 | 5033 | |
| NW25 Flange | cable seal | 2 | NW25-SS-150-3-FO-82-36 | 1 | Single mode | 2750 | ||
| ½” o-ring face seal | cable seal | 2 | VS8-SS-80-2-FO(BLUE)-1-1M | 2 | single mode | 2127 | ||
| ½” o-ring face seal | cable seal | 2 | VS8-SS-80-2-FO(CLEAR)-1-1M | 2 | Single mode | 2126 | ||
| ¾”o-ring face seal | cable seal | 2 | VS12L-SS-150-1-DUPLEXFO-40mLC-4mLC | 2 | multi mode | 3767 | ||
| ¾” piston o-ring seal | cable seal | 2 | SPF12-E-150-2-980/1000umMMFO-8.6-12 | 2 | Multimode | 980um | 4268 | |
| 17.37mm piston o-ring seal | Cable Seal | 2 | SP11M-E-150-2TPT/4TP/2-CAT6/TZ26/SMFO-410-16 | 5594 | ||||
| 25.3mm piston o-ring seal | Cable Seal | 2 fibers+1 pair #18+9 pair #28 | SP16S-E-150-1/9/2-TP18/TSP28/SMFO-48-48 | 2 | single mode | #18 & #28 | 4893 | |
| 25.3mm piston o-ring seal | Cable Seal | 2 plus 2 #18 + 8 #28 | SP16-E-150-2/2/8-SMF28/FEP18/TSP28-881/461/101-18 | 2 | SMF28e | 18 28 | 4607 | |
| 0.656″ piston o-ring | connector | 3 | SP13-E-150-2/1-E20/FO-#16P-36 | 1 | fo | 2 | 20 | 2947 |
| ½” OD piston o-ring | cable seal 2500 psi | 3 | SP8M-E-150-2TP/2TP/2-CAT6/TZ26/SMFO-76-12 | Cat6, 2TP #26, 3 SM fibers | sm | 5377 | ||
| ½” o-ring face seal | cable seal | 3 | SP8/128-E-200-1/2-TE24/FO-2-2m | 1 | 24 | 2 | fo | 2625 |
| 16.13mm o-ring face seal | cable seal | 2 plus 2 #18 | VS16M-Ti-150-2/2-MPPE18/SMFO-800/1600mm-500/1600mm | 1 | single | 1 | multi | 4597 |
| ½” o-ring face seal | cable seal | 3 | VS8-SS-150-3-100/140u-.5M-.5M | 3 | multi mode | 4352 | ||
| ½” o-ring face seal | cable seal | 3 | SP8H-3-150-3-FO-0.5-0.5m | 3 | Single mode | 1991 | ||
| 14.17mm piston o-ring | cable seal | 4 | SP9/128-E-200-4-SMF28-144-96 | 4 | Single mode | 3357 | ||
| 14.17mm piston o-ring | ps | 3 | SP9/128-E-200-3-SMF28-96-96 | 3 | sm | 3267 | ||
| ½” o-ring face seal | SMF28 | 3 | VS8-AL-150-3-SMF28E-12-12 FC/APC | 3 | Single Mode | 3806 | ||
| ½” o-ring face seal | cable seal | 3 | VS8-AL-150-3-SMF28E-2-1m FC | 3 | Single Mode | 3525 | ||
| ½” o-ring face seal | cable seal | 3 | VS8-AL-150-3-FOSMF28-6-2.3 LC/UPC | 3 | Single mode | 2253 | ||
| ½” o-ring face seal | cable seal | 3 | VS8-SS-150-3-SMFO-48-48 | 3 | Single Mode | 1955 | ||
| ½” o-ring face seal | cable seal | 3 | VS8-AL-150-3-SMF28E-2-1m | 3 | single mode ST | 3570 | ||
| ½” o-ring face seal | cable seal | 3 | VS8-SS-80-3-FO-6-6 | 3 | multimode | 2271-1 | ||
| 17.37mm piston o-rings | Cable Seal | 4 | SP11M-E-150-4-SMFO-18T-104-18T DOUBLE SEA | 4 | single mode | 5651 | ||
| 1¼” o-ring face seal | cable seal | 4 | VS18-SS-150-1-MMFO/PP24-240T-24 | 4 | Multimode | 4780 | ||
| 1″ o-ring face seal | cable seal | 4 | VS15-SS-150-4-400umFO ST-2m-1m | 4 | Multimode | 3805 | ||
| Custom 80mm flange | cable seal | 4 | FL80-SS-150-4-MMFO-338-278 ST | 4 | Multimode | 1442 | ||
| ¾” o-ring face seal | cable seal | 2 | VS12L-SS-150-2/4-SM/MMFO-48-19 FC/UPC | 4 | Multimode | 4 | single mode | 3240 |
| 5.38mm piston o-ring | cable seal | 6 | SP5X-E-200-3/3-PISMFO/ACSMFO-100-100 10k psi | 3 | single mode | 3 | single mode | 5604 |
| 1-¼” o-ring face seal | cable seal | 6 | VS18-SS-150-6- FO CABLE-23-14 | 1 | single mode | 5 | mult-imode | 3836 |
| ¾” o-ring face seal | cable seal | 6 | VS12L-SS-150-6-SMFOPM-48-192 | 6 | Single mode FC/APC | 3239 | ||
| ½” o-ring face seal | cable seal | 4 | SP8H-E-150-4-SMFO-50-50cm, single mode | 4 | single mode | 2146 | ||
| 14mm piston seal | cable seal | 4 | SP9/128-E-200-4-MCSMFO-144-10k psi | 4 | Single mode | 5488 | ||
| ½” piston 0-ring | cable seal | 5 | SP8H-E-150-5-SMF28-1000-1000M | 5 | Single mode | 2953 | ||
| ¾” piston o-ring | cable seal | 5 | SPF12-E-80-4/1-PC20/MMFOST-12-12 | 4 | 20 | 1 | multimode | 2649 |
| 25,25mm piston o-ring face seal | cable seal | 3 | SP16S-E-150-2/2/2-TP16/TP18/SMFO-24-24 | 8 | 18 | 3 | single mode | 5701 |
| 25.25mm piston o-ring face seal | cable seal | 5 | SP16S-E-150-2/5/5-TP22/TSP28/SMFO-24-24 | 22 & 28 | SM | 5 | 5532 | |
| ½” o-ring face seal | cable seal | 5 | VS8N-200-5-SMF28E-1000-2000mm Kapton fiber | 5 | Single mode | 4532 | ||
| ½” o-ring face seal | cable seal | 5 | VS8N-SS-150-5-SMF28-1000-1000MM | 5 | Single mode | 2905 | ||
| ½” o-ring face seal | cable seal | 5 | VS8N-SS-150-5-100/140u-.5-.5m Kapton polyimide | 5 | multi mode | 4518 | ||
| 6,25mm piston o-ring seal | cable seal | 6 | SP4X-E-150-3/3-PMSMFO/PMMMFO-79-7924 | Panda polarizing fiber cables | sm | mm | 5293 | |
| 14.7mm piston o-rings | cable seal | 6 | SP9/128-E-200-6-SMF28-240-96 | 6 | SMF28e | 5530 | ||
| 1″ NPT | cable seal | PT16-SS-150-7/7/2-FIBER/TE22/TE18-24-24 | 7 | Multimode | 9 | 18 | 4170 | |
| ¾” SAE | cable seal | 10 | SO12L-SS-200-10-SMFO-2-2m | 10 | single mode | tubing | 3214 | |
| 2¾” Conflat flange | cable seal | 8 | CF275-SS-150-8-FO50/125-500-500mm FCPC | 8 | multimode | 2290 | ||
| ½” o-ring face seal | cable seal | 8 | VS12-SS-80-4/4-FOP/600UM-30-12 | 4 | polarizing | 4 | mulitmode | 2183 |
| ½” o-ring face seal | cable seal | 8 | VS8-AL-150-4/4-SMF28E/INFINICOR300-1-3m ST | 4 | INFINICOR 00 | 4 | single mode | 3571 |
| 3/4″ mNPT | cable seal | 10 | PT12-SS-150-10-1000um FO-72-144 | 1 | multimode | 5087 | ||
| 1¼” o-ring face seal | cable seal | 10 | VS18-SS-150-10-1000umFO-240-60 | 10 | multimode | 3815 | ||
| ⅜” piston o-ring seal | cable | 12 | SP6L-150-12SMFO-18-18 | 12 | SMF28e | 4547 | ||
| 2¾” conflat flange | cable seal | 12 | CF275-SS-150-12-MM85-20-12 | 12 | multimode | 3477 | ||
| ¾” SAE | cable seal | 12 | SO12LX-SS-150-6/6-SM/MM-374-19 | 6 | single mode | 6 | multimode | 2068-1 |
| o-ring face seal custom | cable seal hermetic | 12 | SP38/19-SS-150-12-MMFO-196-196 | 12 | multimode | 4945 | ||
| 2¾” o-ring face seal | cable seal | 12 plus various electrical | VS44-SS-150-2/4/4/2/2-TSP16/3TSP22/4TPS24/7TP24/6MMFO-480-240 | MM | 4860 | |||
| ¾” o-ring face seal | cable seal | 13 | VS12L-SS-80-5/9-SM/MM-3m-3m | 5 | single mode | 8 | multimode | 1959 |
| ¾” SAE | cable seal | 13 | SO12L-SS-200-13-SMFO-2-1.7m | 13 | Single mode | 3504 | ||
| 1″ o-ring face seal | cable seal | 16 | VS15L-SS-150-16-SMF28E-48-48 | 16 | single mode | 3323 | ||
| M16 o-ring face seal | cable seal | 22 | VSM16-Ti-150-2/20-MPPE18/SMFO-1600mm-1000/1500mm | 2 | 20 | 20 | fiber | 4963 |
| o-ring face seal | cable seal | 20 | VSM22-AL-150-2/20-MPPE18/SMFO-1600mm-1000/1500mm | 20 | single mode | 2 | 18 | 4676 |
| 1″ o-ring face seal | SMF28e LC APC | 24 | VS15L-SS-150-24-SMF28E-120-120mm LC APC | 24 | single | 4589 | ||
| 1″ o-ring face seal | cable | 24 | VS15L-SS-150-24-SMF28E-48-48 | 24 | SMF28e | 4434 | ||
| Laser EB weld AL | cable seal | 24 | FL9/6-AL-150-2-12SMFO-33-33 SMF28e | 24 | single mode | 5017 | ||
| 1″ o-ring face seal | cable seal | 30 | VS15L-SS-150-20-SMF28E-48-48 | 30 | single mode | 3591 | ||
| 1″ o-ring face seal | PTFE | 30 | VS15L-SS-150-8/22-780nm/1550nm FC/APC | 8 | 780nm | 22 | 1550nm | 4318 |
| 1 1/4″ o-ring face seal | cable seal | 40 | VS18-SS-150-40-MMFO-144-144 PMMA Eska | mm | 1mm | 5268 | ||
| 1 1/4″ o-ring face seal | cable seal | 48 | VS18-SS-150-48-MMFO-236-118 | 50/125u Draka | mm | 5272 | ||
| laser weld electron beam | ribbon cable seal | 48 | FL9/6-AL-150-4-12SMFO-33-33 | 48 | single mode | 4626 | ||
| laser weld | cable seal | 48 | FL8/5-AL-150-4-12SMFO-33-33 | 48 | single mode | 4490 | ||
| 1¼” o-ring face seal | cable seal | 48 | VS18-SS-150-48-MMFO-3M-1M | 48 | Multimode | 4529 | ||
| 1″ o-ring face seal | cable seal | 48 | VS15S-AL-80-48-100/125FO-60-60 | 48 | Multimode | 2342 |
PAVE 密封光纤电缆密封 隔板连接器
密封光纤电缆密封和隔板连接器，PAVE密封光纤电缆密封是双向的，可以双向密封压力和真空。对于超过300 psi（20 bar）的压力，如果改变图纸上显示的压力方向，请与销售工程师联系。 任何类型的商业或军用类型的绝缘或裸露密封光纤线或带护套光缆，无论是单模如SMF28e还是大多数多模类型，都可以作为气密、气体密封、液体密封、真空密封的隔板贯穿密封，适用于低压和高压以及真空电气用途，适用于压力、真空或双向压力。工作温度可以根据设计和材料从-200℃到200℃或根据客户的要求进行调整。所有PAVE密封都是气密的，无论图纸上显示的泄漏测试如何，都能通过非常低的氦气泄漏测试，这些测试也可以根据客户要求进行修改。在大多数情况下，密封件还能够承受比图纸上显示的更高压力，特殊设计能够密封高达10,000至25,000 psi的压力！
