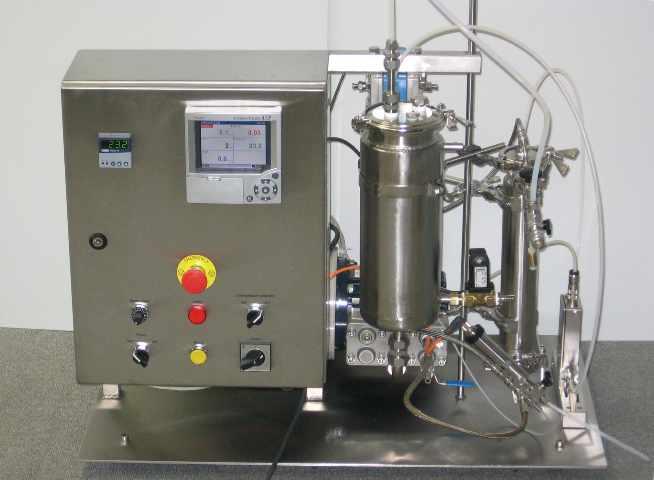

PS Prozesstechnik GmbH MaxiMem bench scale membrane filtration unit 过滤器 MaxiMem system

The standard MaxiMem membrane filtration unit can operate at up to 40 bar and 60°C for many

MF/UF/NF/RO applications. The unit can be used with different types of membrane modules: a flat

channel module, tubular ceramic modules, small spiral wound element modules or customer

membrane modules. The unit has a stainless steel control cabinet with on/off switch, frequency

converter setting for the feed pump, emergency button, pressure high/low reset button and a PID

controller with display for electronic temperature control and an electronic data recorder and

display for all electronically measured operating parameters.

· Feed pump, max 40 bar. Feed flow up to 660 l/h. With frequency converter for adjustment of

cross flow velocity

· Stainless steel feed vessel with 2.5l or 5l volume

· 1 electronic pressure sensor 0 - 40 bar

· 1 manual spring loaded pressure control valve

· All valves for operation and emptying

· PT100 temperature sensor

· PID controller for temperature, operating a magnetic valve which controls flow of cooling or

heating liquid from any cooling or heating liquid source.

· Electronic data recorder for pressure, temperature, feed flow (via pump speed), permeate flow

(optional), pH (optional), conductivity (optional). Display as numbers or trends over time on

LCD display and storage of data. Can be transferred by SD card or USB stick into PC and

Excel. Can be connected to Ethernet for remote view.

· Frame: stainless steel 304 or equivalent. Footprint 0.50 x 0.85m, height 0.80m

· Product contacting metal parts stainless steel 316L or equivalent



· Ready to run and tested uniPurpose:

The standard MaxiMem membrane filtration unit can operate at up to 40 bar and 60°C for many

MF/UF/NF/RO applications. The unit can be used with different types of membrane modules: a flat

channel module, tubular ceramic modules, small spiral wound element modules or customer

membrane modules. The unit has a stainless steel control cabinet with on/off switch, frequency

converter setting for the feed pump, emergency button, pressure high/low reset button and a PID

controller with display for electronic temperature control and an electronic data recorder and

display for all electronically measured operating parameters.

MaxiMem Membrane unit including:

· Feed pump, max 40 bar. Feed flow up to 660 l/h. With frequency converter for adjustment of

cross flow velocity

· Stainless steel feed vessel with 2.5l or 5l volume

· 1 electronic pressure sensor 0 - 40 bar

· 1 manual spring loaded pressure control valve

· All valves for operation and emptying

· PT100 temperature sensor

· PID controller for temperature, operating a magnetic valve which controls flow of cooling or

heating liquid from any cooling or heating liquid source.

· Electronic data recorder for pressure, temperature, feed flow (via pump speed), permeate flow

(optional), pH (optional), conductivity (optional). Display as numbers or trends over time on

LCD display and storage of data. Can be transferred by SD card or USB stick into PC and

Excel. Can be connected to Ethernet for remote view.

· Frame: stainless steel 304 or equivalent. Footprint 0.50 x 0.85m, height 0.80m

· Product contacting metal parts stainless steel 316L or equivalent

· Operating instructions in English

· Ready to run and tested uniPurpose:
The standard MaxiMem membrane filtration unit can operate at up to 40 bar and 60°C for many
MF/UF/NF/RO applications. The unit can be used with different types of membrane modules: a flat
channel module, tubular ceramic modules, small spiral wound element modules or customer
membrane modules. The unit has a stainless steel control cabinet with on/off switch, frequency
converter setting for the feed pump, emergency button, pressure high/low reset button and a PID
controller with display for electronic temperature control and an electronic data recorder and
display for all electronically measured operating parameters.
MaxiMem Membrane unit including:
· Feed pump, max 40 bar. Feed flow up to 660 l/h. With frequency converter for adjustment of
cross flow velocity
· Stainless steel feed vessel with 2.5l or 5l volume
· 1 electronic pressure sensor 0 - 40 bar
· 1 manual spring loaded pressure control valve
· All valves for operation and emptying
· PT100 temperature sensor
· PID controller for temperature, operating a magnetic valve which controls flow of cooling or
heating liquid from any cooling or heating liquid source.
· Electronic data recorder for pressure, temperature, feed flow (via pump speed), permeate flow
(optional), pH (optional), conductivity (optional). Display as numbers or trends over time on
LCD display and storage of data. Can be transferred by SD card or USB stick into PC and
Excel. Can be connected to Ethernet for remote view.
· Frame: stainless steel 304 or equivalent. Footprint 0.50 x 0.85m, height 0.80m
· Product contacting metal parts stainless steel 316L or equivalent
· Operating instructions in English
· Ready to run and tested unit
